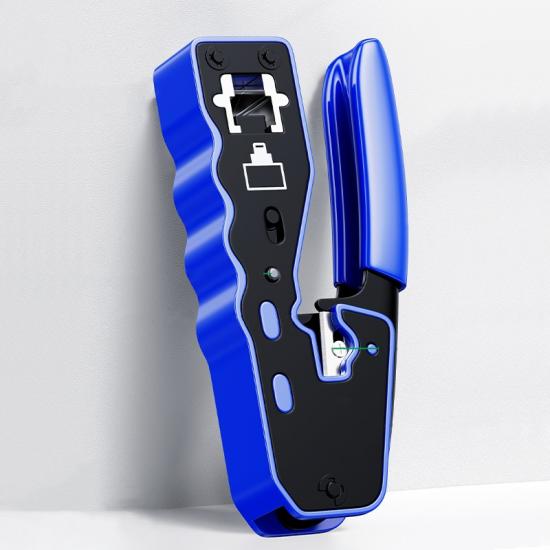

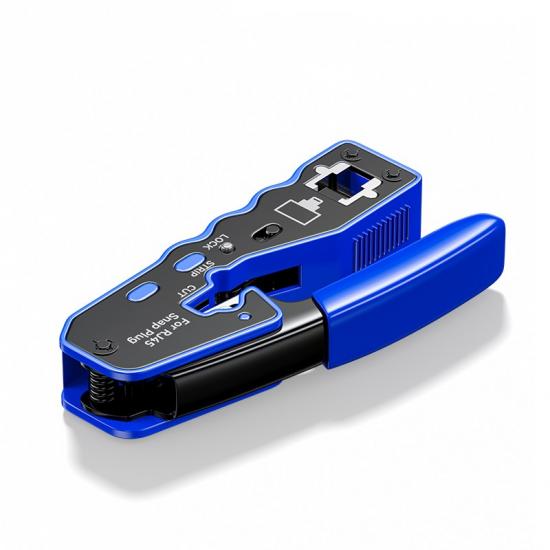

Perforated/ordinary crystal head crimping
Product Origin:
ChinaItem NO.:
DT-1048Shipping Port:
Guangzhou/ShenzhenMutifuctional Hand Tools Small Pliers 8P Crystal Head RJ45 Network Cable Cat5/6 Cutting Stripping Crimping Pliers
Ⅰ. Product Parameters
|
Product Name |
Network Cable Pliers |
|
Model |
DT-1048 |
|
Function |
Crimping crystal head |
|
Handle |
PVC anti slip handle |
|
Warranty |
1 Year |
Ⅲ. Product Description
Multifunctional network cable pliers
Crimp all crystal heads with one pliers

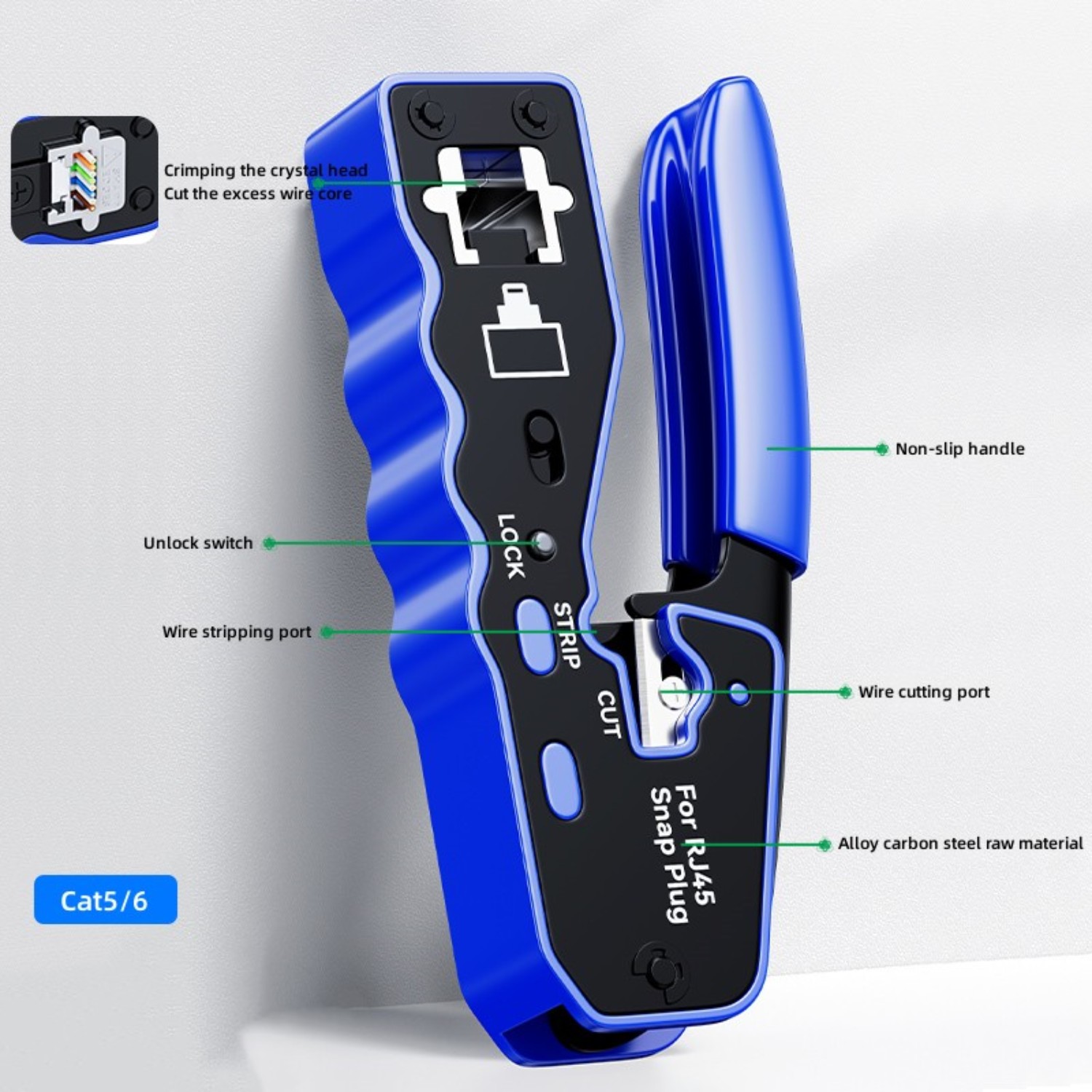

3 in 1 Crimping, Stripping, and Thread Trimming
You can easily connect your own wires with just one pliers

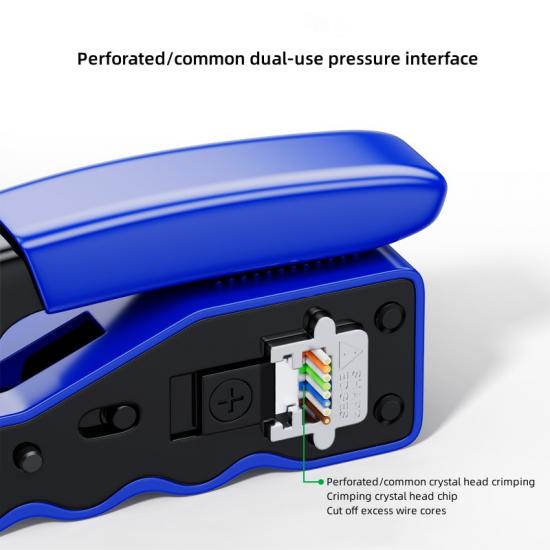

One on one precise crimping
The crystal head has precise hole positions and can be pressed into shape in one go, allowing beginners to easily and quickly handle various mesh cable production.
Network cable production process
1) Insert the Ethernet cable body into the stripping port, rotate the stripping knife, and peel off the outer layer；
2) Sort and level the wire ends according to the 568A/B connection method, and reserve an appropriate length；
3) After leveling, place the network cable into the cutting port and cut it neatly;
4) Insert the trimmed network cable into the bottom of the crystal head;
5) Insert the crystal head into the corresponding pliers and press it together;
6) Insert the network cable into the tester, and the 1-8 lights will light up sequentially to indicate normal operation.
Crystal Head Connection Standard
Peel off the outer skin of the Ethernet cable and you will see the following eight colored metal wires.
568A connection method display
Special connection method (crossover method)
Commonly used for connecting the same device, such as computer connectors and other devices.
568B connection method display
Commonly used connection methods (straight line)
Commonly used to connect different devices, such as computer connectors and other devices.
Ⅳ. Product Size
