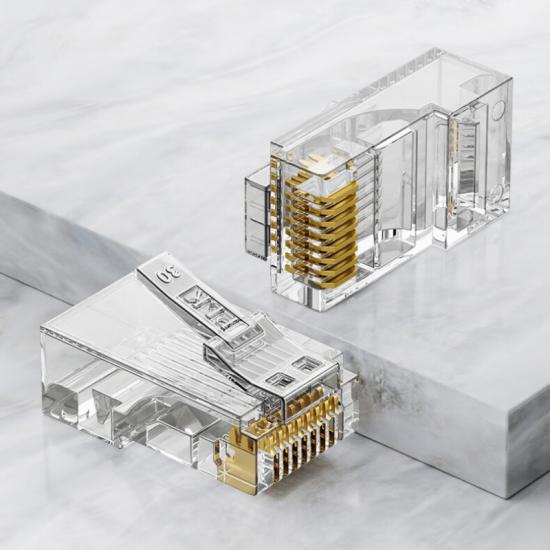

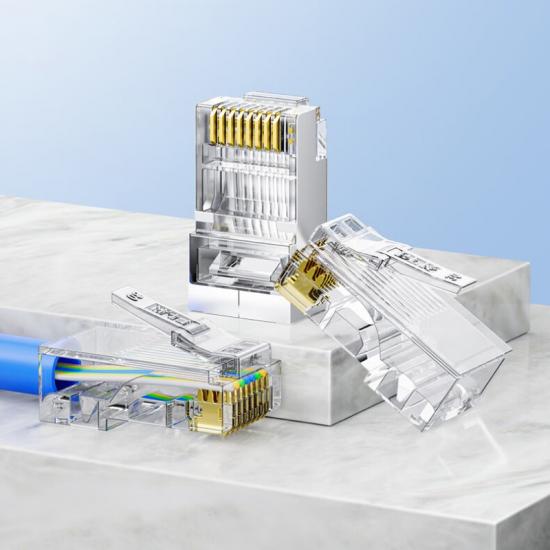

Network Plug RJ45 Gigabit Ethernet Gold Plated Wire 1.05-1.5mm CAT6 Shielded Connector 3U Crystal Head

Network Plug RJ45 Gigabit Ethernet Gold Plated Wire 1.05-1.5mm CAT6 Shielded Connector 3U Crystal Head

Ⅰ. Product Parameters

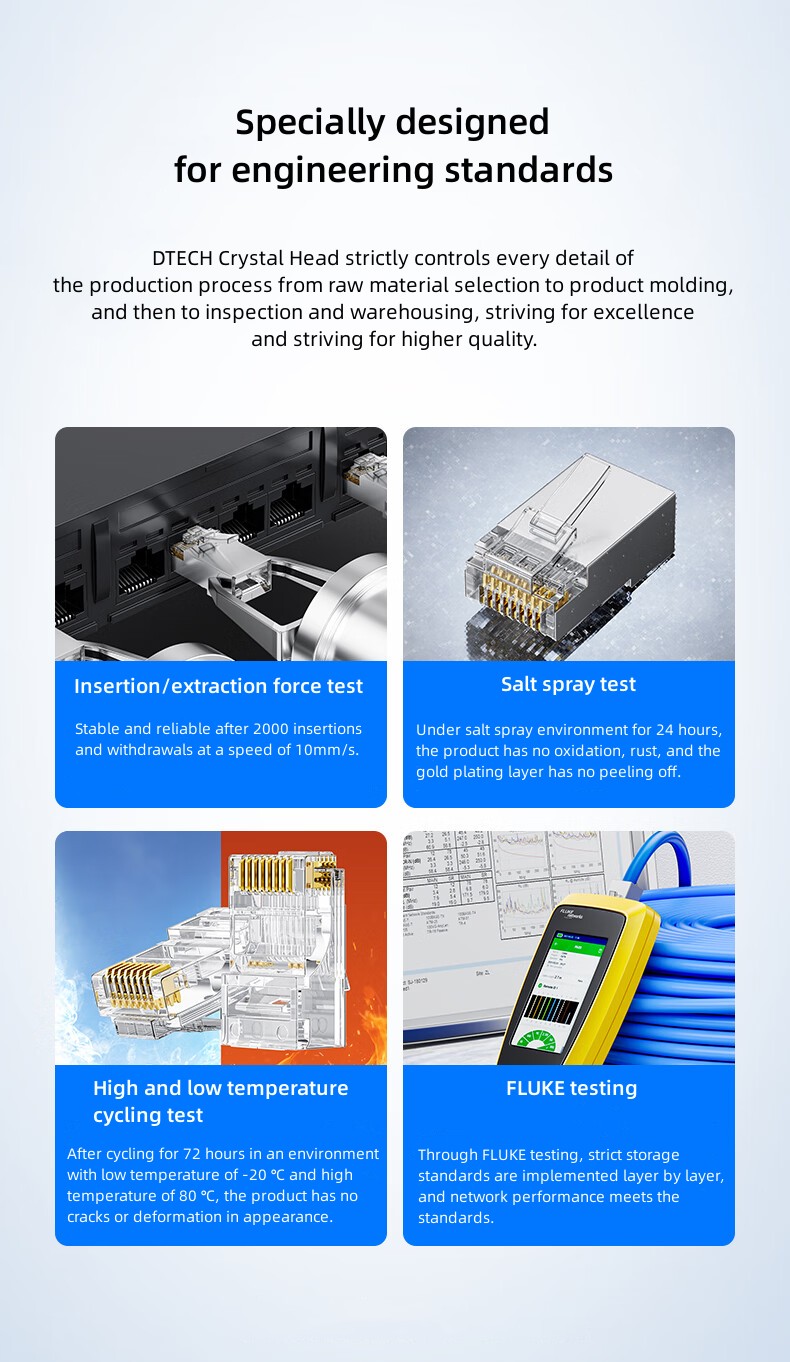

Specially designed for engineering standards
DTECH Crystal Head strictly controls every detail of the production process from raw material selection to product molding, and then to inspection and warehousing,

striving for excellence and striving for higher quality.

①Insertion/extraction force test
Stable and reliable after 2000 insertions and withdrawals at a speed of 10mm/s.
②Salt spray test
Under salt spray environment for 24 hours, the product has no oxidation, rust, and the gold plating layer has no peeling off.
③High and low temperature cycling test
After cycling for 72 hours in an environment with low temperature of -20 ℃ and high temperature of 80 ℃, the product has no cracks or deformation in appearance.
④FLUKE testing
Through FLUKE testing, strict storage standards are implemented layer by layer, and network performance meets the standards.

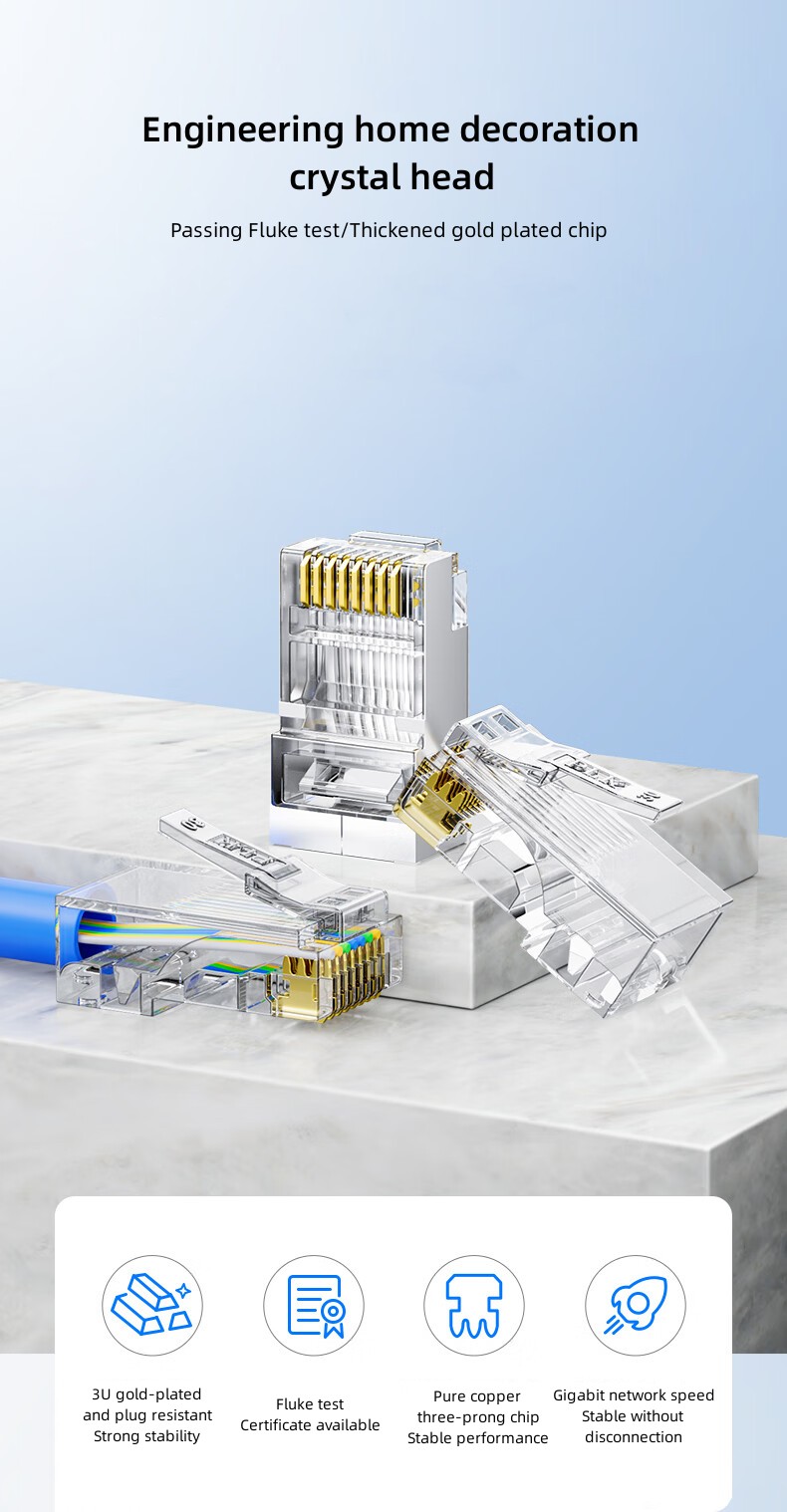

Engineering home decoration crystal head
Passing Fluke test/Thickened gold plated chip
①3U gold-plated and plug resistant
Strong stability
②Fluke test
Certificate available
③Pure copper three-prong chip
Stable performance
④Gigabit network speed
Stable without disconnection

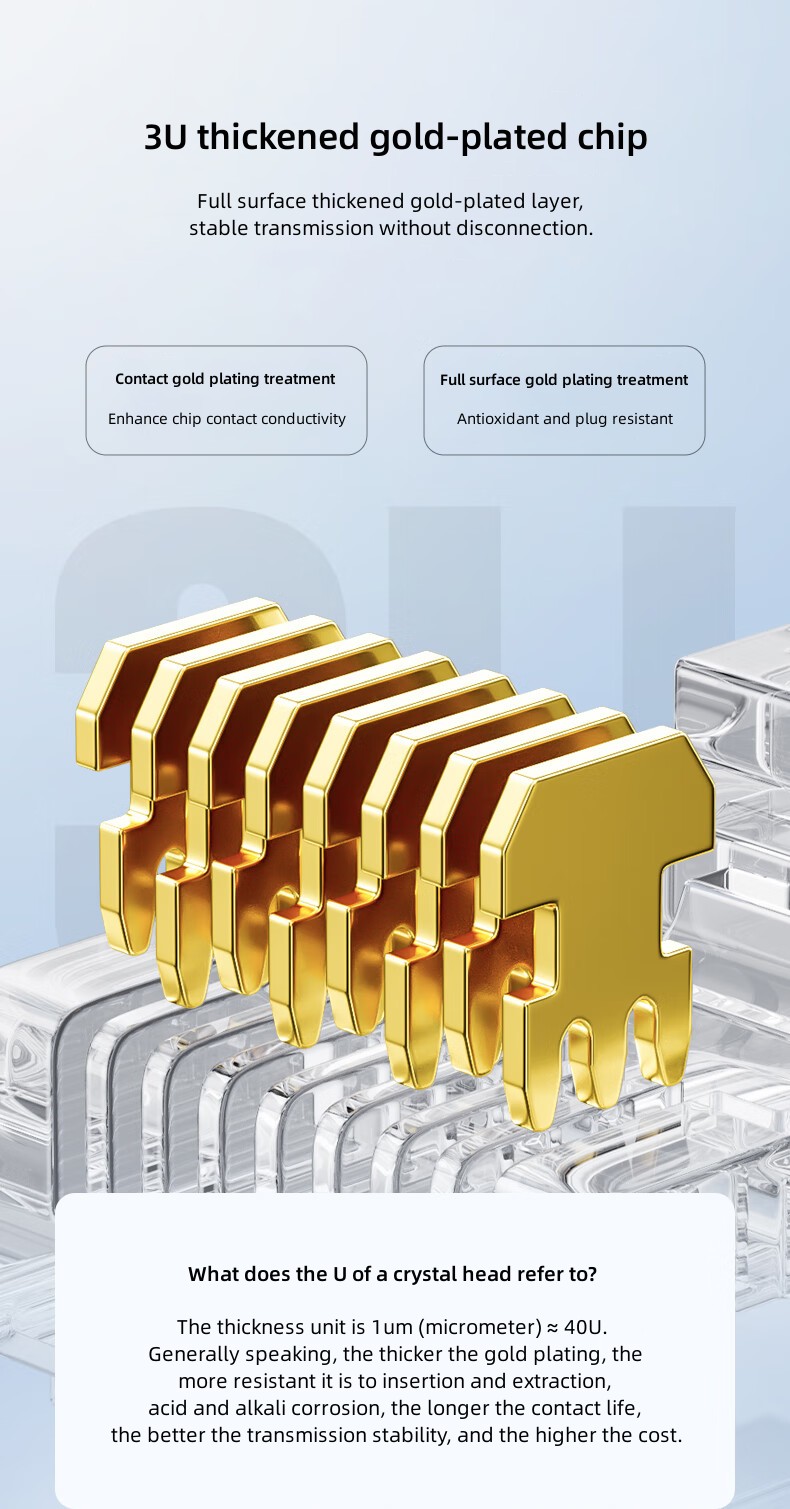

3U thickened gold-plated chip
Full surface thickened gold-plated layer, stable transmission without disconnection.
①Contact gold plating treatment
Enhance chip contact conductivity
②Full surface gold plating treatment
Antioxidant and plug resistant
What does the U of a crystal head refer to?
The thickness unit is 1um (micrometer) ≈ 40U. Generally speaking, the thicker the gold plating, the more resistant it is to insertion and extraction,

acid and alkali corrosion, the longer the contact life, the better the transmission stability, and the higher the cost.

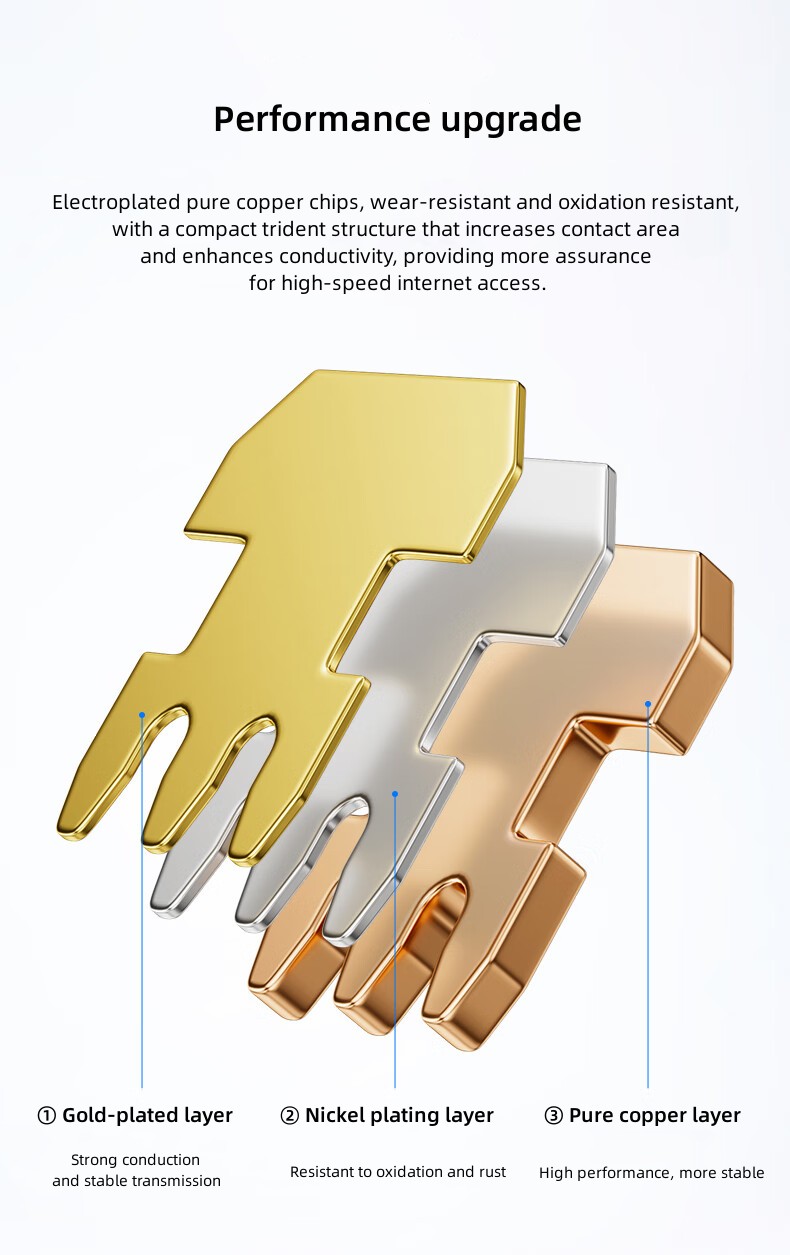

Performance upgrade
Electroplated pure copper chips, wear-resistant and oxidation resistant, with a compact trident structure that increases contact area and enhances conductivity,

providing more assurance for high-speed internet access.
① Gold-plated layer
Strong conduction and stable transmission
② Nickel plating layer
Resistant to oxidation and rust
③ Pure copper layer
High performance, more stable

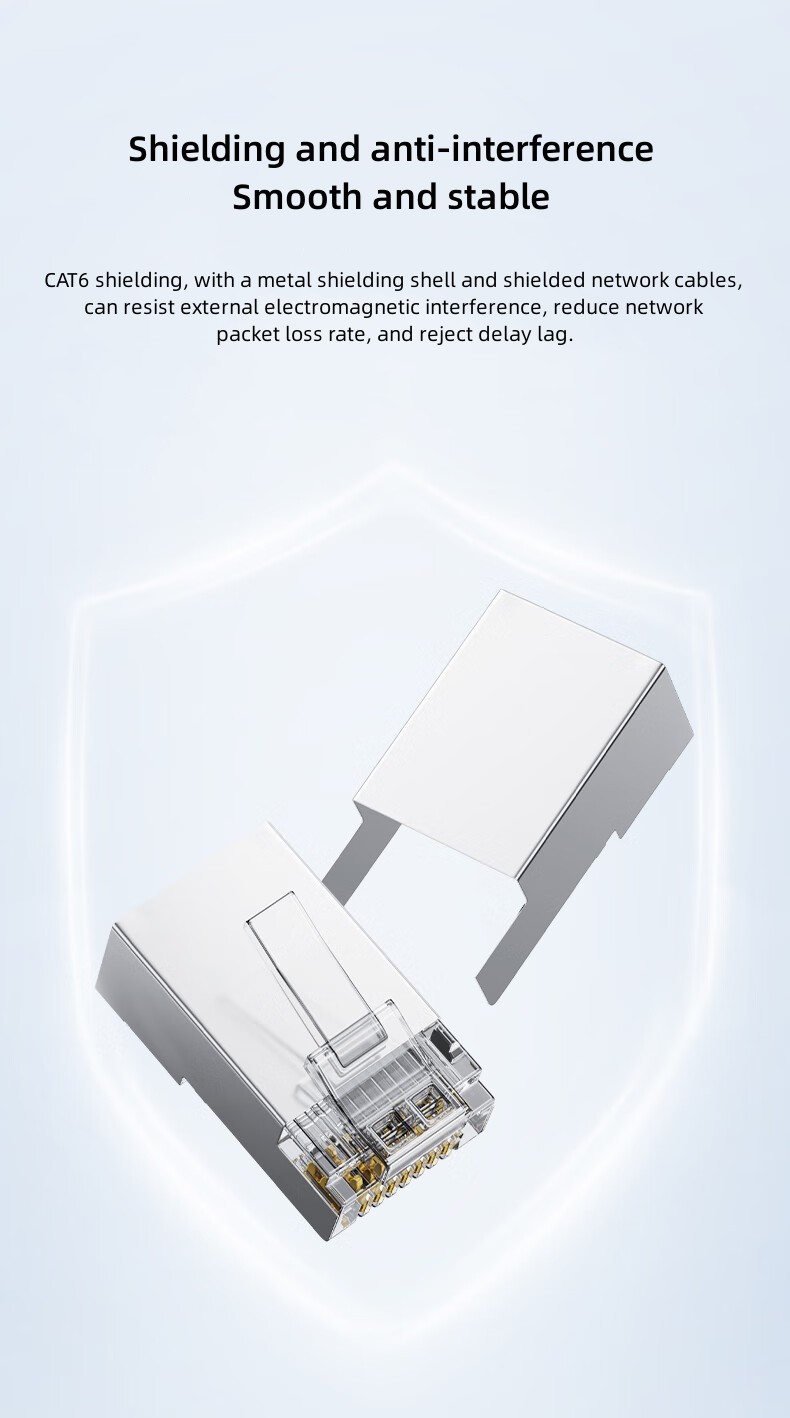

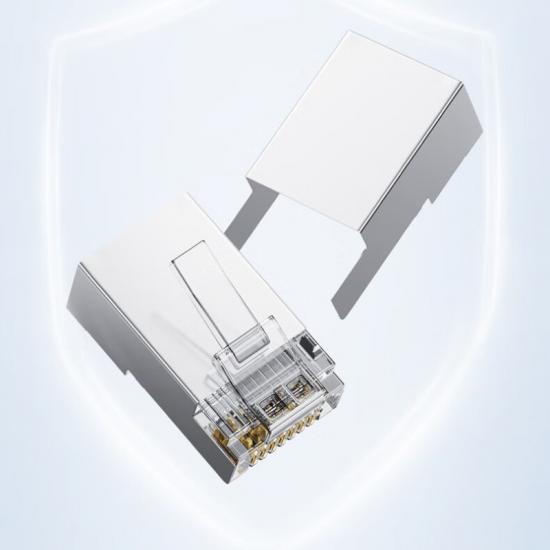

Shielding and anti-interference, smooth and stable
CAT6 shielding, with a metal shielding shell and shielded network cables, can resist external electromagnetic interference, reduce network packet loss rate, and reject delay lag.

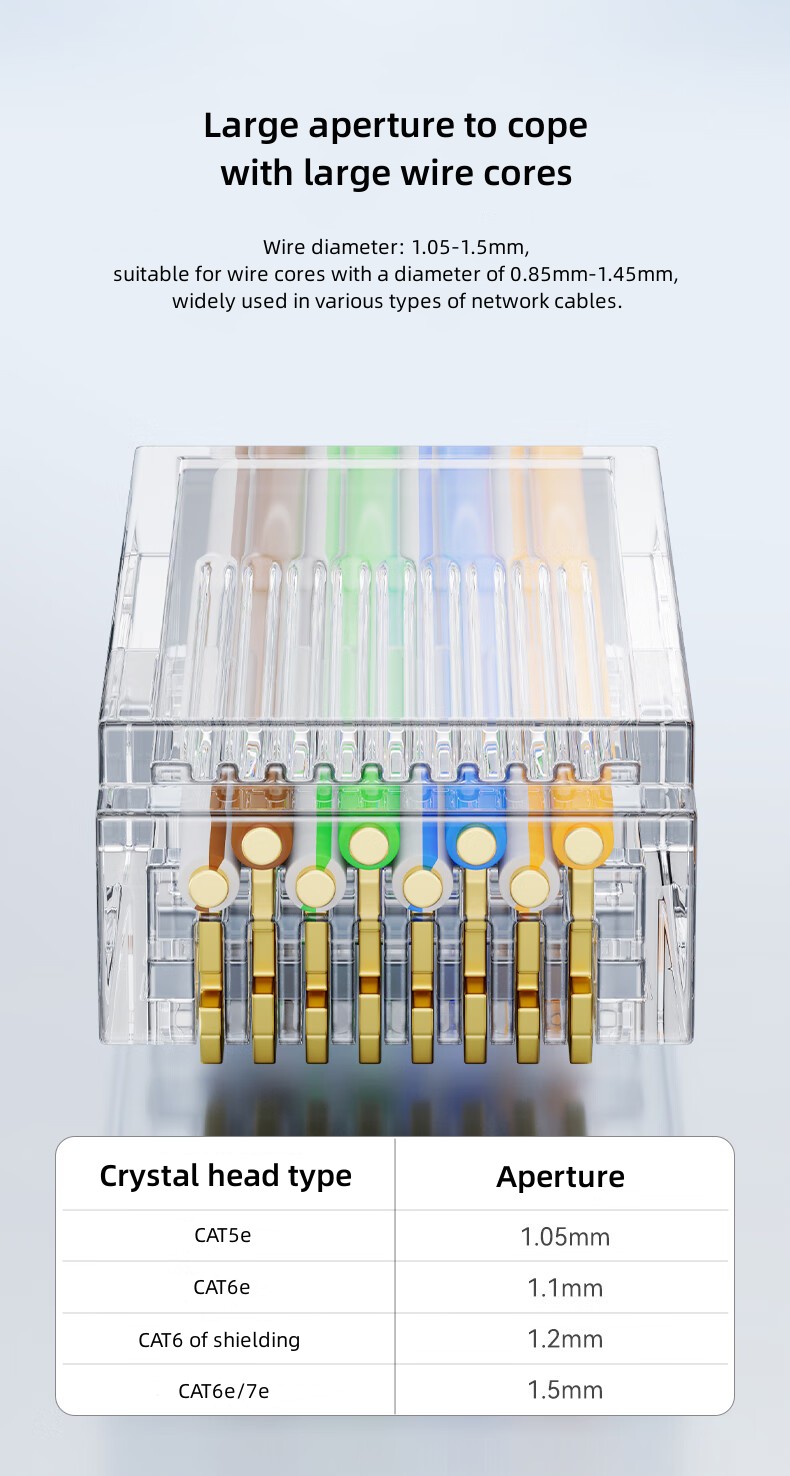

Large aperture to cope with large wire cores
Wire diameter: 1.05-1.5mm, suitable for wire cores with a diameter of 0.85mm-1.45mm, widely used in various types of network cables.

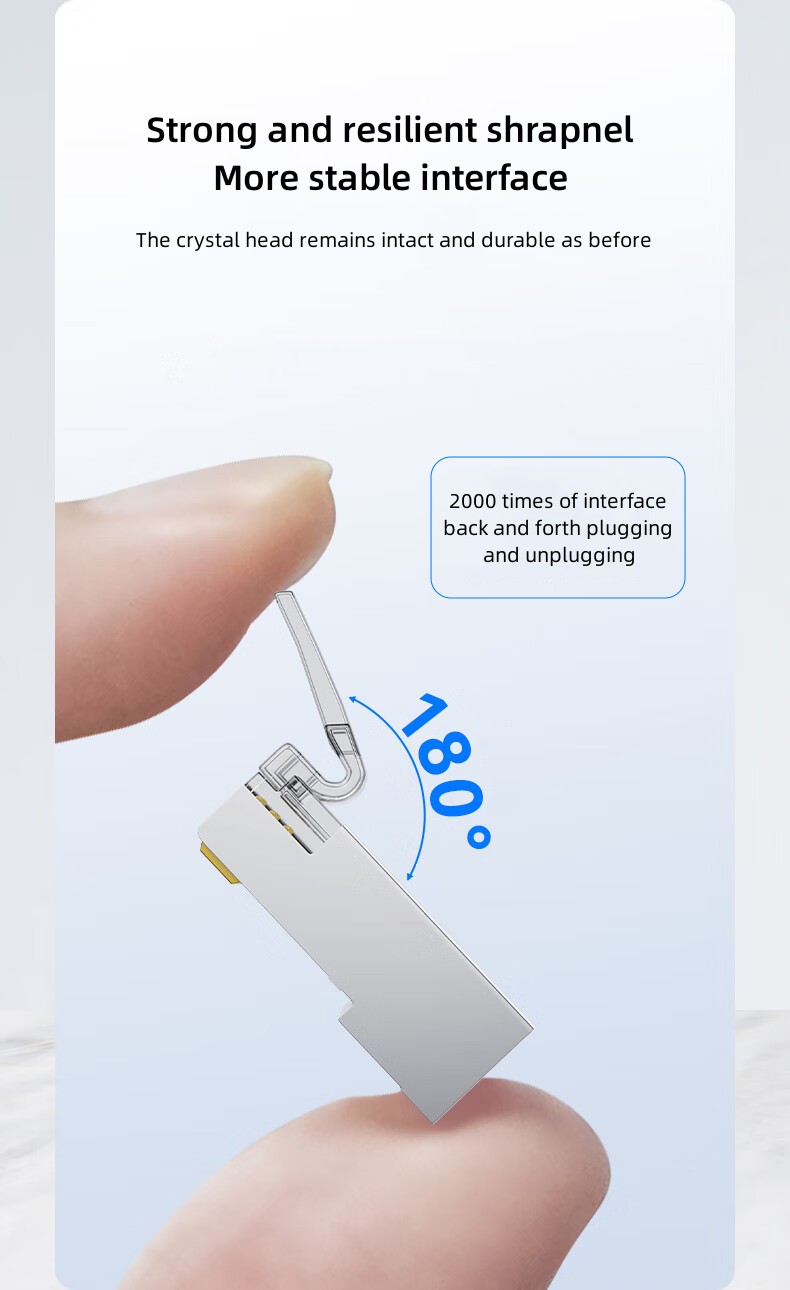

Strong and resilient shrapnel
More stable interface
The crystal head remains intact and durable as before
2000 times of interface back and forth plugging and unplugging

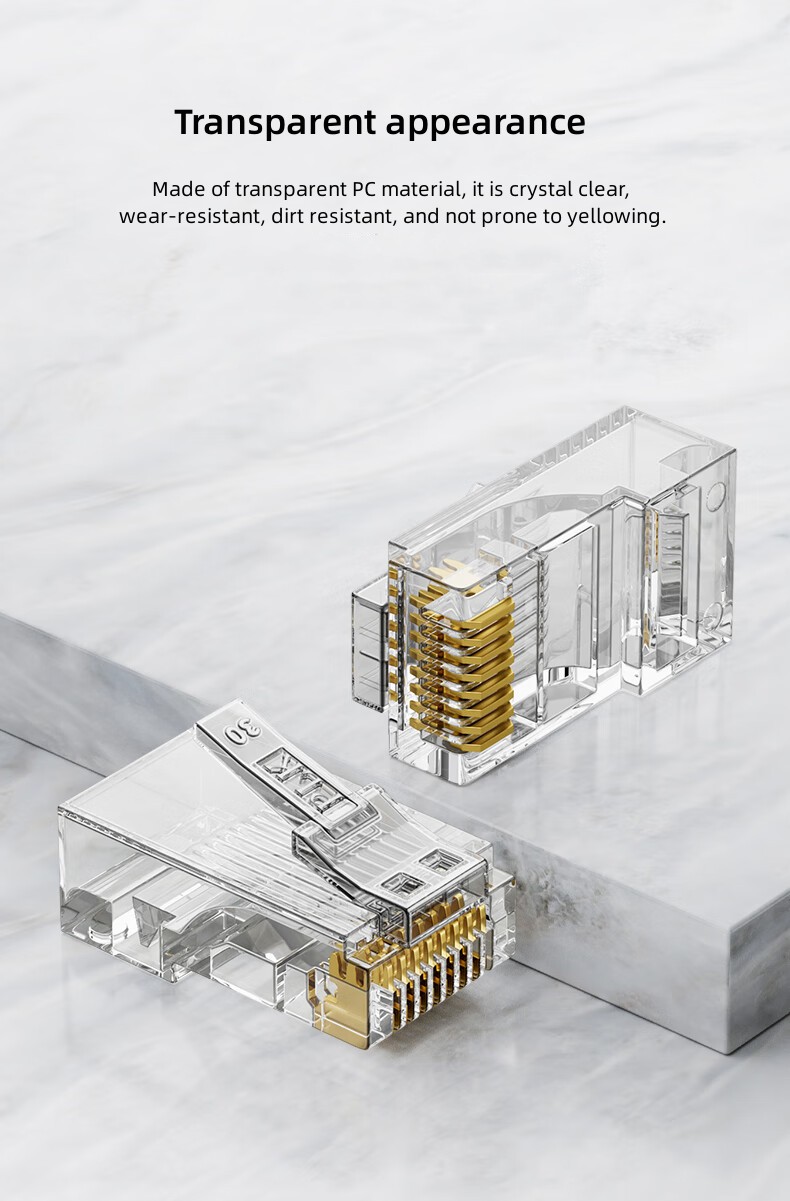

Transparent appearance
Made of transparent PC material, it is crystal clear, wear-resistant, dirt resistant, and not prone to yellowing.

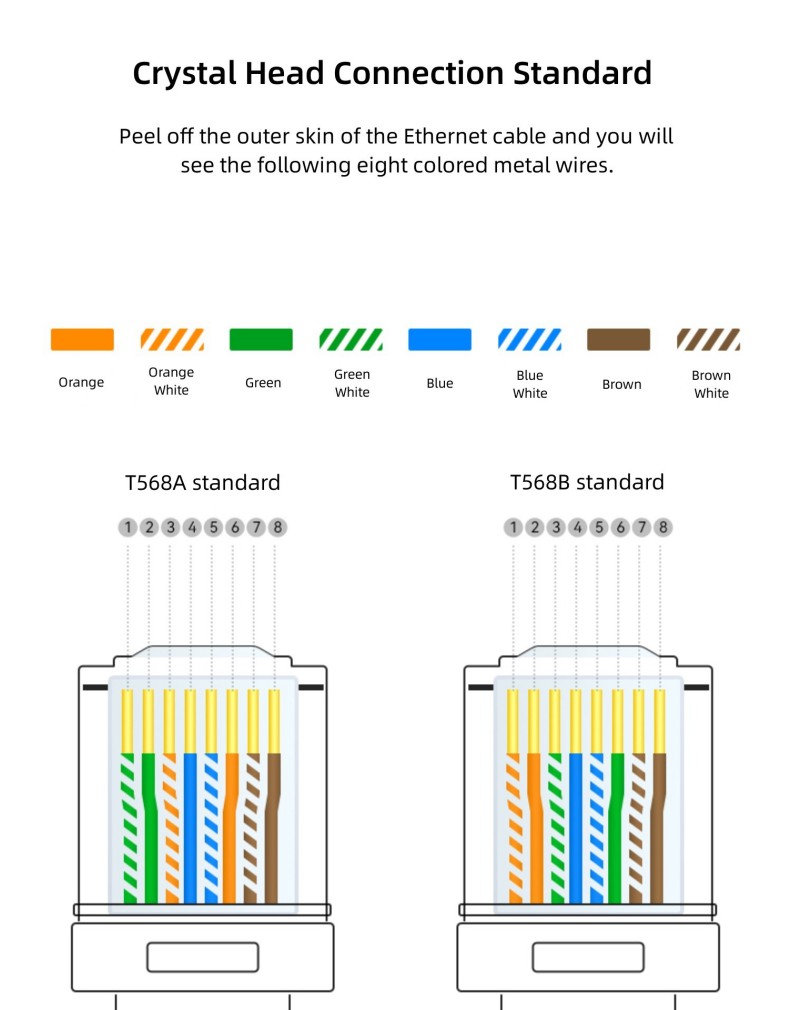

Crystal Head Connection Standard
Peel off the outer skin of the Ethernet cable and you will see the following eight colored metal wires.

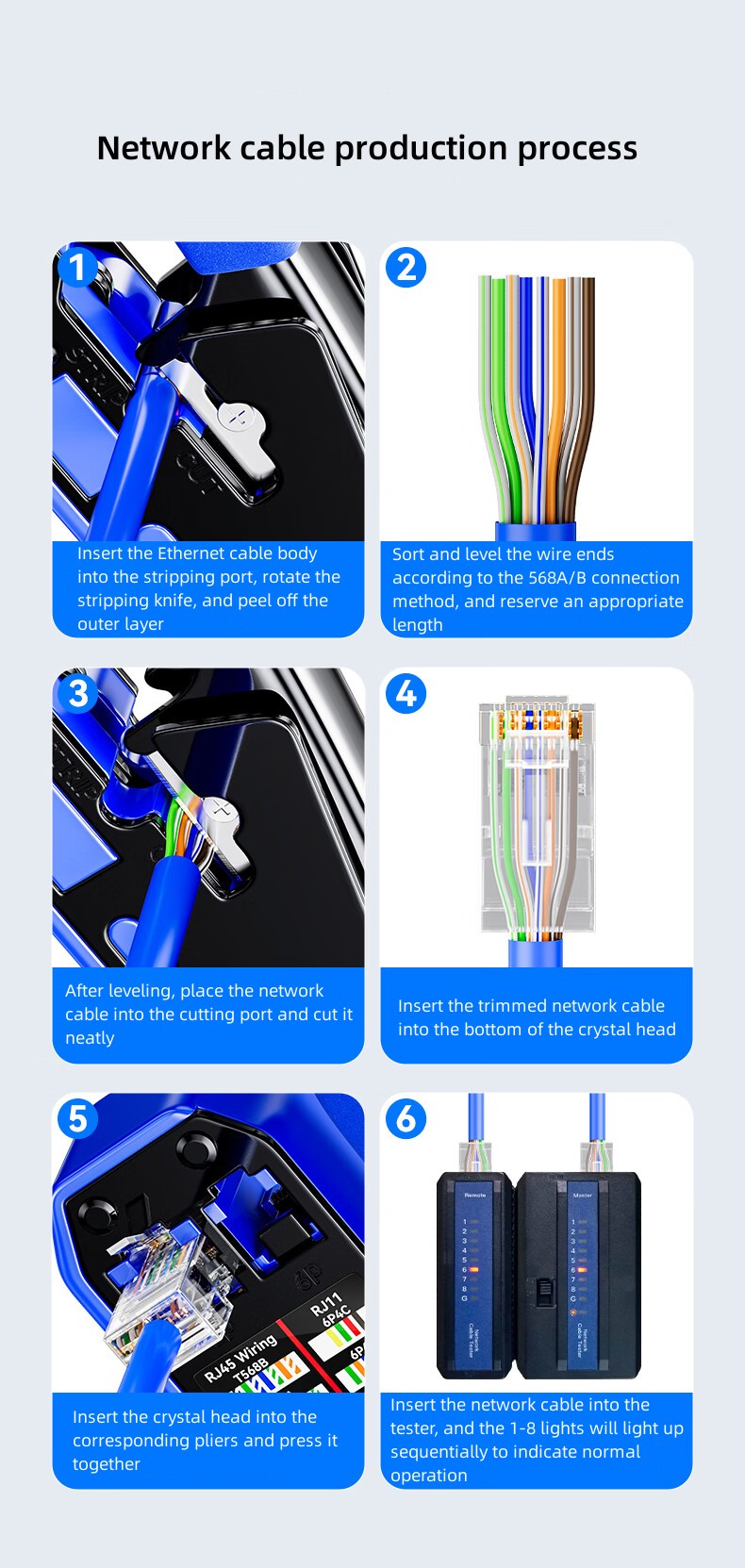

Network cable production process
1) Insert the Ethernet cable body into the stripping port, rotate the stripping knife, and peel off the outer layer；
2) Sort and level the wire ends according to the 568A/B connection method, and reserve an appropriate length；
3) After leveling, place the network cable into the cutting port and cut it neatly;
4) Insert the trimmed network cable into the bottom of the crystal head;
5) Insert the crystal head into the corresponding pliers and press it together;
6) Insert the network cable into the tester, and the 1-8 lights will light up sequentially to indicate normal operation.

Applicable scenarios
Widely used in home/company/monitoring/teaching networks/data centers/telecommunications rooms/internet cafes and other cabling systems.

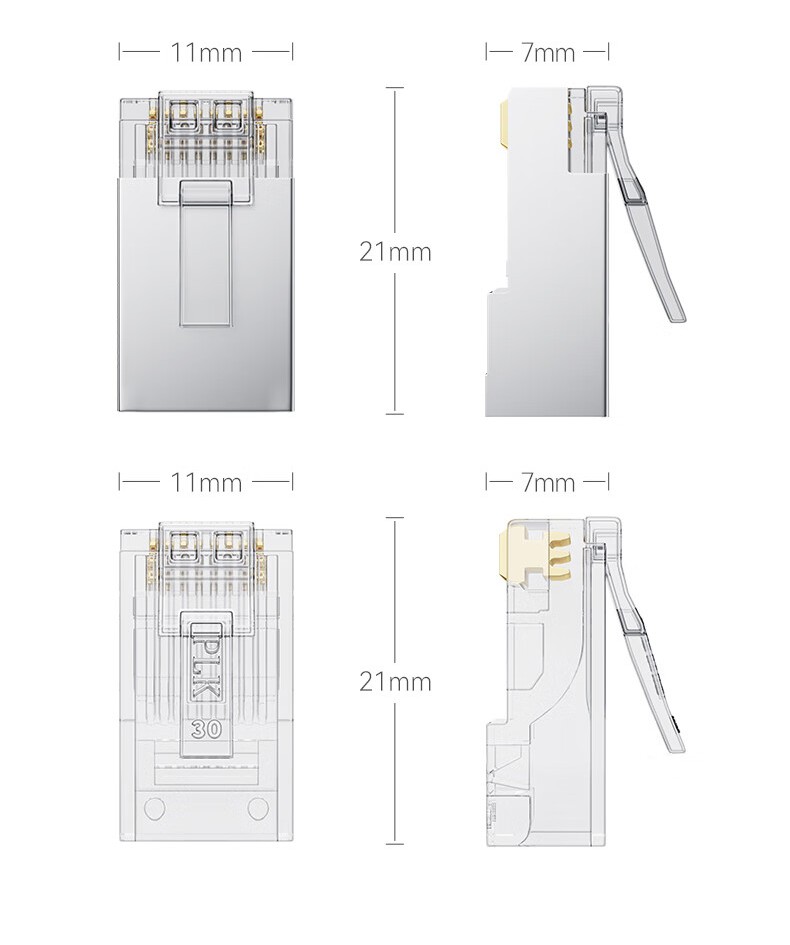

Ⅲ. Product Size
