Low smoke and halogen-free
LSZH external cover, environmentally friendly, safe and reliable
Product Origin:
ChinaBrand:
DTECHItem NO.:
DT-SC/SC 001Shipping Port:

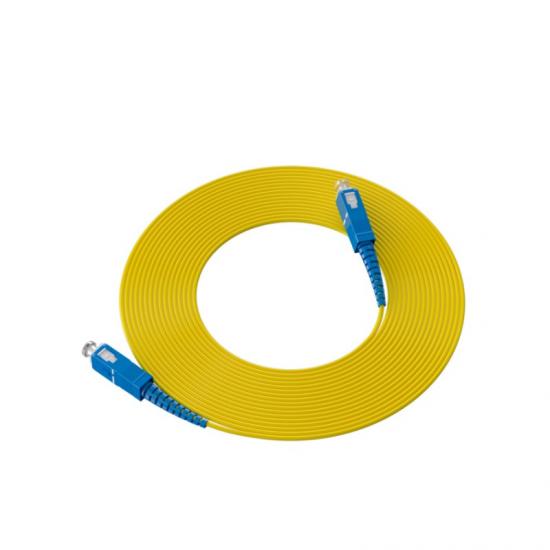

Guangzhou/ShenzhenDTECH Single Mode Patch Cord SC/UPC-SC/UPC 1 Core 3.0mm
Outdoor Fiber Optic Jumpers
Ⅰ. Product Parameters
Product Name | Fiber Optic Jumper |
Brand | DTECH |
Model | DT-SC/SC 001 |
Cable Length | 1m/2m/3m/5m/10m/15m/20m/25m/30m |
Fiber Type | Single mode single core |
Speed | 1.25G/10G/25G/40G |
Cable Diameter | 3.0mm |
Flame Retardant Level | IEC 60332-1-2 |
Material | Aramid yarn+low smoke and halogen-free (LSZH) |
Insertion Loss | Typical value 0.20dB, maximum value 0.30dB |
Return Loss | >=50dB |
Tensile Test | Tensile strength 70N |
Warranty | 1 Year |
Ⅱ. Product Description

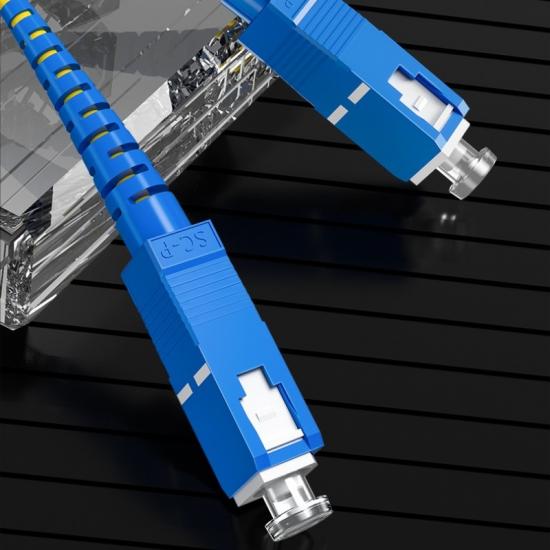

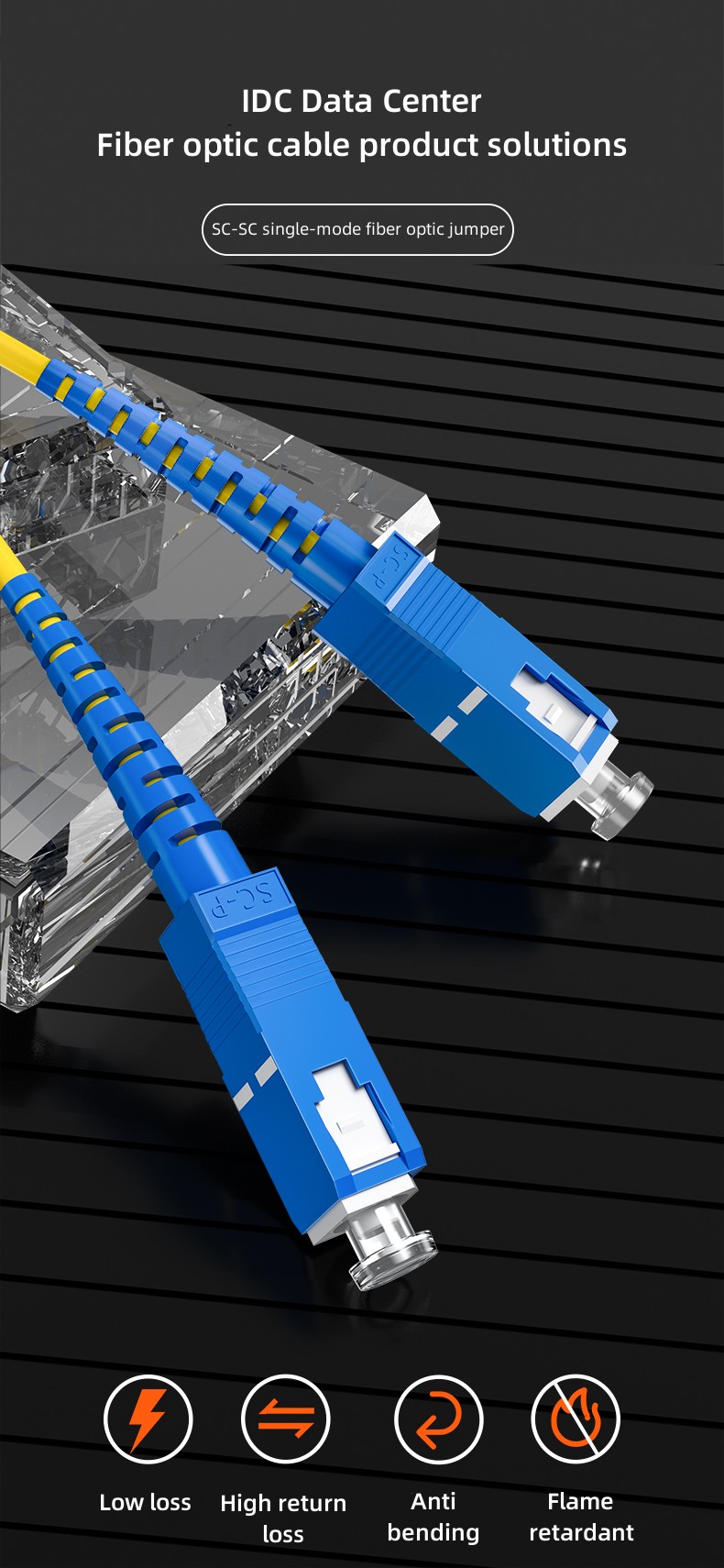

SC-SC single-mode fiber optic jumper
Using new materials and high standard production technology, we solve problems such as high attenuation, internet disconnection, and video lag.
Four-corner grinding machine, precision carving
Ensure that the center grinding offset of the optical fiber is ensured, the optical fiber surface is flawless, and the size of the end face curvature
radius and other technologies meet the standards.
Multiple tests with low insertion loss
The product has undergone high standard production technology and multiple strict tests to ensure that the insertion loss change rate is ≤ 0.28dB
and the return loss is ≥ 50dB.
Low smoke and halogen-free, ensuring data center security
Environmentally friendly low smoke and halogen-free material cover, long service life, wear-resistant and corrosion-resistant, environmentally friendly and odorless
01. Selected 94VO flame retardant raw materials, the cables meet the flame retardant requirements of IEC60332-1-2 and GB/T18380.12-2008.
02. During combustion, the dense smoke density is low, and the transmittance is as high as 86.4%, which is far lower than the low smoke requirements of IEC 61034-2.
03. The content of halogen acid gas meets the halogen-free requirements of IEC 60754-1:2011, without halogen elements, making it safer to use.
Tensile design, fiber optic connectors resistant to insertion and extraction
The SC connector of the fiber optic jumper has passed the tensile test, with an effective tensile strength of 70N (about 7kg). When tested under
a tensile strength of 70N, the change in insertion loss within 1 hour is ≤ 0.3dB.
Imported fiber core, insensitive to bending
Good mechanical performance, easy welding with low light loss, fast and stable transmission.
Secure connection, long tail protection
Integrated craftsmanship, high toughness long tail, sturdy and durable without breaking.
Dust cap protection
The joint is matched with a dust cap to prevent damage to the joint and protect the ceramic joint.
Brand new ceramic ferrule
More stable performance
Adopting brand new high-quality ceramic ferrule, data interchangeability is stable, plug-in and unplug times are high, and performance is stable and reliable.

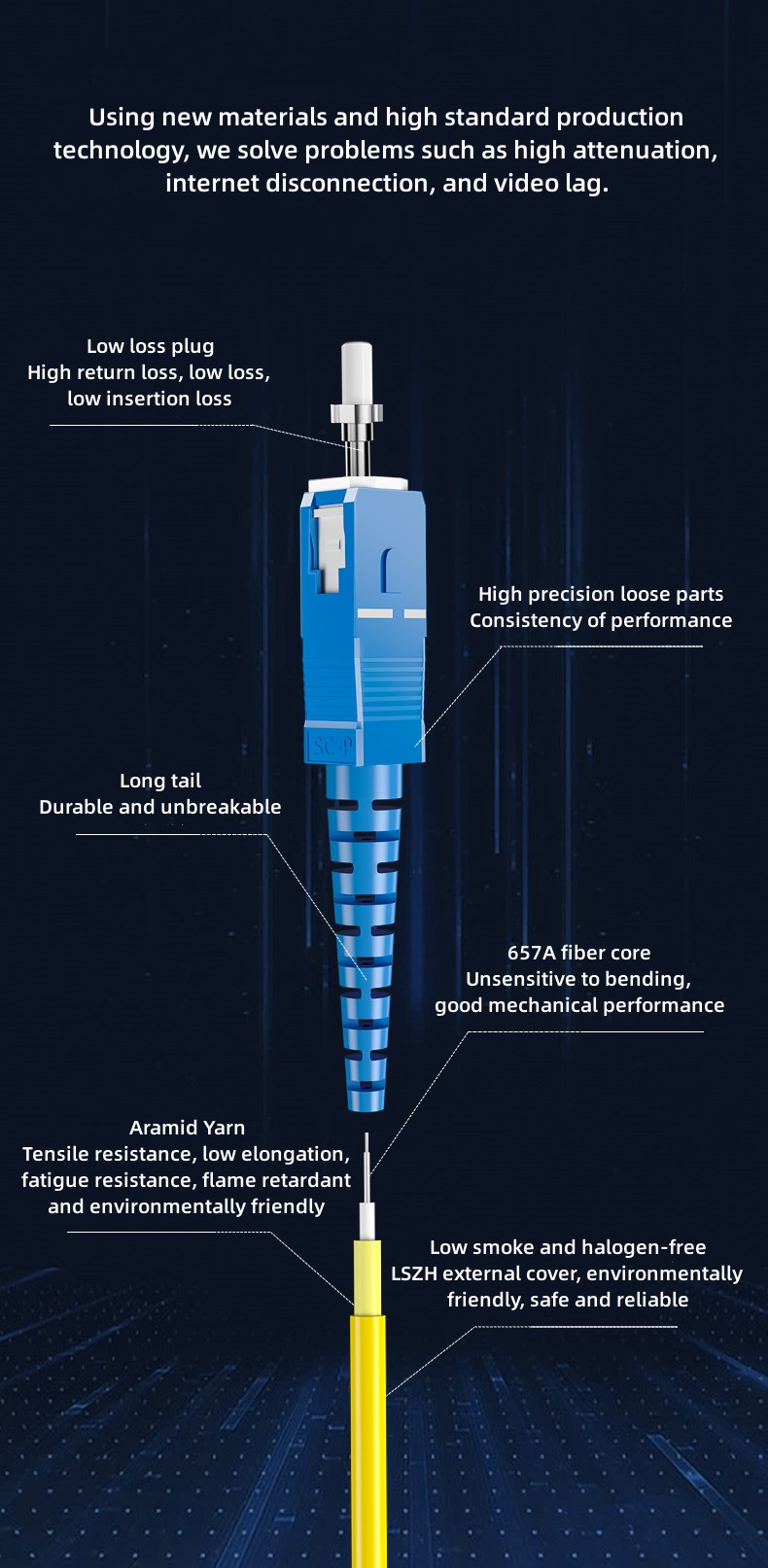

Ⅲ. Product Anatomy
Ⅳ. Application Scenario
