Made of cold-rolled steel plate material, it is more durable and sturdy to use.
Product Origin:
ChinaBrand:
DTECHItem NO.:
TB-1069Shipping Port:
Guangzhou/ShenzhenTelephone Distribution Frame Rack Mounted Telephone 19 Inch 1U
25 Port Telephone Voice Patch Panel
Ⅰ. Product Parameters
|
Product Name |
25 Ports Network Voice Telephone Patch Panel |
| Model | TB-1069 |
|
Port |
25 ports |
|
Material |
Cold rolled steel plate |
|
Application |
Engineering/Home Cabling |
|
Warranty |
1 Year |
Ⅱ. Product Description

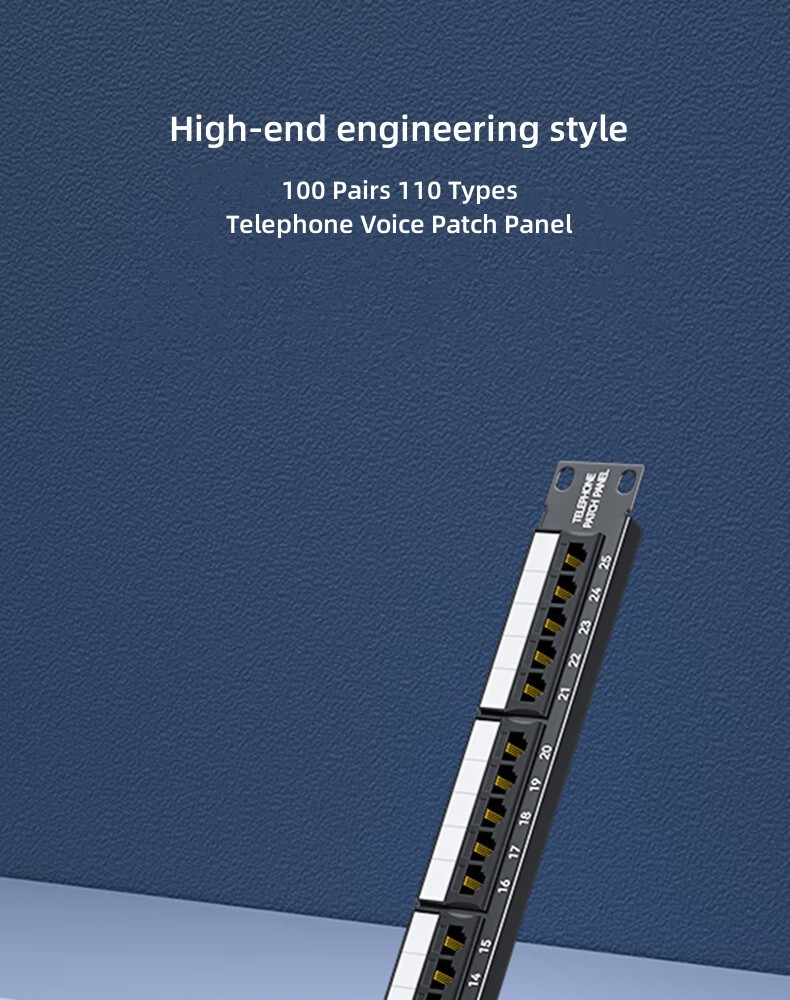

High-end engineering style
100 Pairs 110 Types
Telephone Voice Patch Panel
Clear sound
Transmission without distortion
Each network port corresponds to a computer, which facilitates cabinet management and maintenance, reduces error checking time, and improves maintenance efficiency.

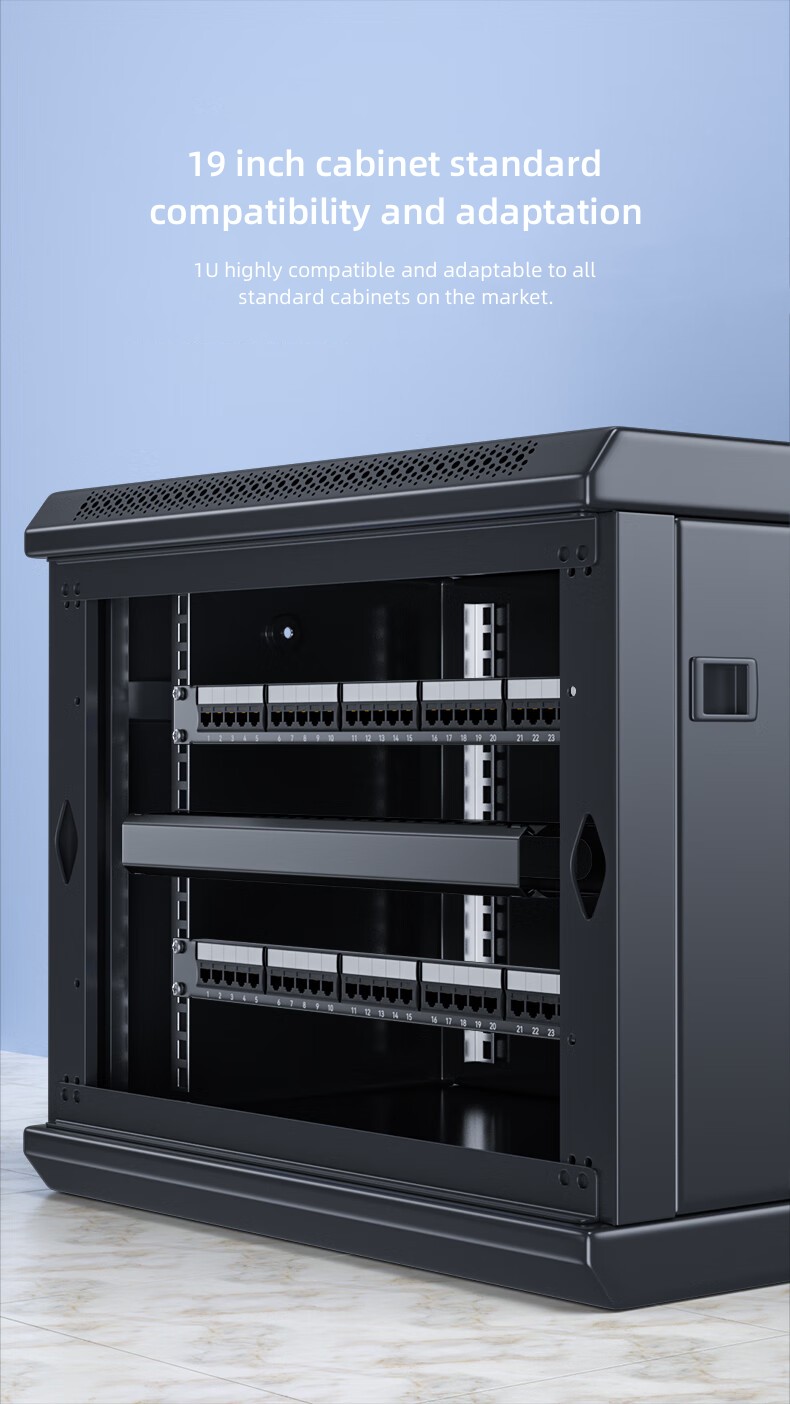

19 inch cabinet standard compatibility and adaptation
1U highly compatible and adaptable to all standard cabinets on the market.

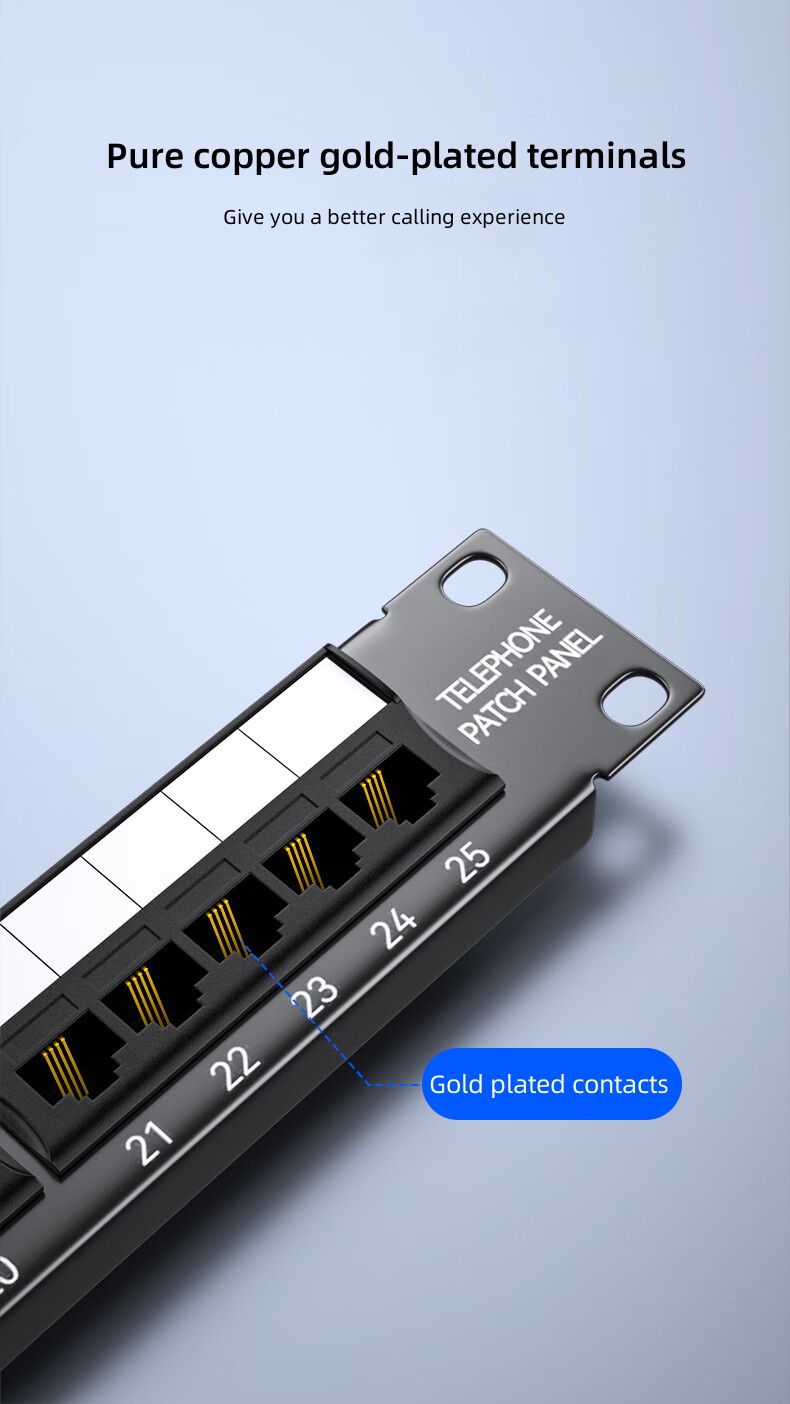

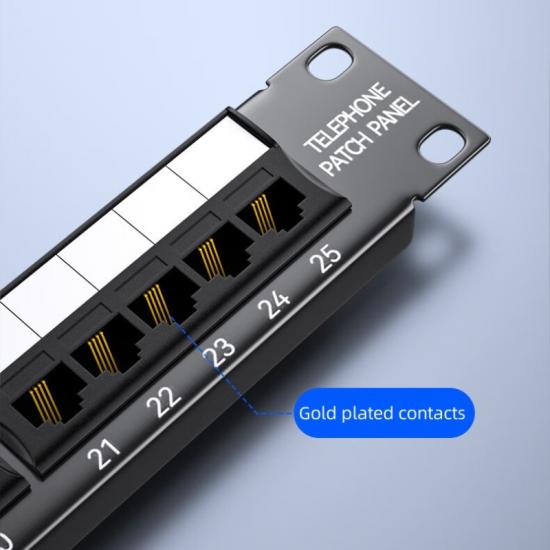

Pure copper gold-plated terminals
Give you a better calling experience

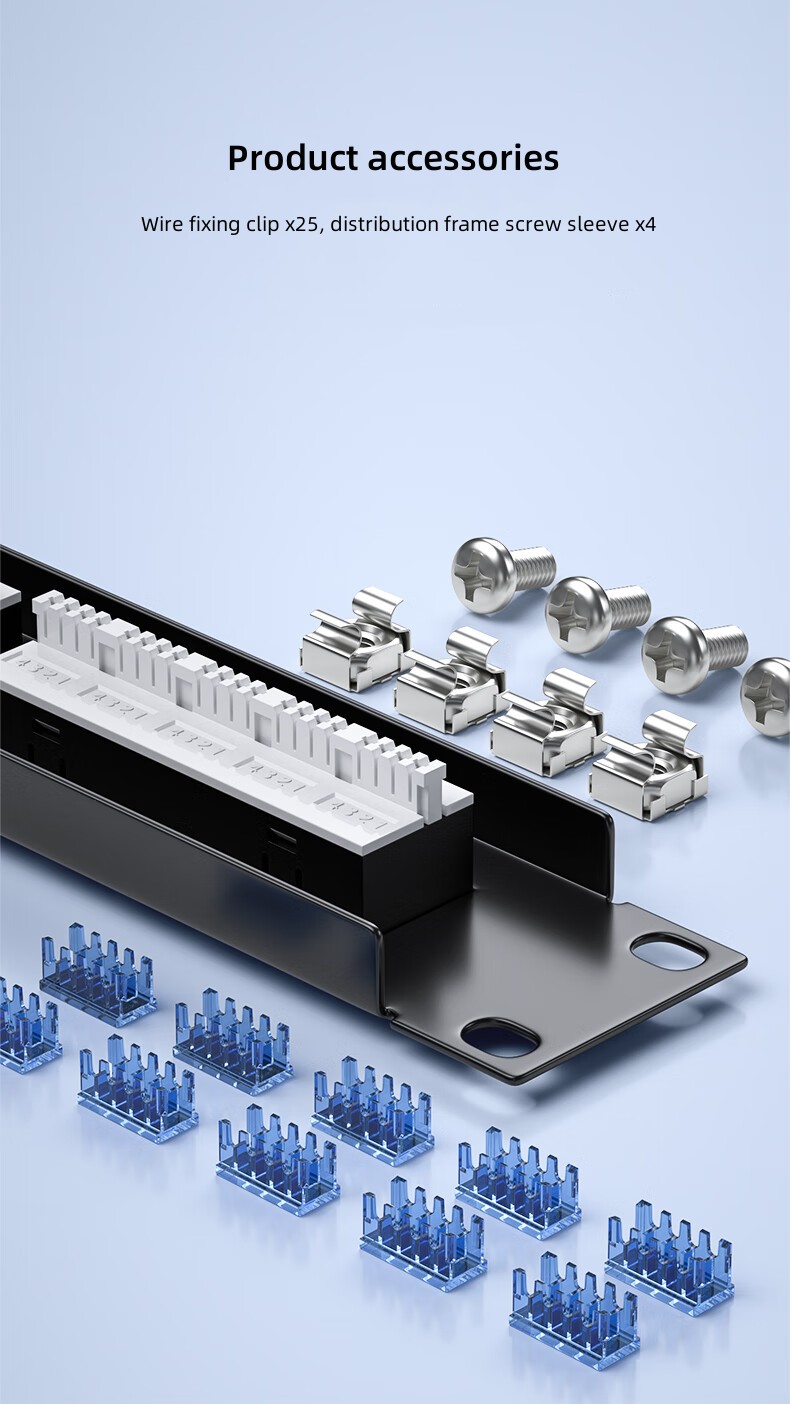

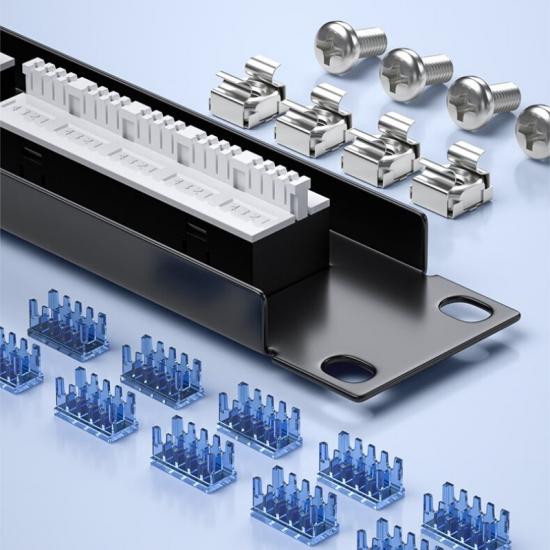

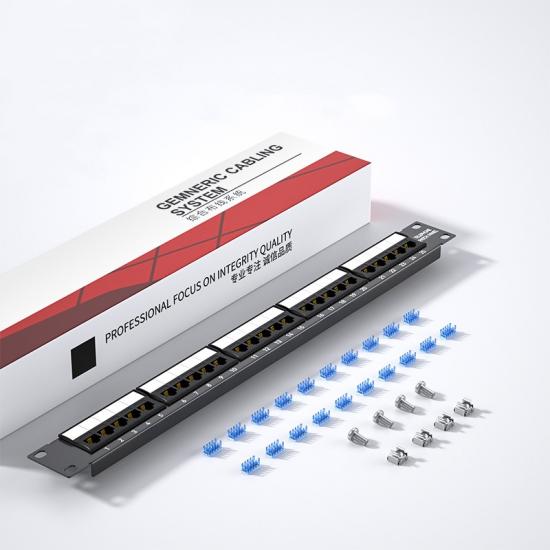

Product accessories
Wire fixing clip x25, distribution frame screw sleeve x4.

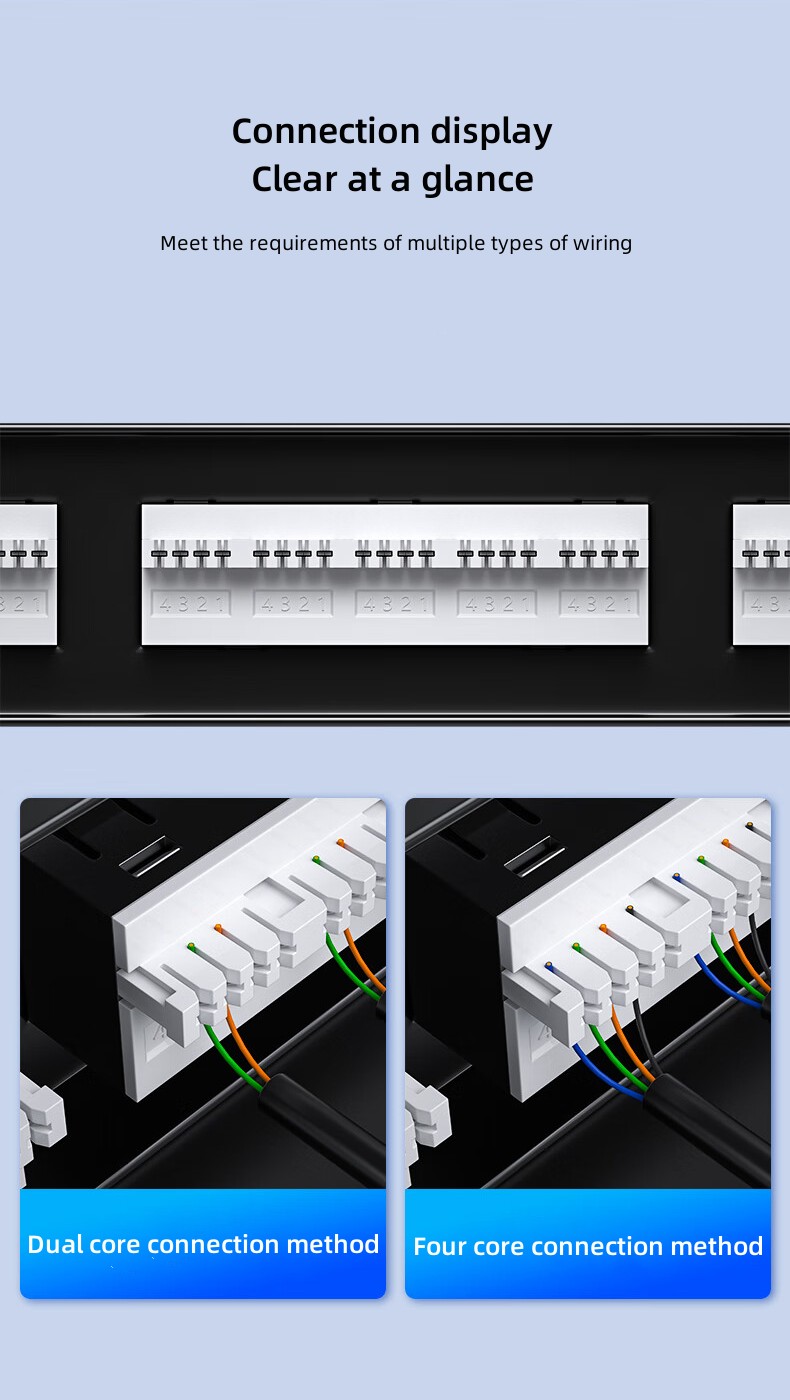

Connection display, clear at a glance
Meet the requirements of multiple types of wiring.

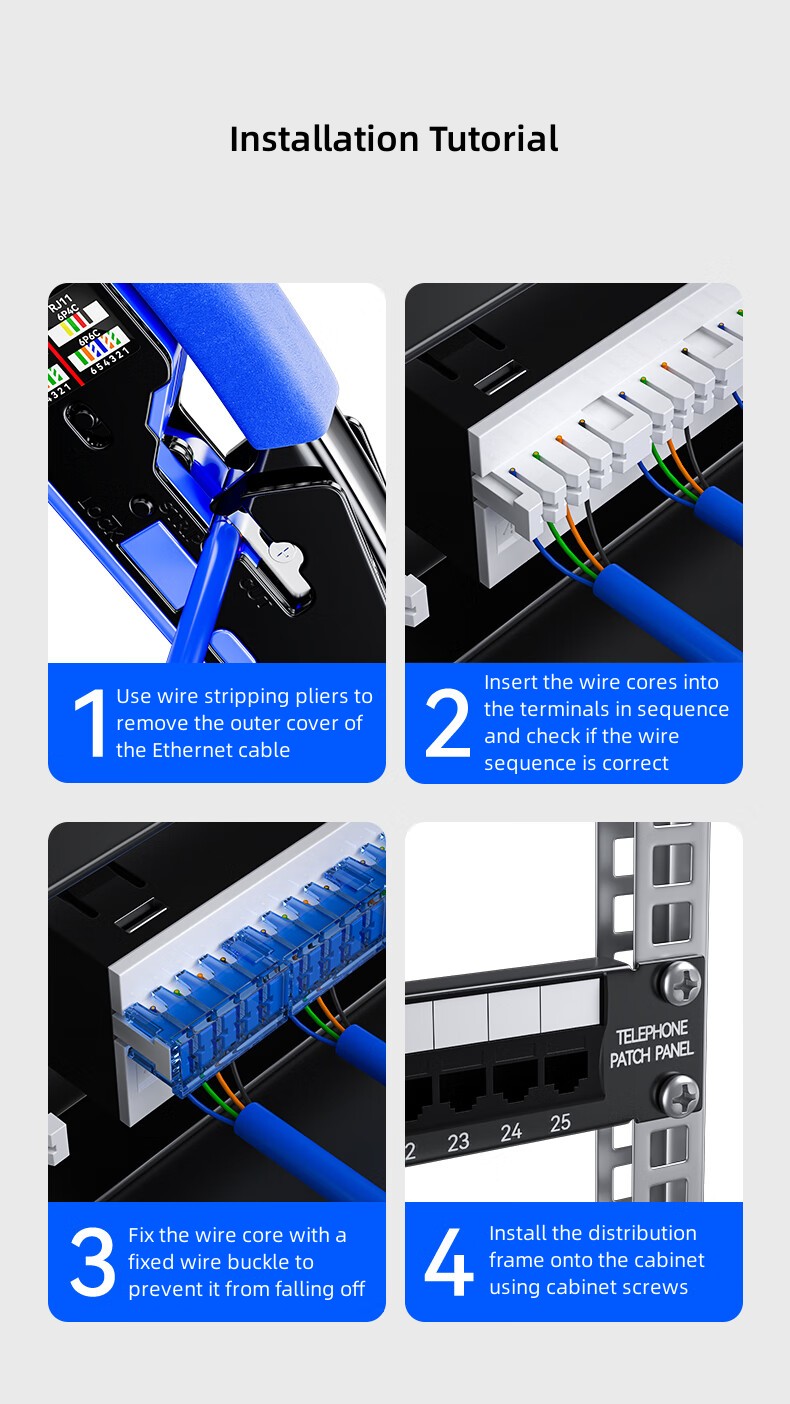

Installation Tutorial
1) Use wire stripping pliers to remove the outer cover of the Ethernet cable;
2) Insert the wire cores into the terminals in sequence and check if the wire sequence is correct;
3) Fix the wire core with a fixed wire buckle to prevent it from falling off;
4) Install the distribution frame onto the cabinet using cabinet screws.
Ⅲ. Suitable for various scenarios

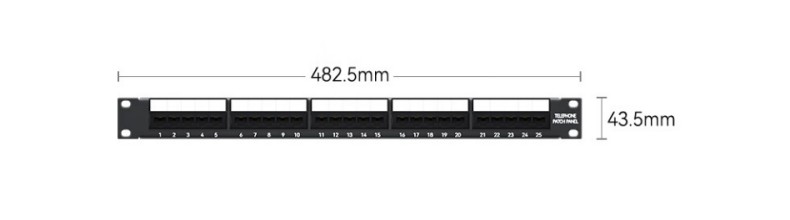

Ⅳ. Product Size
