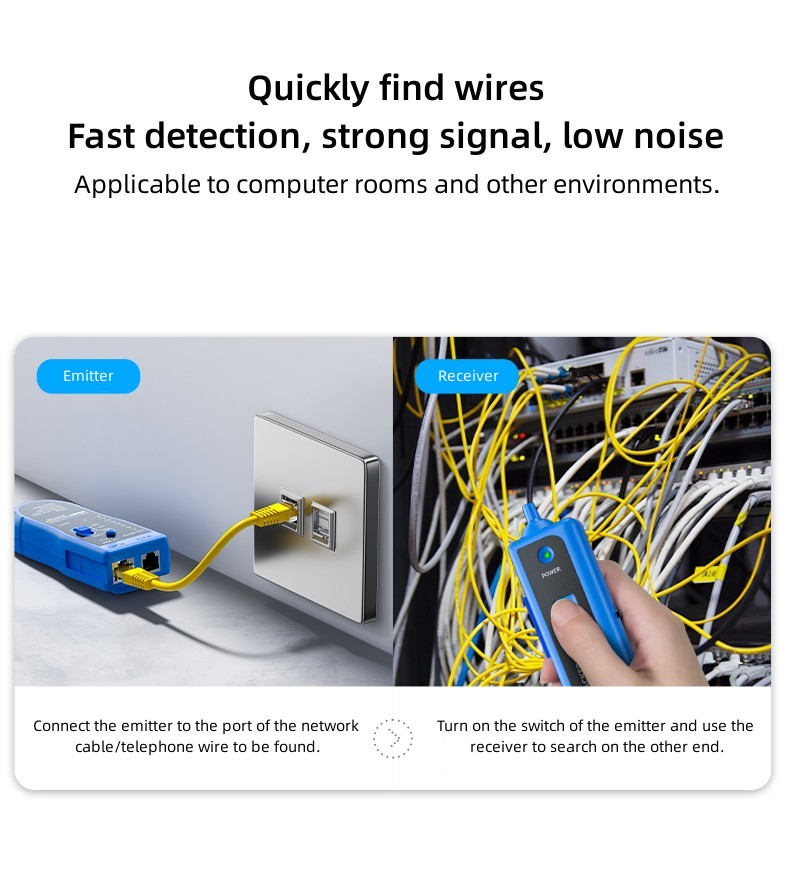

1) Emitter
Connect the emitter to the port of the network cable/telephone wire to be found.
2) Receiver
Turn on the switch of the emitter and use the receiver to search on the other end.
Product Origin:
ChinaItem NO.:
TB-2992Shipping Port:
Guangzhou/ShenzhenMultifunction Digital Signal Network RJ45 RJ11 Telephone LAN Cable Diagnose Tester Finder with Indicator Light
Ⅰ. Product Parameters
|
Product Name |
Multifunction Network Cable Tester |
|
Model |
TB-2992 |
|
Function |
Find/align/measure cables |
|
Port |
RJ11, RJ45 |
| Color | Blue |
|
Warranty |
1 Year |
Ⅲ. Product Description

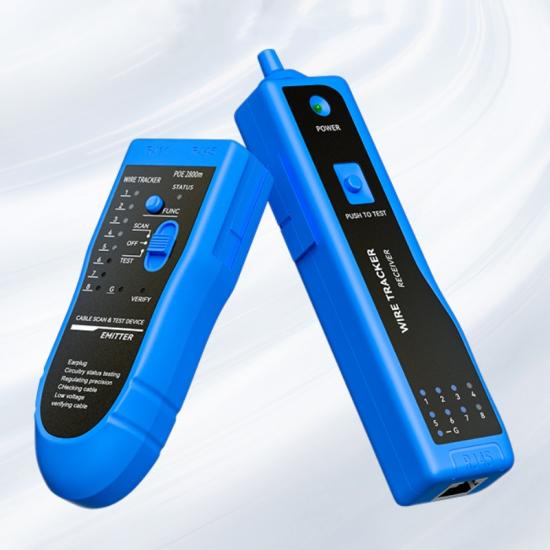

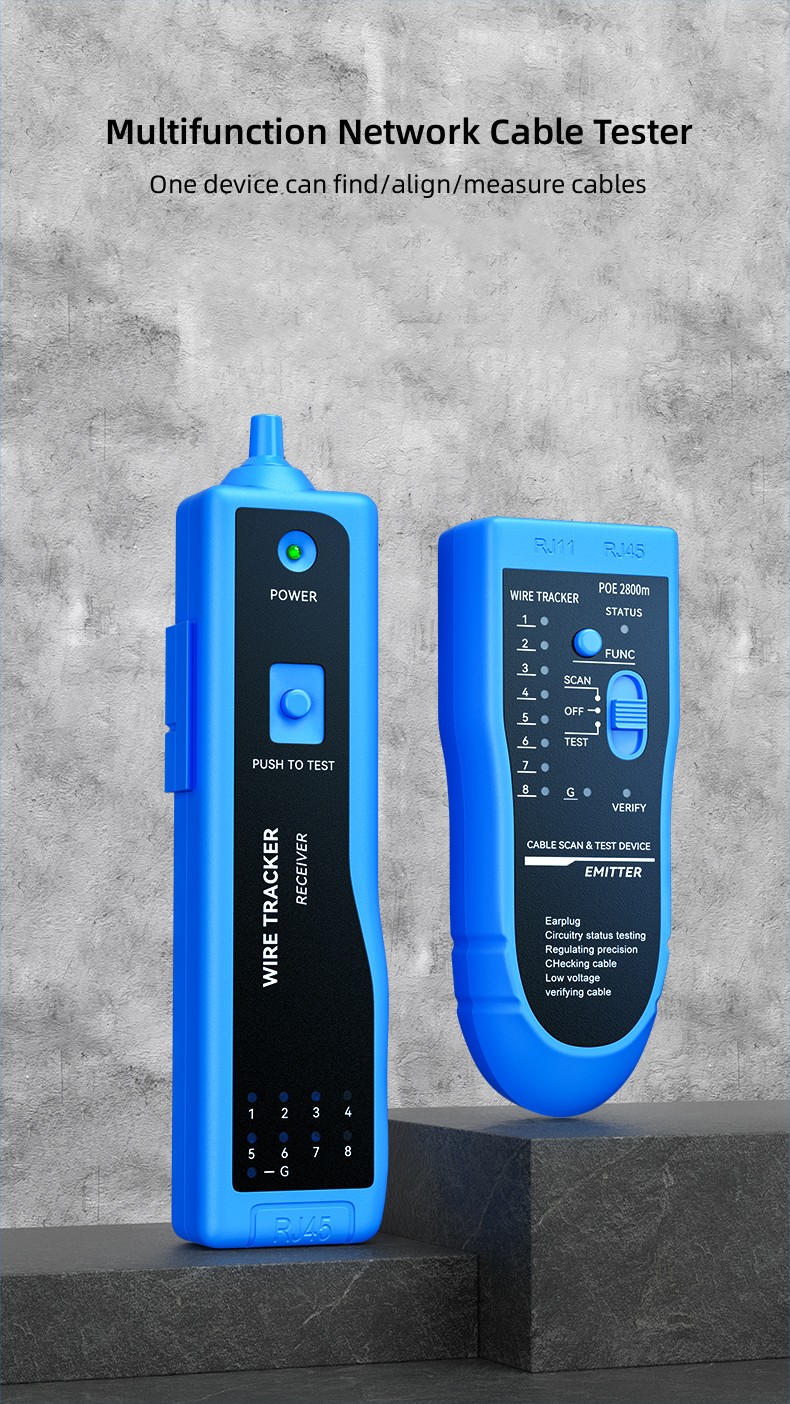

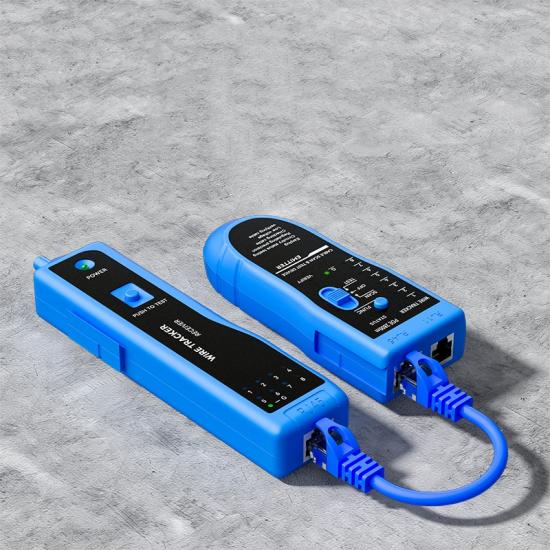

Multifunction Network Cable Tester
One device can find/align/measure cables
Quickly find wires
Fast detection, strong signal, low noise
Applicable to computer rooms and other environments.

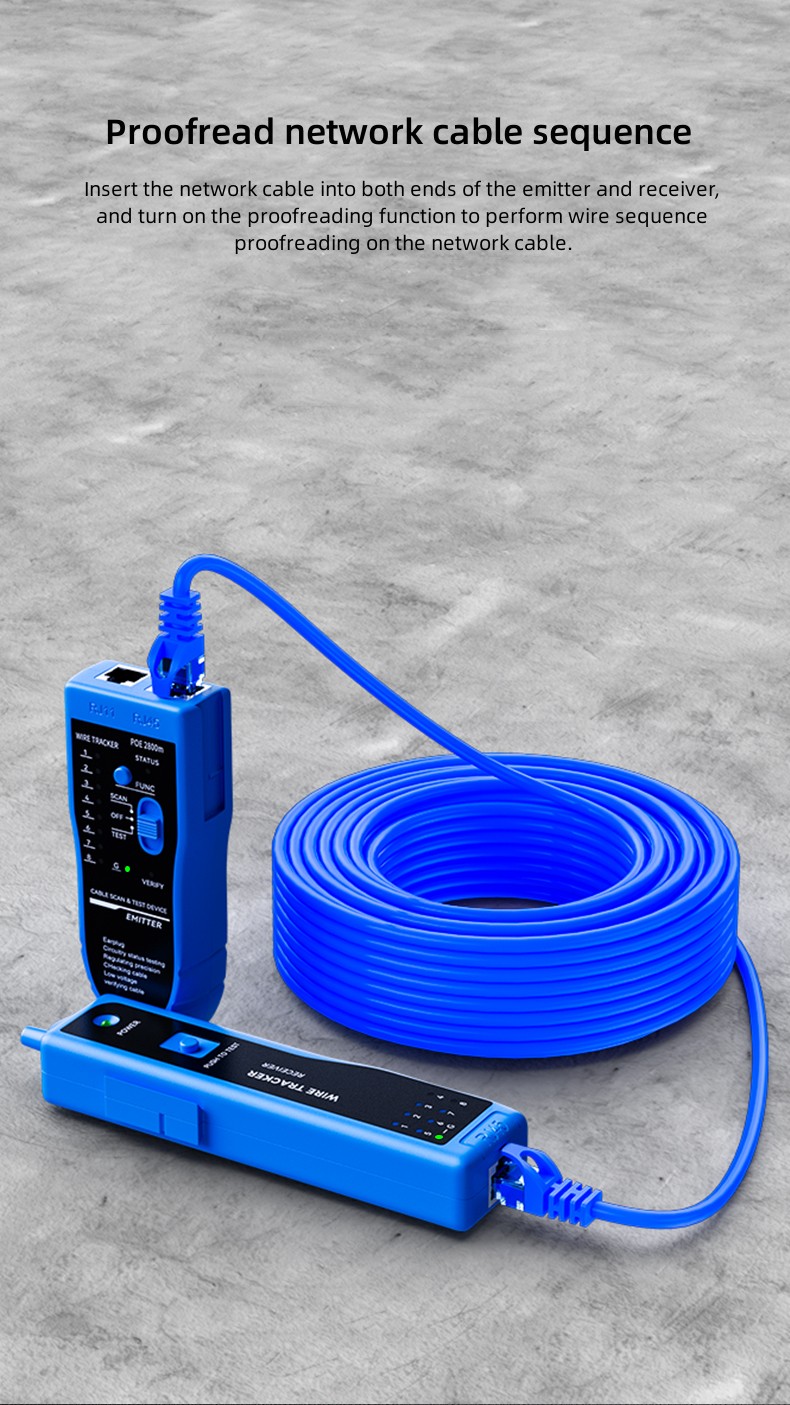

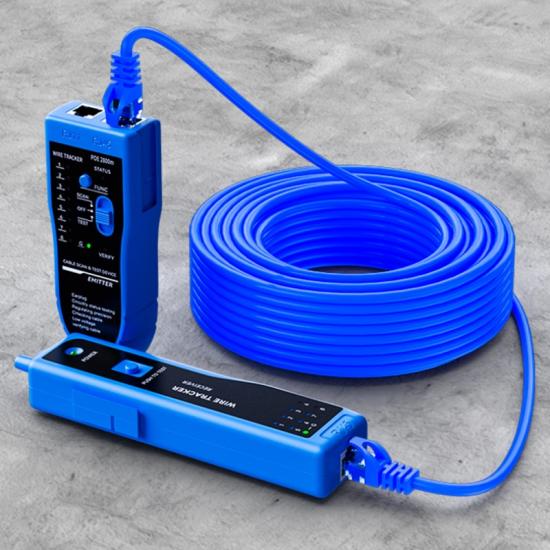

Proofread network cable sequence
Insert the network cable into both ends of the emitter and receiver, and turn on the proofreading function to perform wire sequence proofreading on the network cable.

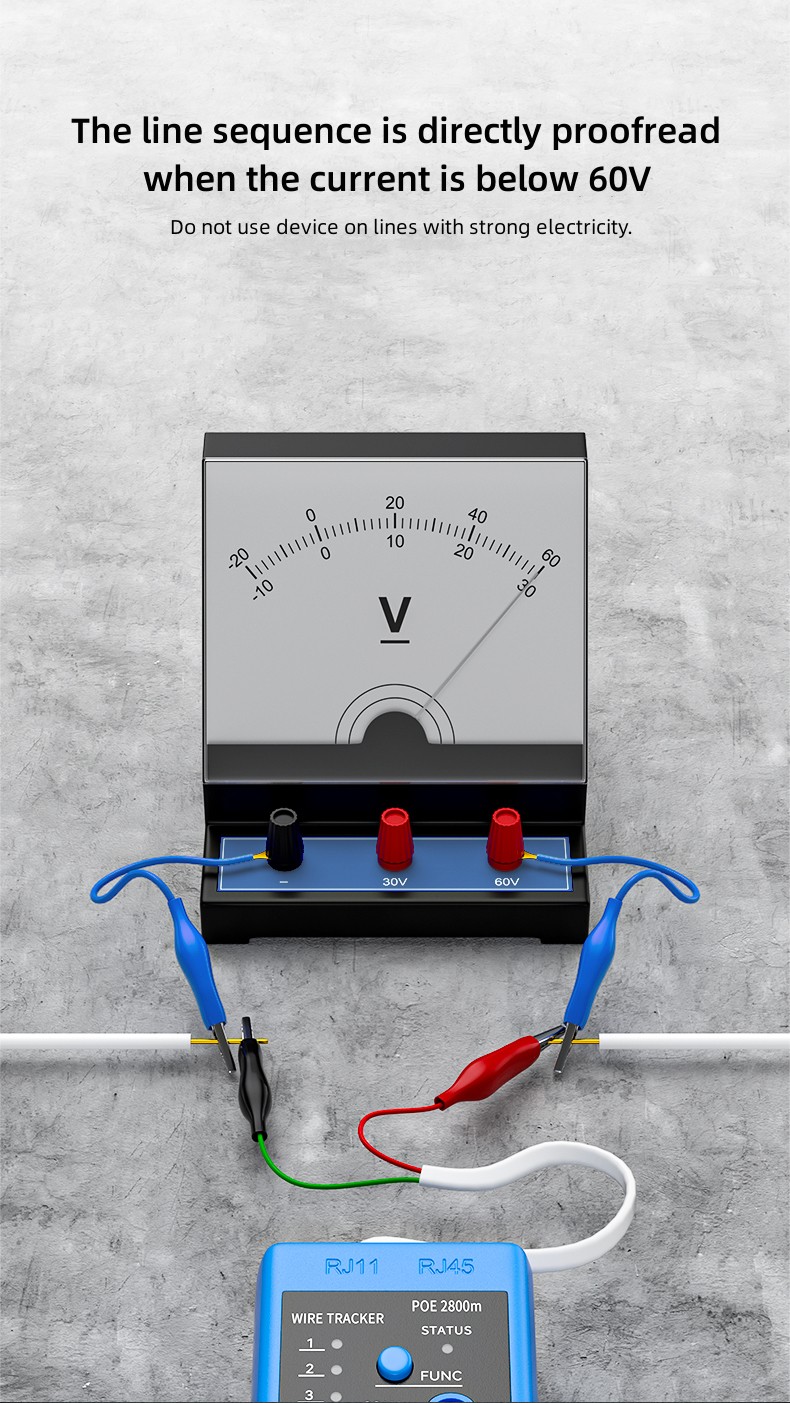

The line sequence is directly proofread when the current is below 60V
Do not use device on lines with strong electricity.

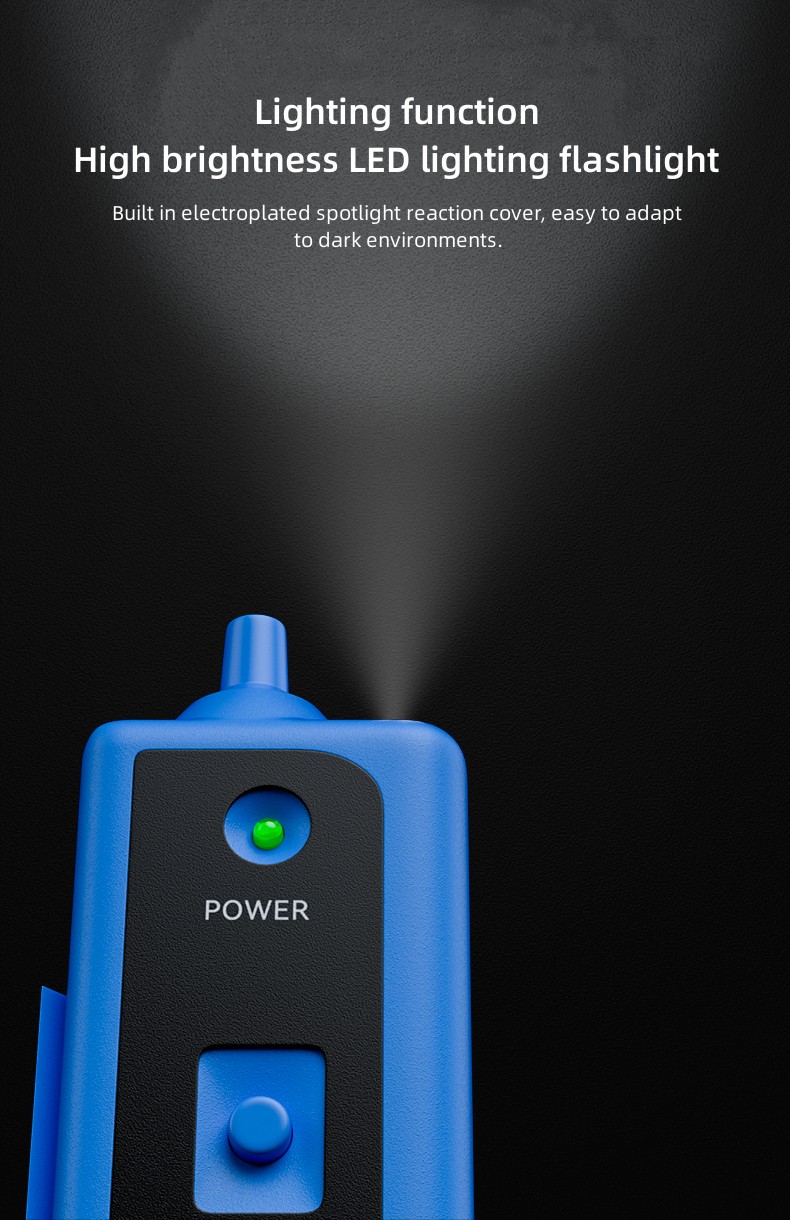

Lighting function
High brightness LED lighting flashlight
Built in electroplated spotlight reaction cover, easy to adapt to dark environments.

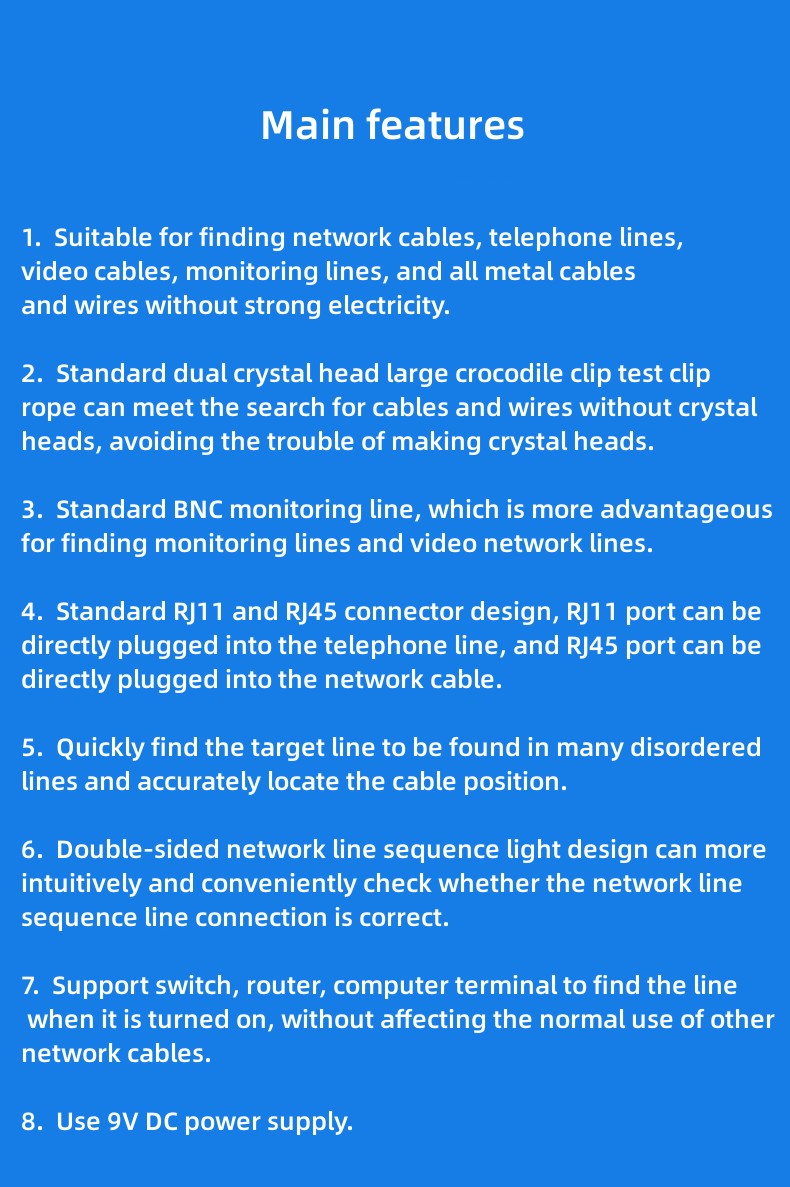

Main features
1. Suitable for finding network cables, telephone lines, video cables, monitoring lines, and all metal cables and wires without strong electricity.
2. Standard dual crystal head large crocodile clip test clip rope can meet the search for cables and wires without crystal heads, avoiding the trouble of making crystal heads.
3. Standard BNC monitoring line, which is more advantageous for finding monitoring lines and video network lines.
4. Standard RJ11 and RJ45 connector design, RJ11 port can be directly plugged into the telephone line, and RJ45 port can be directly plugged into the network cable.
5. Quickly find the target line to be found in many disordered lines and accurately locate the cable position.
6. Double-sided network line sequence light design can more intuitively and conveniently check whether the network line sequence line connection is correct.
7. Support switch, router, computer terminal to find the line when it is turned on, without affecting the normal use of other network cables.
8. Use 9V DC power supply.

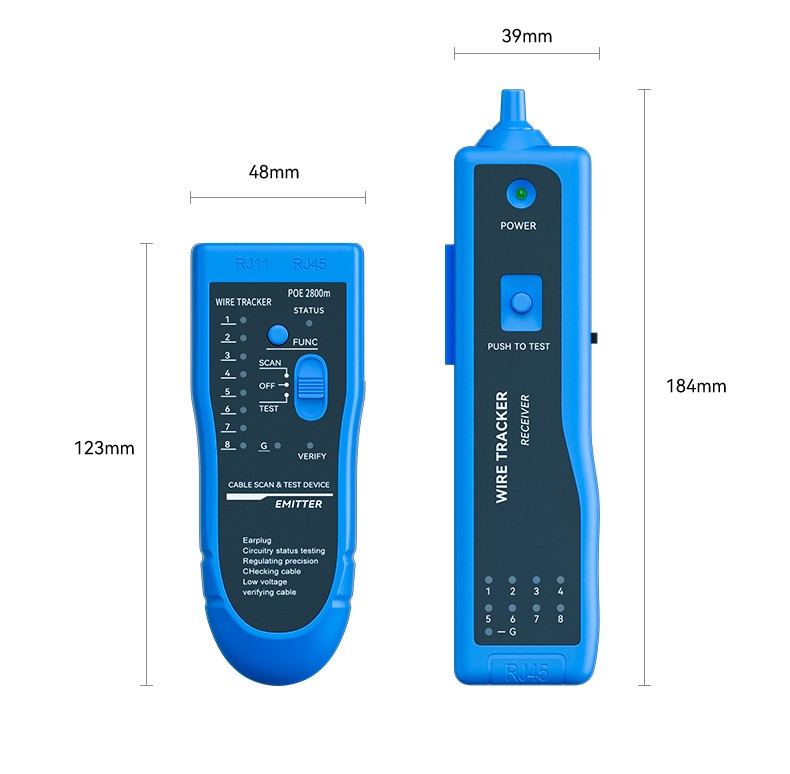

Ⅳ. Product Size

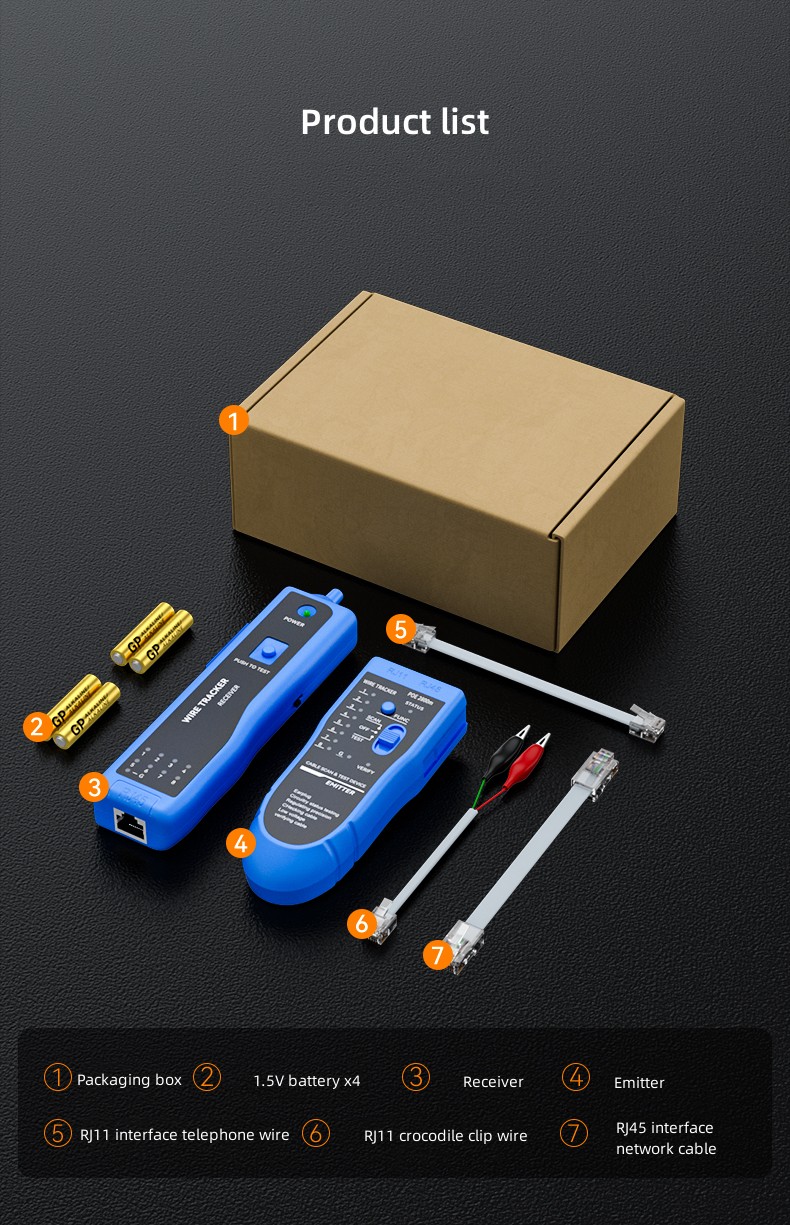

Ⅴ. Product List
