Made of cold-rolled steel plate material, it is more durable and sturdy to use.
Product Origin:
ChinaBrand:
DTECHItem NO.:
TB-1068Shipping Port:
Guangzhou/Shenzhen1U Cold Rolled Steel 110 Type Wiring Block 100 Pairs Telephone Voice Patch Panel for 19 inches Server Rack Cabinet
Ⅰ. Product Parameters
|
Product Name |
100 Pairs 110 Type Telephone Voice Patch Panel |
| Model | TB-1068 |
|
Port |
100 Pairs |
|
Material |
Cold rolled steel plate |
|
IDC Wiring Terminals |
PC+phosphorus bronze nickel plating |
|
Gold Plating Layer Thickness |
50µm |
|
Performance Standards |
Compliant with YD/T 926.3-2009, TIA/EIA 568C |
|
Application |
Engineering/Home Cabling |
|
Warranty |
1 Year |
Ⅱ. Product Description

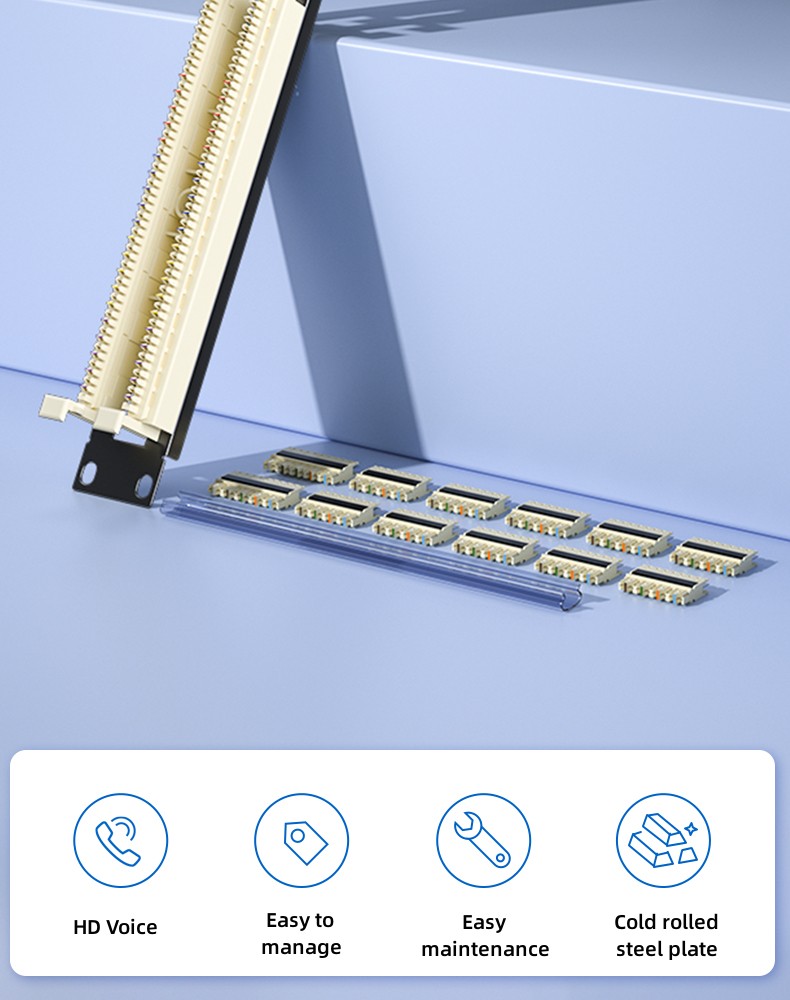

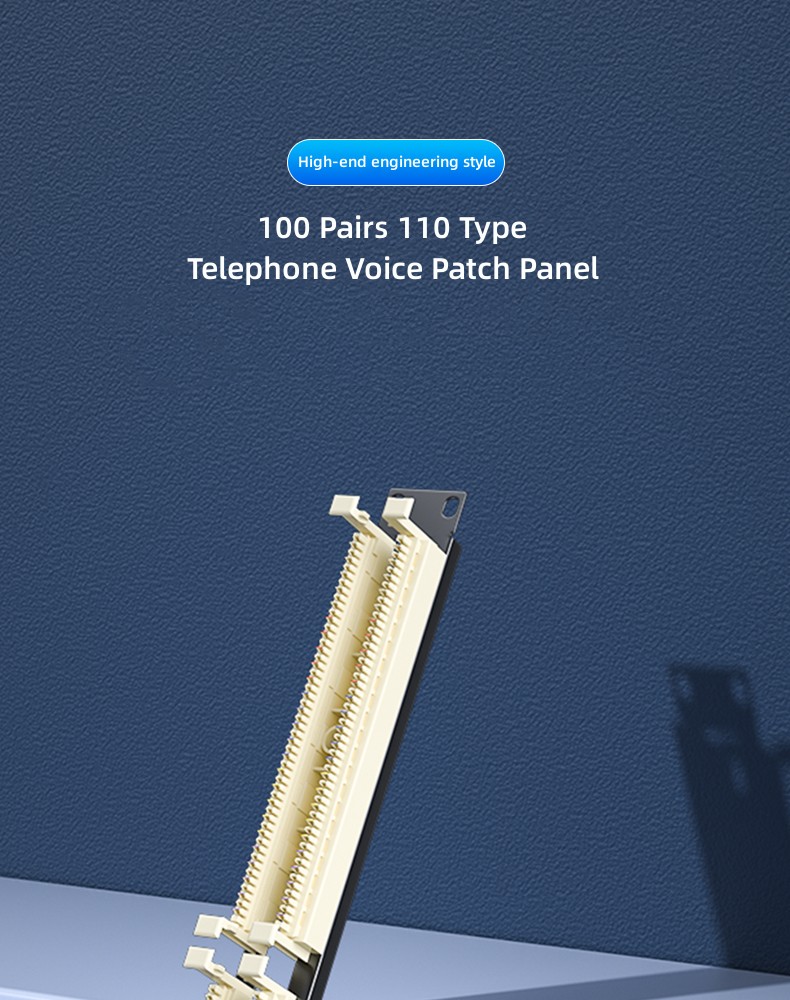

High-end engineering style

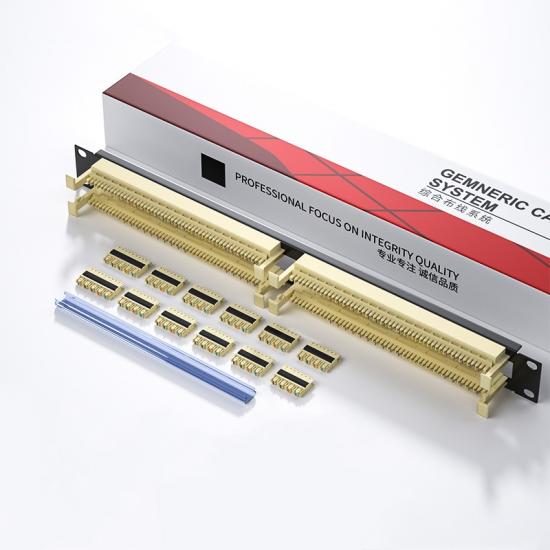

100 Pairs 110 Type Telephone Voice Patch Panel
Clear sound
Transmission without distortion
Each network port corresponds to a computer, which facilitates cabinet management and maintenance, reduces error checking time, and improves maintenance efficiency.

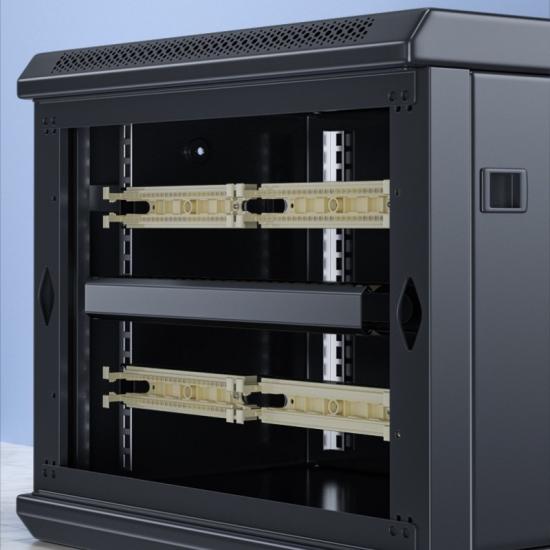

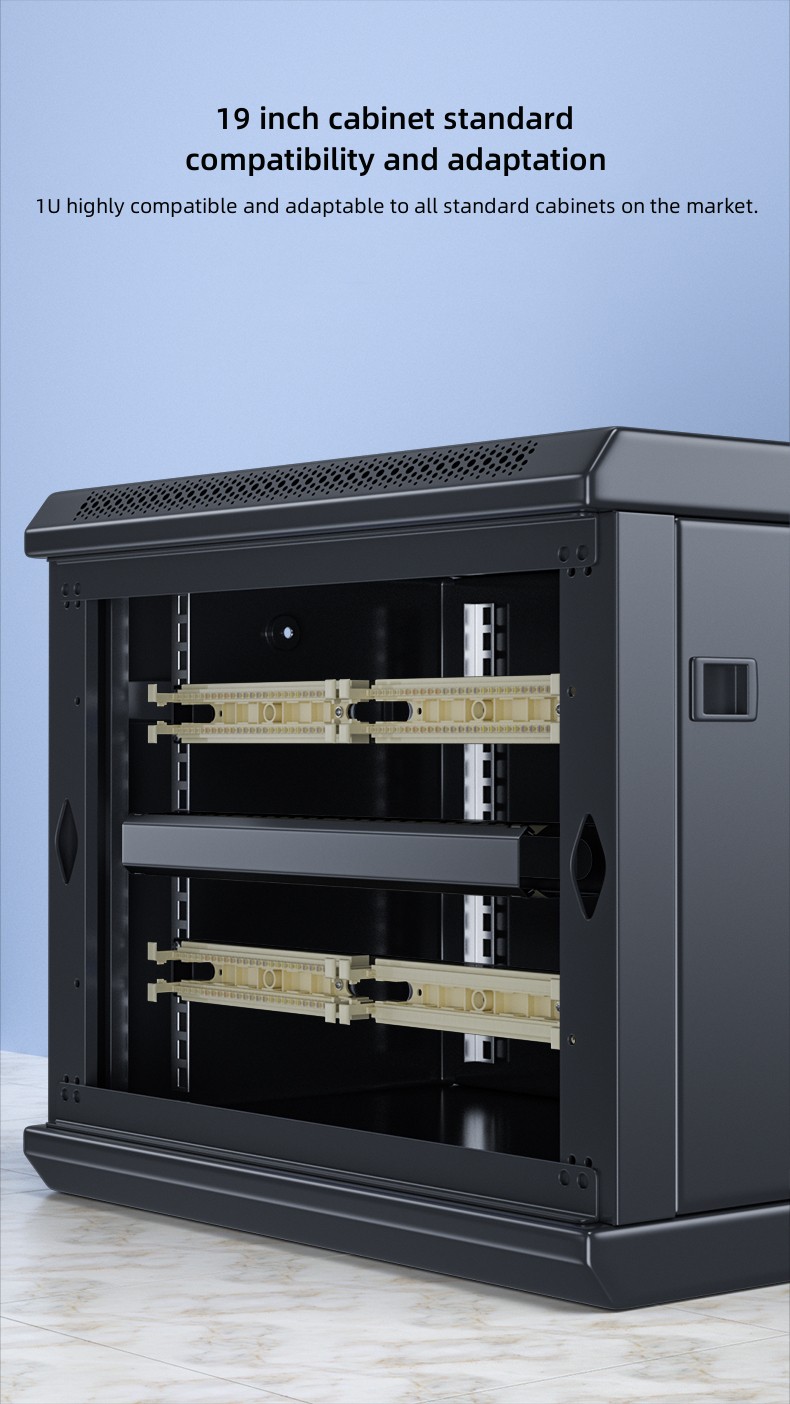

19 inch cabinet standard compatibility and adaptation
1U highly compatible and adaptable to all standard cabinets on the market.
Phosphor bronze
Effectively ensuring a termination life of ≥ 250 times.

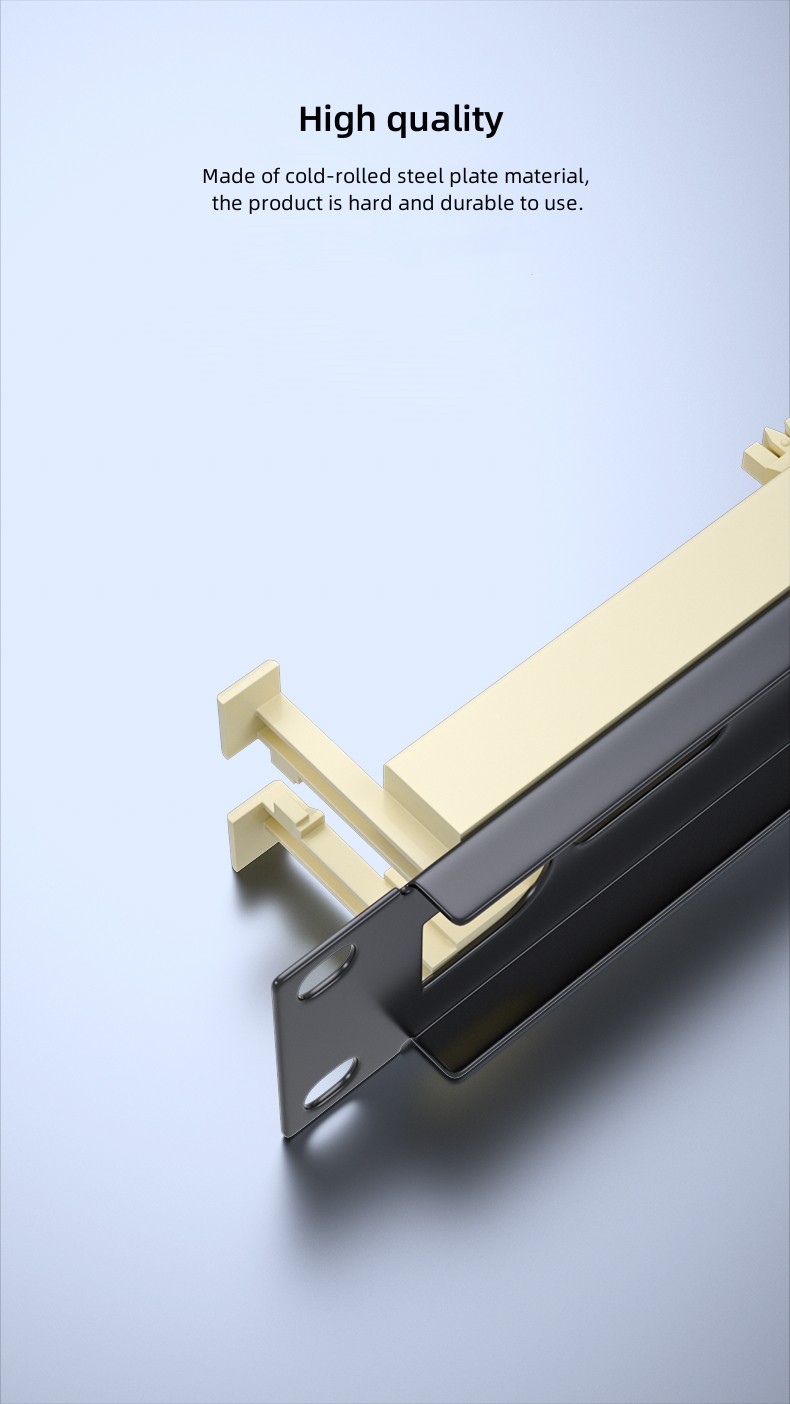

High quality
Made of cold-rolled steel plate material, the product is hard and durable to use.

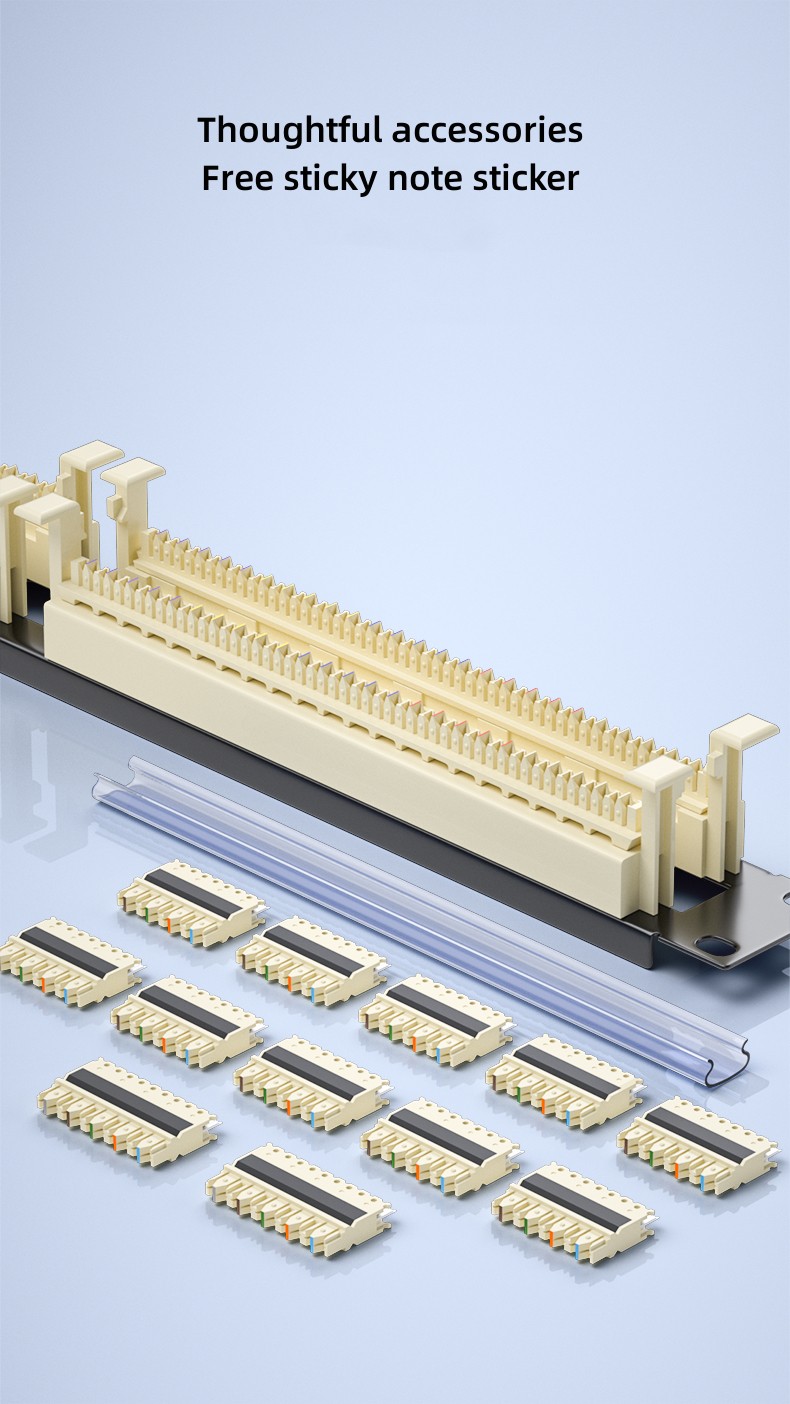

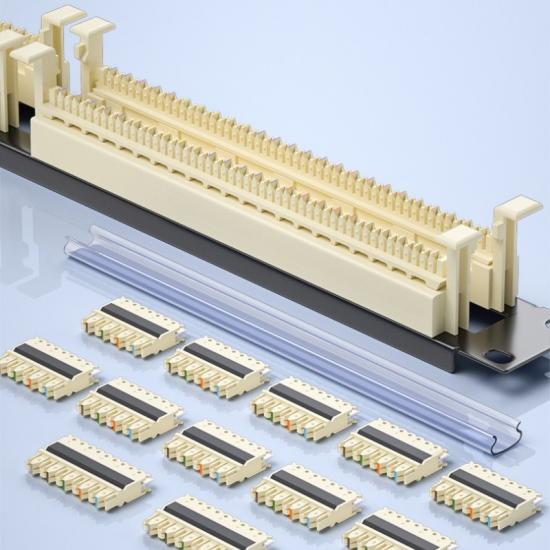

Thoughtful accessories
Free sticky note sticker
Connection display, clear at a glance
Meet the requirements of multiple types of wiring.

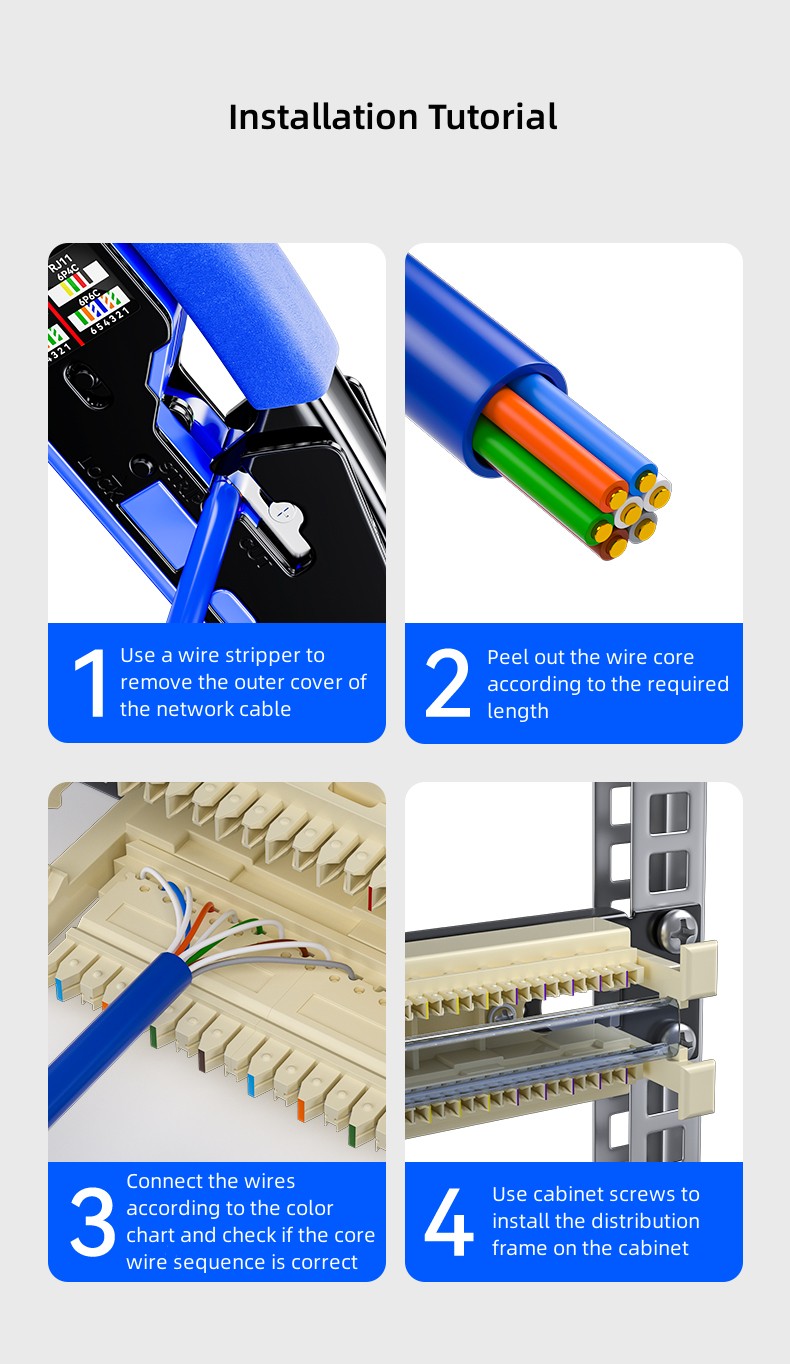

Installation Tutorial
1. Use a wire stripper to remove the outer cover of the network cable;
2. Peel out the wire core according to the required length;
3. Connect the wires according to the color chart and check if the core wire sequence is correct;
4. Use cabinet screws to install the distribution frame on the cabinet.
Ⅲ. Suitable for various scenarios

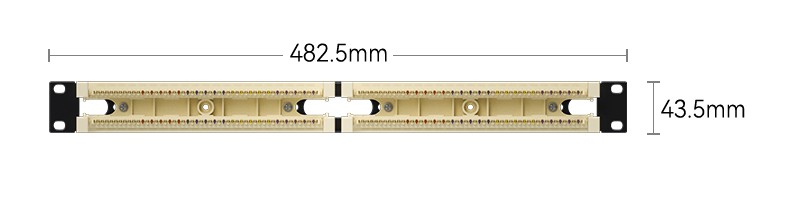

Ⅳ. Product Size
