This HDMI cascading extender uses a CAT 5e/6e cable to extend the HD signal up to 50 meters, and can reach 4K. It can be extended through the multi-level connection of the receiving end, and it can also realize a transmitter, and multiple receivers do not need to go through the switch. Concatenated cascade transmission (up to 5 receivers). It is widely used in computer teaching systems, high-quality multimedia displays, video conferences, computers, LCD plasma high-definition display venues, digital home theaters, exhibitions, education, finance, scientific research, meteorology and other fields.
Product Origin:
ChinaBrand:
DTECHItem NO.:
DT-7084（GS）Shipping Port:

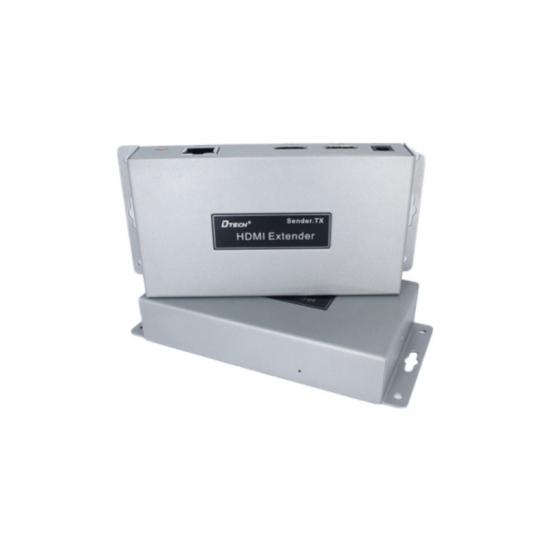

Guangzhou/ShenzhenDTECH 4K HDMI Cascade Extender Via Single Cat 5e/6 Cable HDMI Extender Support IR Tx Rx Cascade Connection Receiver Transmitter
Ⅰ. Product Description
| Product Name |
4K HDMI Cascading Extender |
| Model |
DT-7084（GS） |
|
Resolution |
Point to point: 4K@60Hz, up to 60m One point to five cascades: 4K@30Hz, each cascade can reach 50m, the total distance is 200m |
|
Warranty |
1 Year |
Ⅱ. Product Parameter
(1) Support Cat5e/Cat6e/single shielded/unshielded twisted pair real-time point-to-point, cascaded transmission of image and audio signals;
(2) HDMI signal supports 4K@30Hz resolution, backward compatible with multiple resolutions;
(3) The transmitter supports local output;
(4) The receiving end can be connected in series with the same type of receiving end for cascade transmission, and it can be cascaded for 50 meters; (recommended to use Haikang Super Category 5 or Category 6 standard network cable)
(5) With signal 3dB gain or pre-compensation, to ensure the true restoration of high-definition signal;
(6) Anti-lightning, dust-proof, anti-static, and prolong the service life;
(7) Using 26AWG HDMI standard cable, the transmission distance at the input end can reach 10 meters, and the transmission distance at the output end can reach 5 meters.
1.Transmitter
Interface
Function Description
DC 5V
DC power input port, 5VDC power adapter input
HDMI In
HDMI Input Port
HDMI Out1
HDMI Output Port
Output
Network Cable output Port
IR Out
Connect infrared output Port
2.Receiver
Interface
Function Description
DC 5V
DC power input port, 5VDC power adapter input
HDMI Out2
HDMI Output Port
IR In
Connect infrared input Port
Iuput
Network Cable input Port
Output
Network Cable output Port
Ⅳ. Product List
1. TX transmitter *1
2. RX receiver *1
3. User Manual *1
