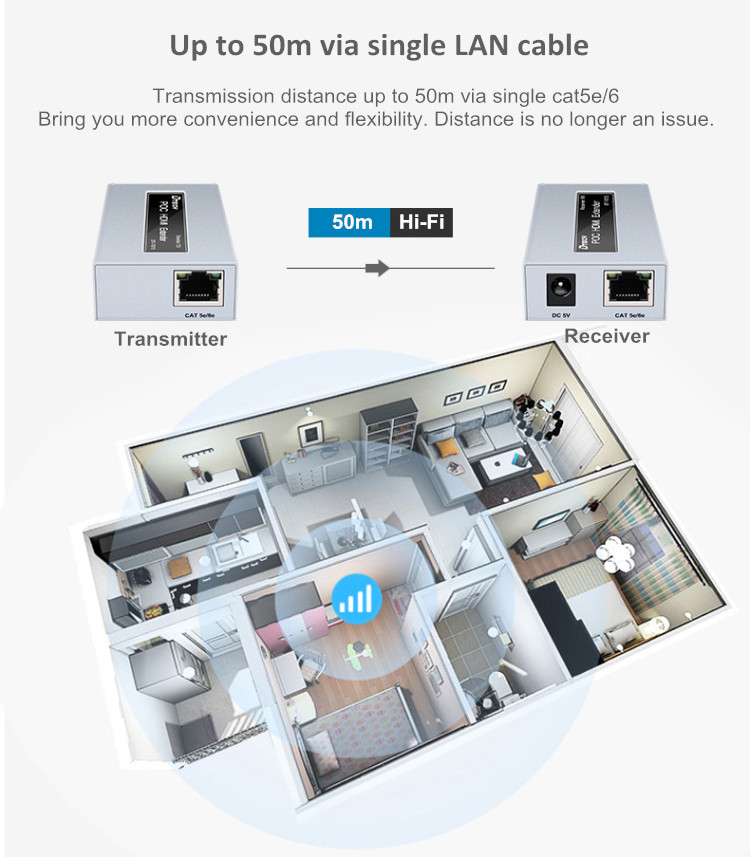

The HDMI extender adopts the high-tech HDMI signal extension chip, the signal is stable, and the signal is not lost within the effective distance. The standard super five network cable can be extended by 50 meters, and the six network cable can be extended by 60 meters. Use uncompressed signal transmission scheme, support HDMI resolution of 1080P@60Hz.
Product Origin:
chinaBrand:
DTECHItem NO.:

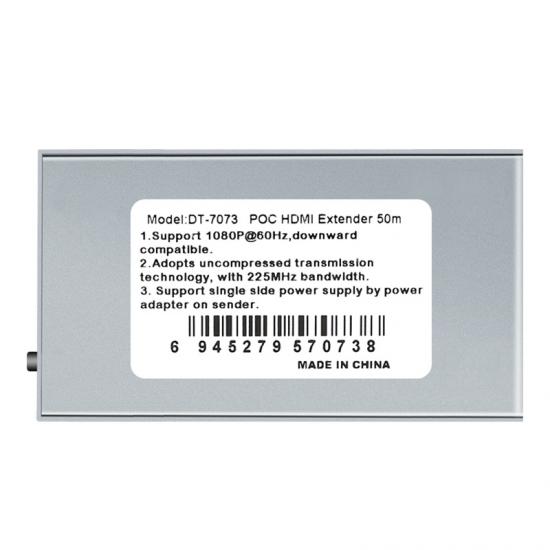

DT-7073（2nd）Shipping Port:

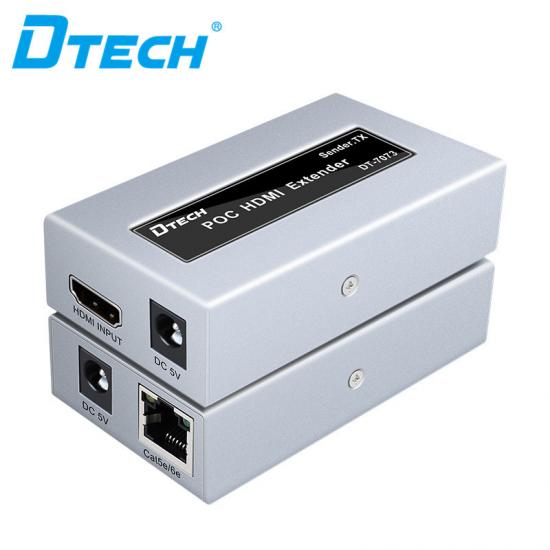

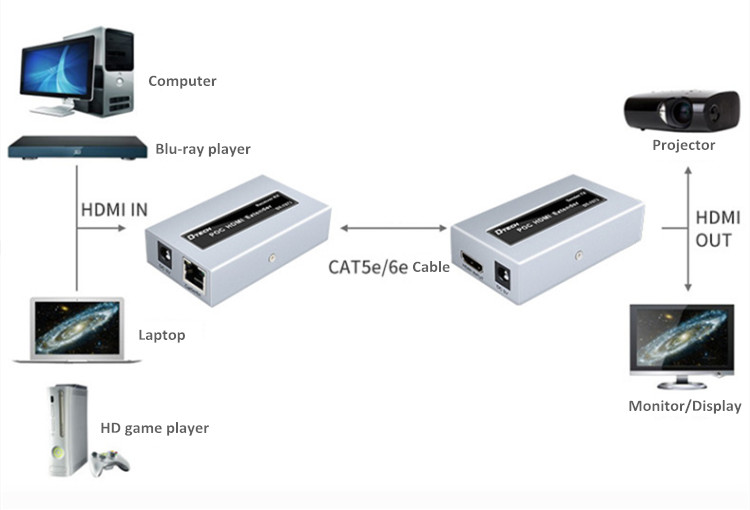

guangzhou/shenzhen1 Connect one end of the HDMI cable to the [HDMI IN] port on the extender. For example: computers, Blu-ray machines, top boxes and other devices with HDMI ports, the other end is connected to [HDMI OUT] signal output devices such as monitors, televisions.
2. Connect both ends of a network cable to [CAT5e/6e] ports at the transmitting end and receiving end respectively
3. Insert the delivery power into the [DC 5V] port
Product function parameter
(1) Support 3D, support the highest format 1080P
(2) the HDMI formats: 480 I/I / 576 p / 480 p / 576 720 I / 720 p / 1080 I / 1080 p
(3) HDMI signal bandwidth: 225MHz/2.5Gbps
(4) Support 24-bit / 30-bit / 36-bit / 48-bit dark colors
(5) Support BLU-ray DVD24/50/60fs/HD-DVD/XVYCC Audio formats DTS-HD, Dolby-trueHD, LPCM7.1, DTS, DOLBY-AC3, DSD, HD(HBR)
(7) The use of Class 5 network cable can be extended to 40 meters, the use of Class 5 network cable can be extended to 50 meters, the use of class 6 network cable can be extended to 60 meters

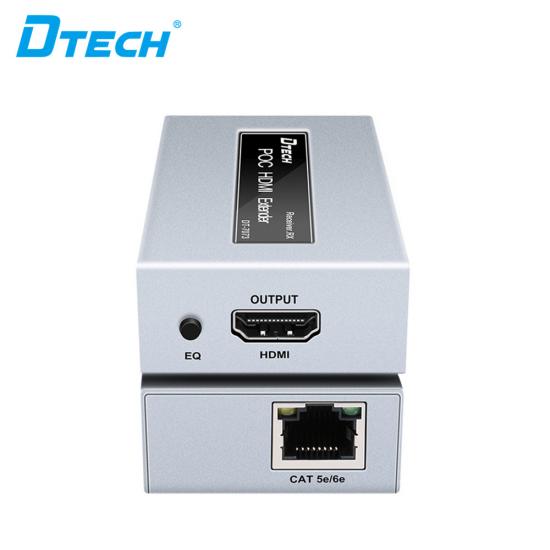

(8) There is an EQ automatic adjustment button at the receiving end. Adjusting this button can make the signal transmission more stable
Matters needing attention
Common problems during use:
1) There is no signal output at the receiving end
Check whether the signal indicator at the receiving end is on. If no, check whether there is signal input at the transmitting end or whether the receiving end is connected to the display device.
2) Screen flicker or noise
The screen flicker or noise is the performance of the signal is weak, you can press the EQ key at the receiving end, it will automatically adjust the signal sensitivity to make the signal quality is the best, if the signal is not improved after adjustment, please set the input resolution refresh rate, from 60HZ can be adjusted to 24HZ, and then see whether the signal is improved, if the signal is normal, the quality of the connected network cable is wrong.
Some display devices HDMI signal reception sensitivity is poor, can be appropriately reduced to the number of meters to use.
Electrical specification
Rated input voltage: DC 5V
Input current: External power supply 1000mA
Product accessories
(1) HDMI extender pair
(2) Apply one power supply
(3) One user manual
