This product supports Alibaba Cloud and DTECH Cloud.
Product Origin:
ChinaBrand:
DTECHItem NO.:
IOT9031BDShipping Port:
Guangzhou/ShenzhenDTECH Serial Port Device Server Din Rail Transparent Transmission TCP/IP to RS485/422 Ethernet Converter
Ⅰ.Product Parameters
| Product Name |
RS422/485 to Ethernet Serial Server (Din Rail) |
| Brand |
DTECH |
| Model |
IOT9031BD |
|
Operating Temperature |
-20℃~85℃ |
|
Relative Humidity |
5%~95% |
|
Power |
DC 9~40V, support standard POE and non-standard POE power supply |
|
Interface |
RJ45/RS485/RS422 |
|
Baud Rate |
300-921600BPS |
|
Network Protocol |
UDP, TCP, IP, DHCP, DNS, HTTP |
|
Warranty |
1 Year |
Ⅱ.Product Description

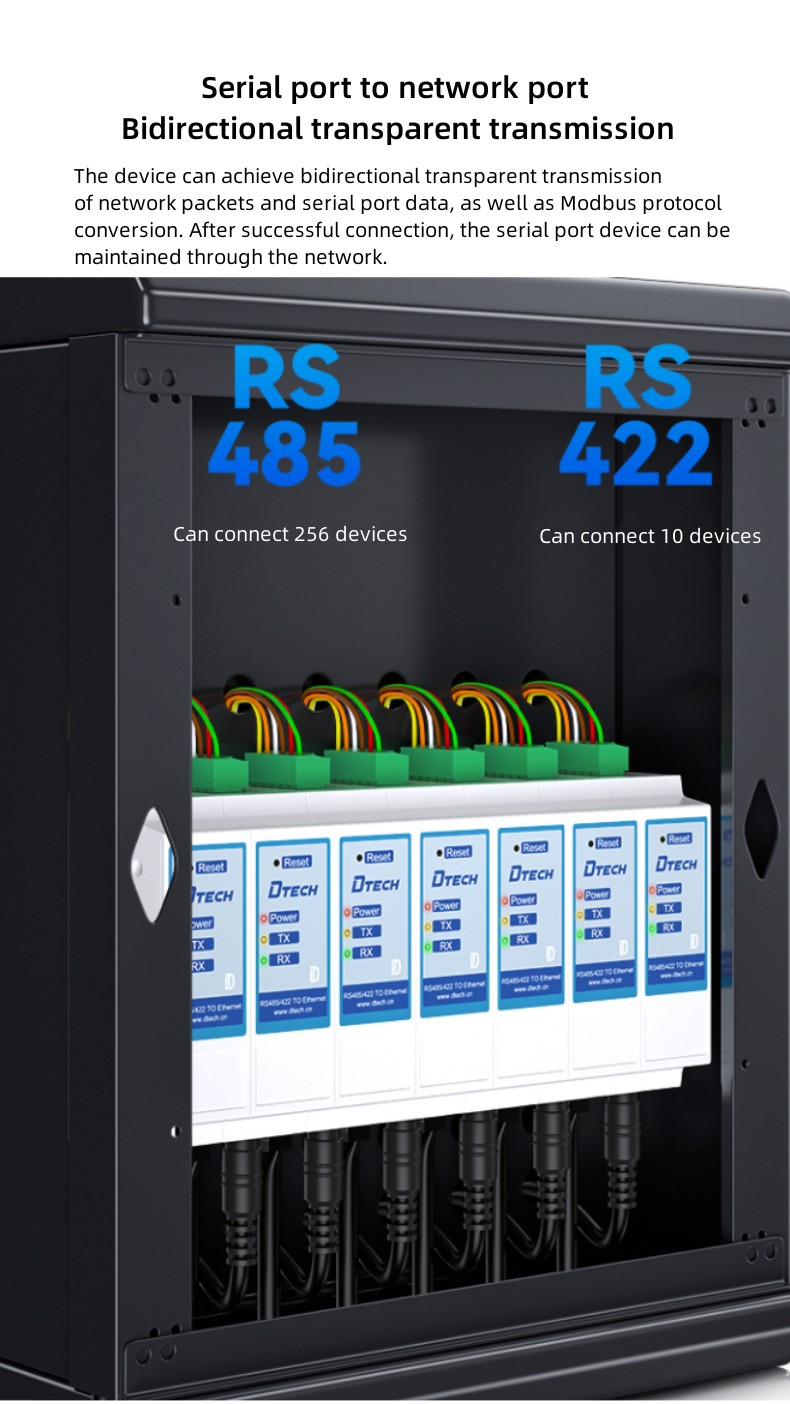

Serial port to network port
Bidirectional transparent transmission
The device can achieve bidirectional transparent transmission of network packets and serial port data, as well as Modbus protocol conversion. After successful connection, the serial port device can be maintained through the network.

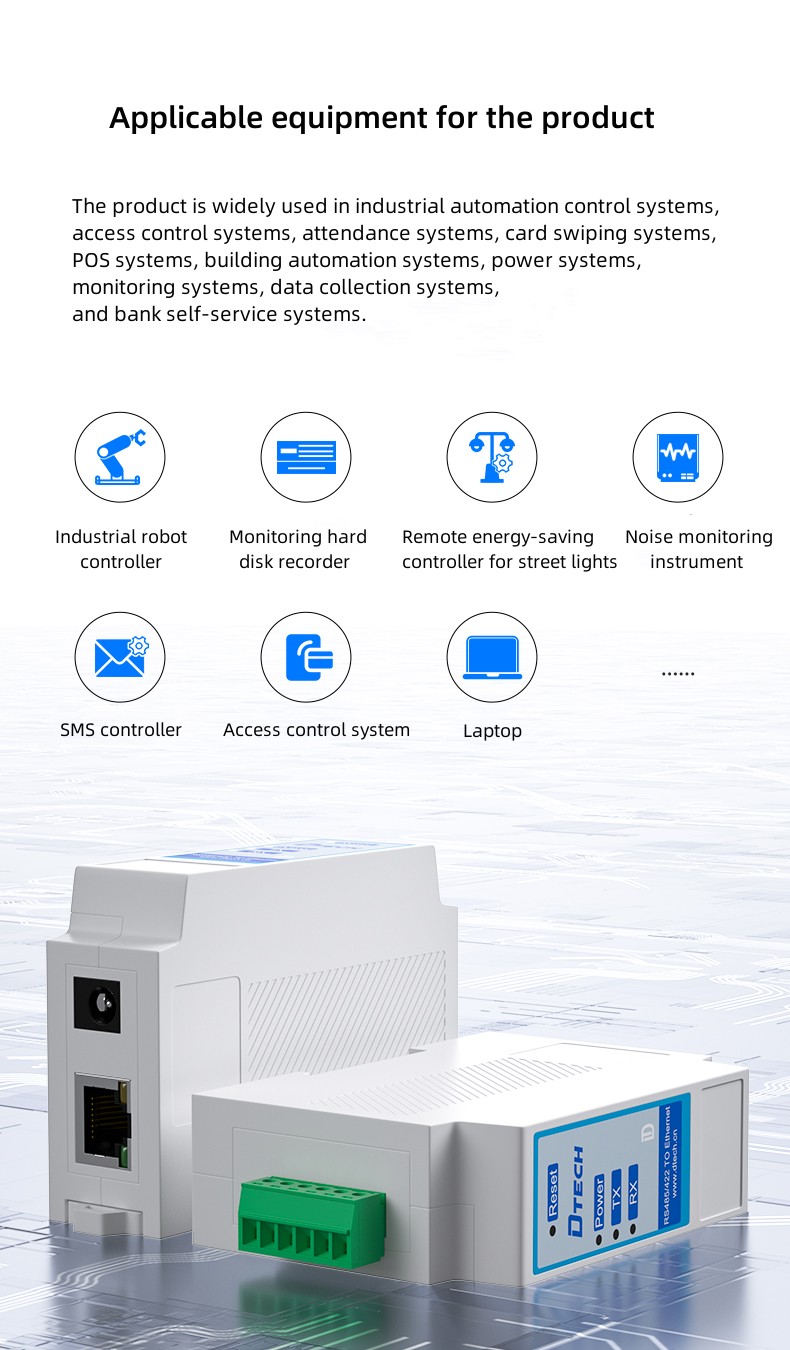

Applicable equipment for the product
The product is widely used in industrial automation control systems access control systems, attendance systems, card swiping systems, POS systems, building automation systems, power systems, monitoring systems, data collection systems, and bank self-service systems.

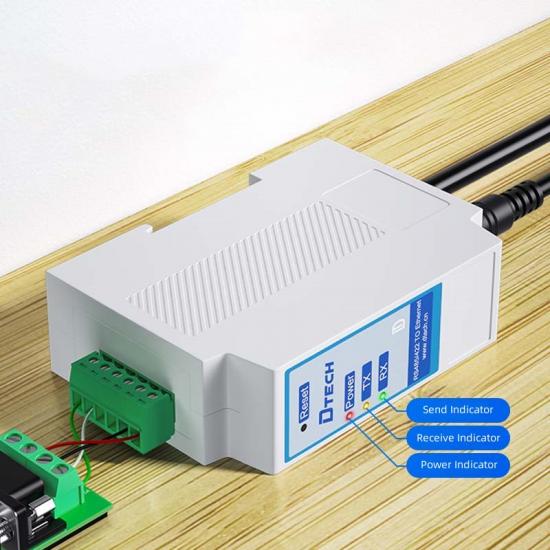

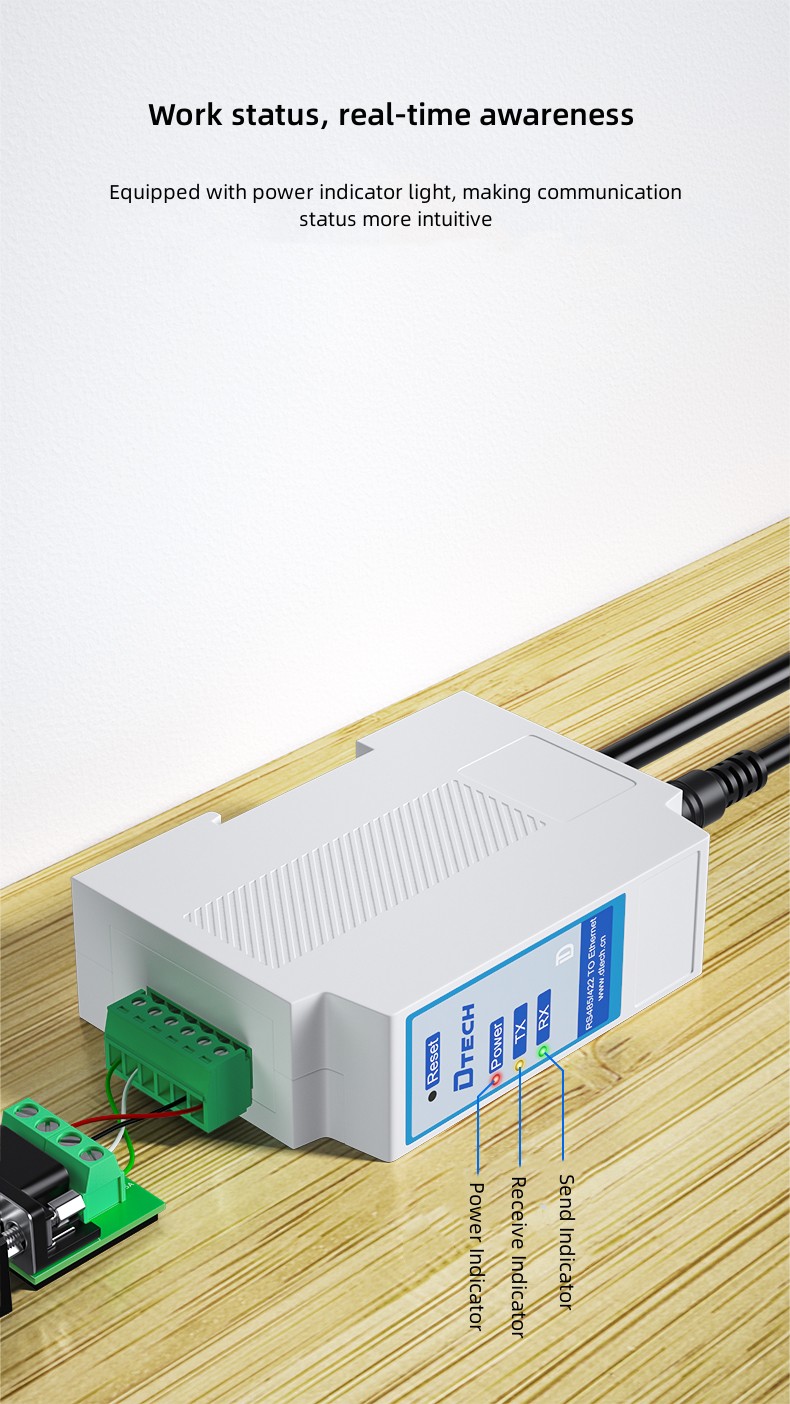

Work status, real-time awareness
Equipped with power indicator light, making communication status more intuitive.

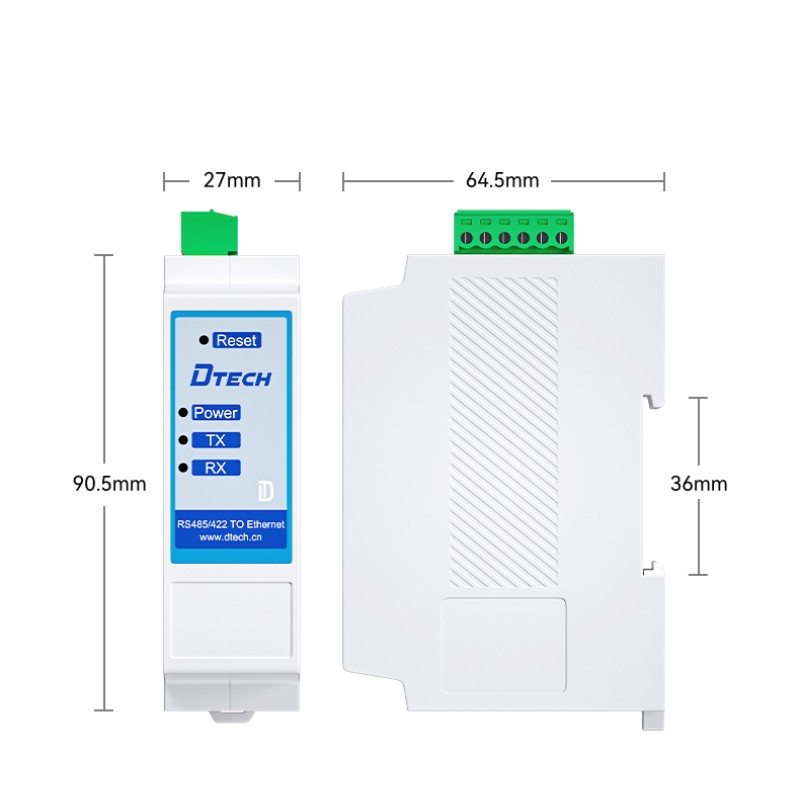

Ⅲ.Product Size

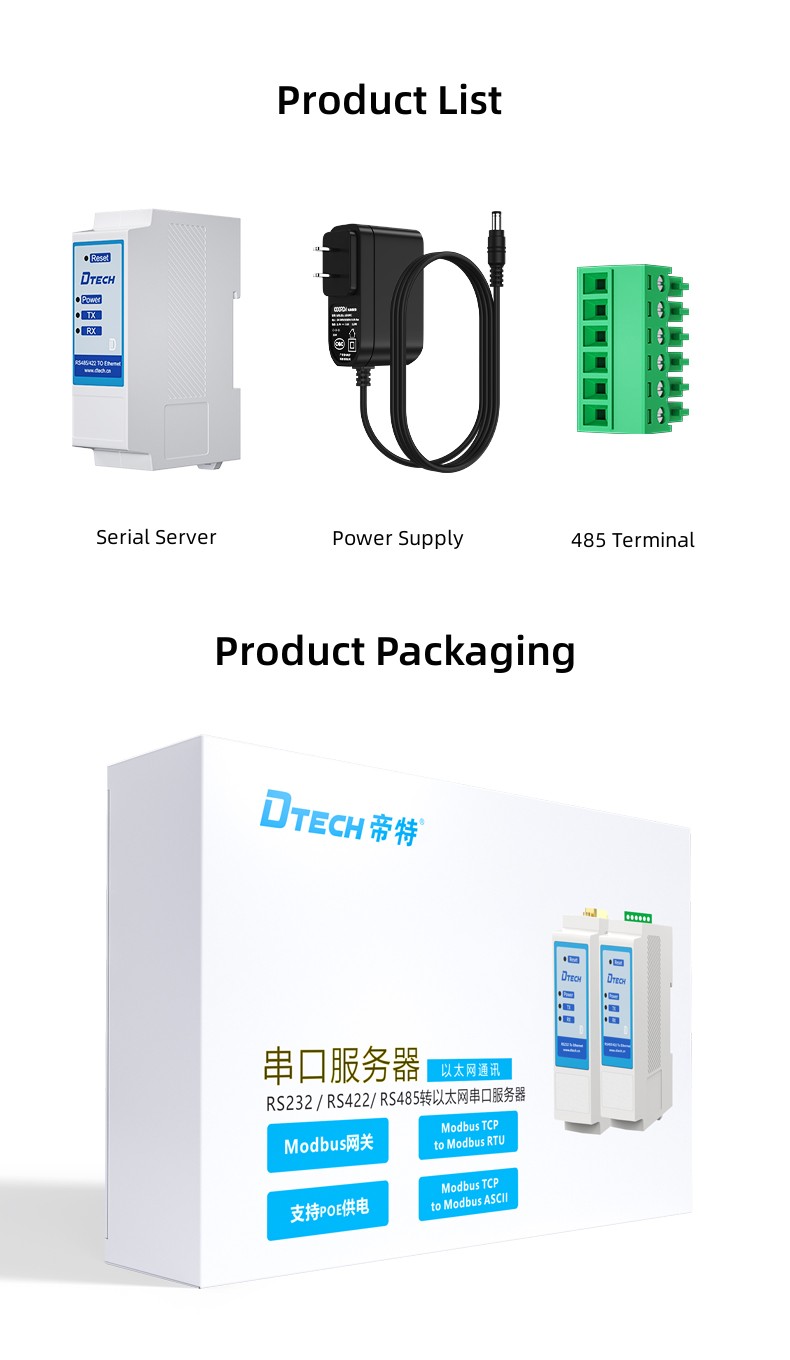

Ⅳ.Product Packaging
