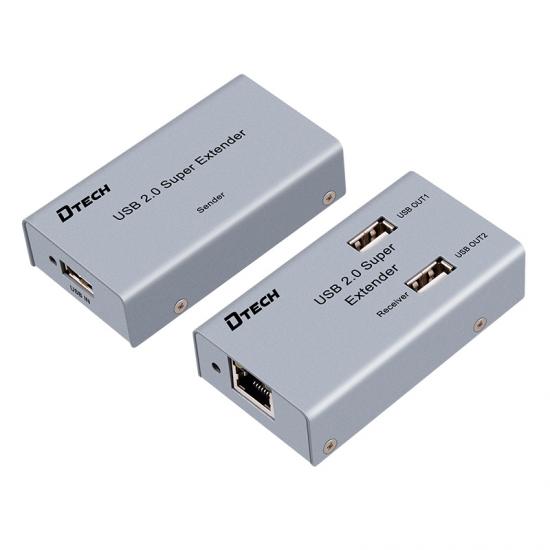

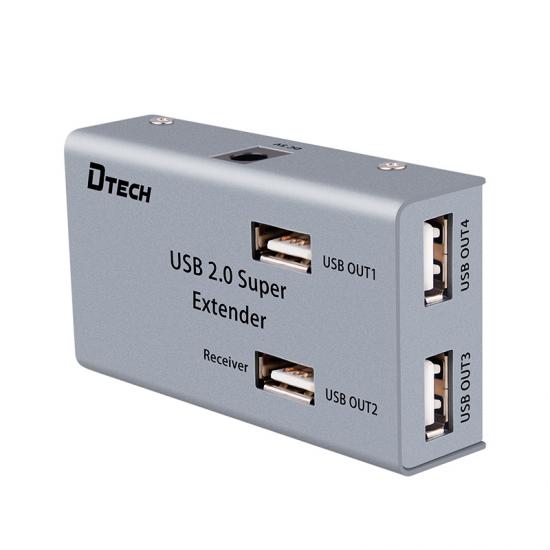

Micro USB 2.0 Extender 50M 4 Ports via Single LAN Cable CAT5E 5V/1A USB Extender for Camera Printer Mouse

This USB2.0 extender adopts USB standard 2.0 protocol, compatible with 1.1 protocol. It can break the constraint of computer host to USB cable length. Users can connect a standard USB port via the sender’s end at the computer host, and can use 4 standard USB ports at the receiver’s far end via single LAN cable. It can be widely used in the fields of computers, education, bank security systems etc.

Product Origin:
china
Brand:
DTECH
Item NO.:
DT-7014A
Shipping Port:
guangzhou/shenzhen

Product Details

Connection instruction

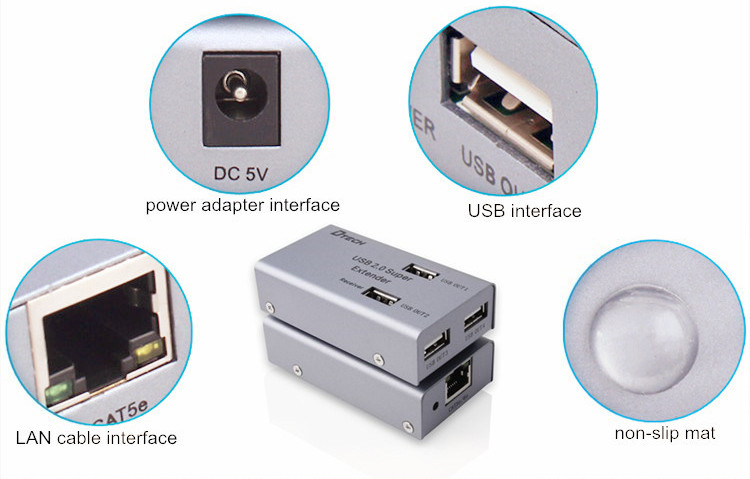

1. Connect one end of the AM data cable to the computer host, the other end to "USB IN" port of extender’s sender , the sender no need power supply.

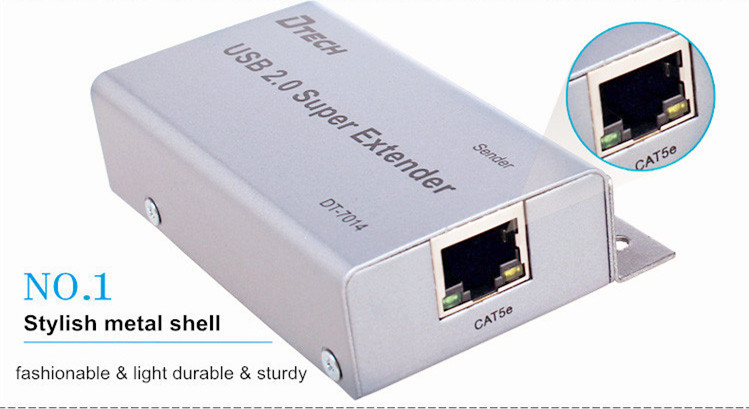

2. Connect one end of the LAN cable to the sender’s "CAT5e" port, the other end to the "CAT5e" port of the receiver.

3. Insert the 5V output of power adapter into the extender’s power ports, plug external USB device to "USB OUT" port.

Product parameters

1. USB signals transmitted by a single LAN cable, easy to use and install, it can be extended up to 50m via LAN cable.

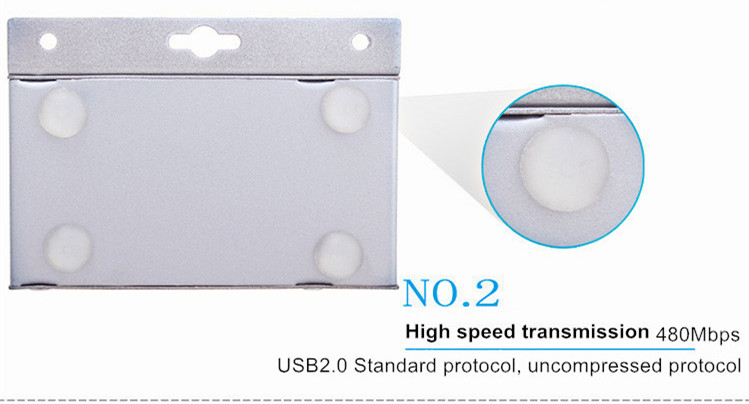

2.USB2.0 interface, transfer rate up to 480Mbps, backward compatible with USB1.1

3. Transmit uncompressed signals, transmit speed can reach the USB2.0 standard speed.

4. Supports standard CAT5/CAT5E and CAT6.

5. Can connect all USB devices, printers, network cameras, hard drives, mobile phones, digital cameras, game controller, etc.

6. Rated input voltage:5V; input current: external power supply 1000mA

7. Operating temperature range (-15℃ to +75 ℃)

8. Product Dimensions: sender, receiver (L * W * H) 82X45X22 (mm)

9. Product net weight: 205g±10g

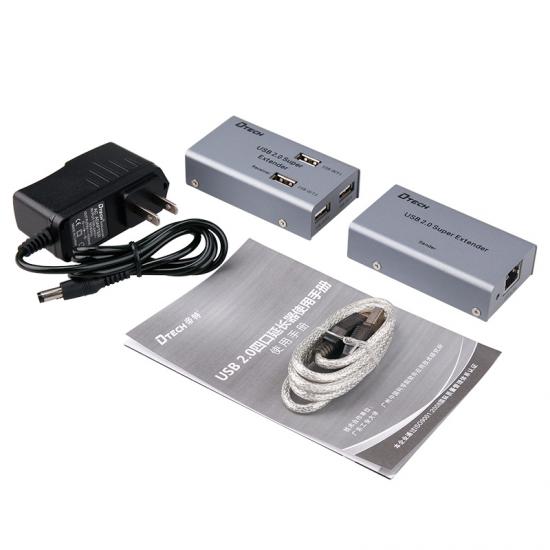

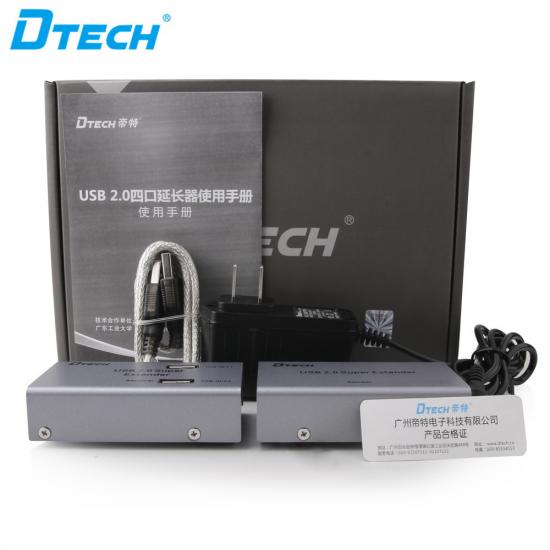

Package and accessories

1. USB 2.0 Extender (sender & receiver)*1pc

2. USB AM-AM Data Cable *1pc

3. 5V/1A power adapter *1pc

(Please use our power adapter, if use other power adapter and result in product damage, not belong to the warranty scope.)

4. user manual *1pc
