Product Origin:
ChinaItem NO.:
IOT9011Shipping Port:

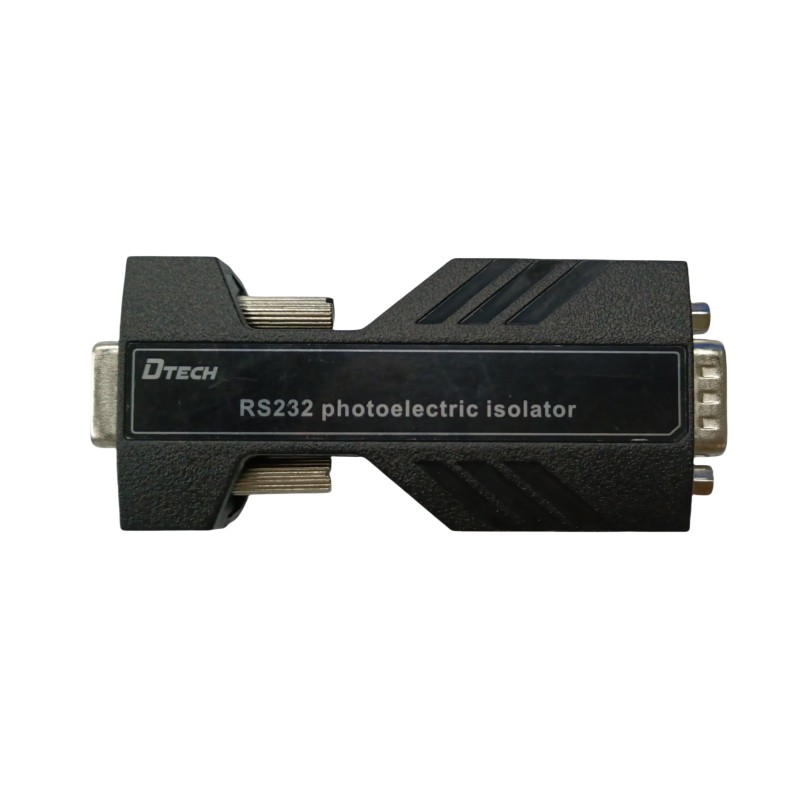

Guangzhou/ShenzhenIOT9011 Industrial RS232 to 232 Converter DB9 Serial Photoelectric Isolator Protector
Ⅰ.Product Parameters
| Product Name | RS232 Optoelectronic Isolator |
| Model | IOT9011 |
| Interface | Comply with EIA/TIA-RS232-F and CCITT V.24 asynchronous protocols |
| Gender |
M-F |
| Transmission Mode | Asynchronous full-duplex transparent transmission |
| Isolation Voltage | ≦3500V rms |
| ESD Protection | ±15KV IEC61000-4-2 air discharge, ±8KV IEC61000-4-2 contact discharge |
| Transmission Rate |
300bps~115200bps |
| Standard |
Comply with IEC60601-1 requirements |
| Communication Standard Distance | 15m at the front and back ends of the product |
| Power Supply | The product can work normally without external power supply (using serial port charge mercury power supply technology to achieve product self-power supply) |
| Operating Environment | -40℃~85℃, relative humidity is 5%~95% |
| Warranty | 1 Year |
Ⅱ.Product Descriptions
This product is an RS232 serial port isolation protector (ISOLATORS), which uses advanced digital isolation technology to protect the devices at both ends of the RS232 serial interface, avoiding damage to RS232 devices caused by environmental factors such as ground loop voltage, surge, inductive lightning, static electricity, hot plugging, etc., and improving the stability of equipment operation.

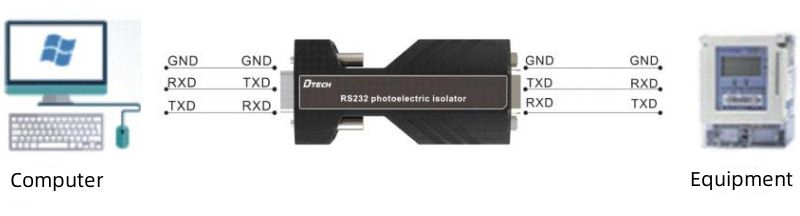

Ⅲ.Product Connection Diagram
DT-9000 is compatible with RS-232C,RS422, RS-485 standard.
DT-9003 is compatible with RS-232,RS422, RS-485 standard.
A reliable and stable point-to-point and point-tomultipoint communication can be ensured by DT-9016 photoelectric RS485 isolation interface converter.
Compatible with the Recommended Standards of RS-232C, RS-422 and RS-485, UT-208 photoelectric isolation interface converter can convert the single-ended RS-232 signal into balance differenced RS-422 or RS-485 signal.
DT-9028 is an industrial-grade optical isolation multifunctional converter with external power supply, it compatible with RS-232/RS-485/RS-422 standard.
DT-9077 fiber modem implements advanced optic transmission technology to extend signal transmission distance up to 120km on single-core fiber
Dtech Passive RS232 to RS485 Standard Converter High Quality plug and play DB9 Adapter
This product is a RS232/ RS422/ RS485 to TCP/ IP serial port server, with internal integration of TCP/ IP protocol stack , which can realize two-way transparent transmission of network data packets and serial data , with TCP CLIENT, TCP SERVER , UDPCLIENT, UDP SERVER , etc. Four working modes , the serial port baud rate can support up to 115200bps , which can be easily configured through the host computer software that this product is equipped with , which is convenient and fast. Products are widely used in industrial automation control systems , access control systems , time and attendance systems , credit card systems , POS systems, building automation systems, power systems , monitoring systems, data acquisition systems andbank self-service systems .
Active rs232 photoisolator 9 wire full optically isolated protection 2000vrms optically isolated
This converter can provide reliable connectivity for point-to-point or point to multipoint communication .Data communication rate is 300bps~38400bps..Supported communication methods is RS-232 to RS-485 converter.
Converter is compatible with the RS - 232, RS - 485 standard, can be an RS - 232 signal is converted to Differential signaling of the RS - 485 / RS422, without external power supply, internal adopt unique "RS - 232 charge pump" drive the whole circuit; Circuit with zero delay automatic transceiver conversion device, prevent collision of the I/O circuit automatic control data flow direction, so as to ensure the programs written in the RS - 232 manner without change, can be in the safe operation of the RS - 485 / RS422 mode, and fully ensure that suitable for the operation of the existing software and hardware interface.
