HDMI 2.0 4K 2K HDMI MATRIX SWITCH 4*4 DTECH DT-7030 4k HDMI Matrix 4 To 2 4

This HDMI 2.0 matrix 4x4 can connect four high-definition signal sources and four

high-definition signal terminals simultaneously.

Brand:
DTECH
Item NO.:
DT-7030
Shipping Port:
guangzhou/shnzhen
Color:
sliver
Lead Time:
7-15days

Product Details

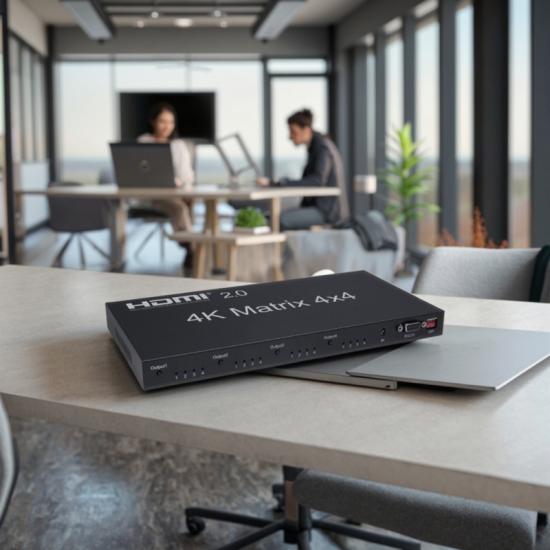

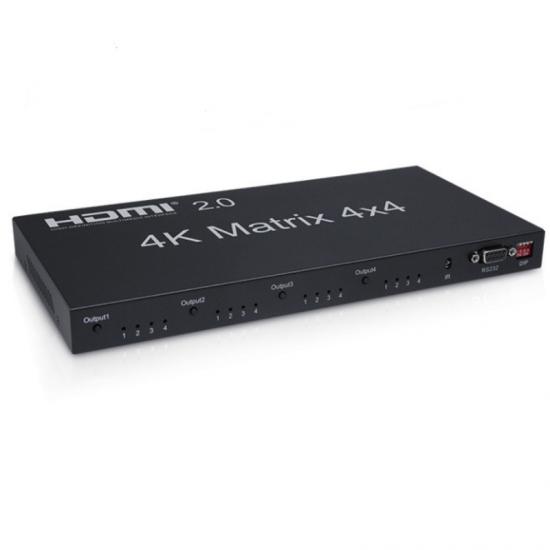

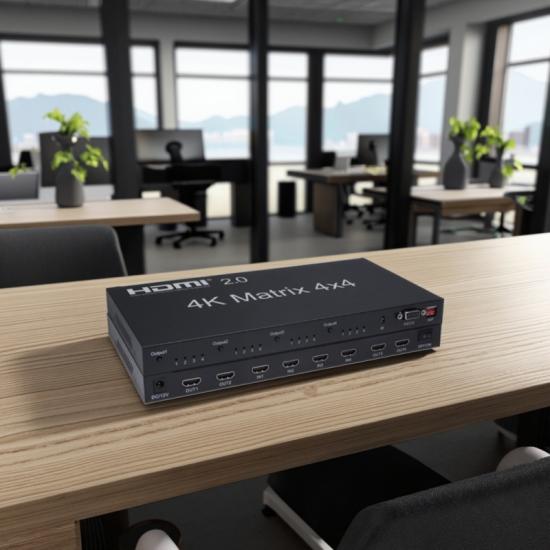

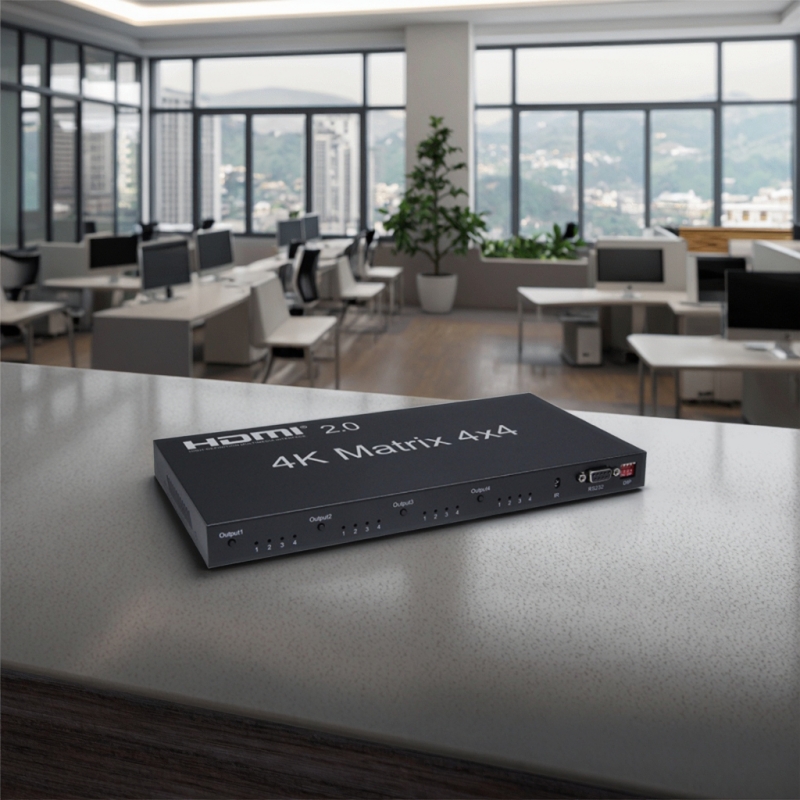

HDMI 2.0 4K 2K HDMI MATRIX SWITCH 4*4 DTECH DT-7030 4k HDMI Matrix 4 To 2 4

Introduction :

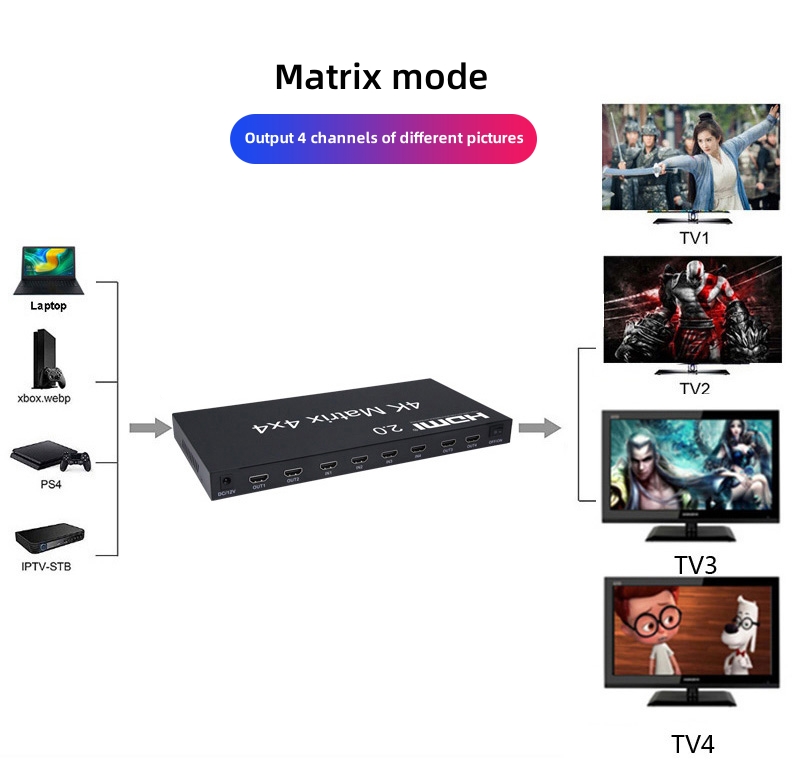

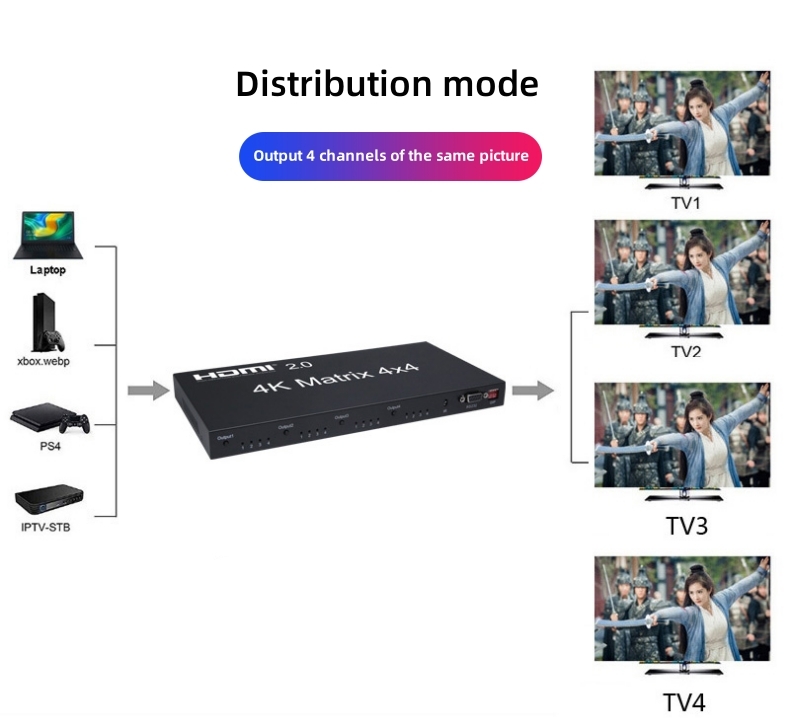

This HDMI 2.0 matrix 4x4 can connect four high-definition signal sources and four high-definition signal terminals simultaneously. It can It is easy to freely switch or distribute the four HD signals on four monitors or projectors compatible with HD signals.

Support RS232 remote control.

The HDMI matrix 4x4 reforms and amplifies the input signal, and transmits it through HDMI cable without loss.

This HDMI matrix provides The solution is applied to entertainment centers, retail and websites of digital high-definition television programs, high-definition televisions, set-top boxes, DVD and projector factory, noise, space and safety issues, data center control, information distribution, conference room introduction, school and corporate training environment.

Features:

* Compact structure

* Stable and reliable

* Affordable and cost-effective

* Support 3D;

* Support RS232 control;

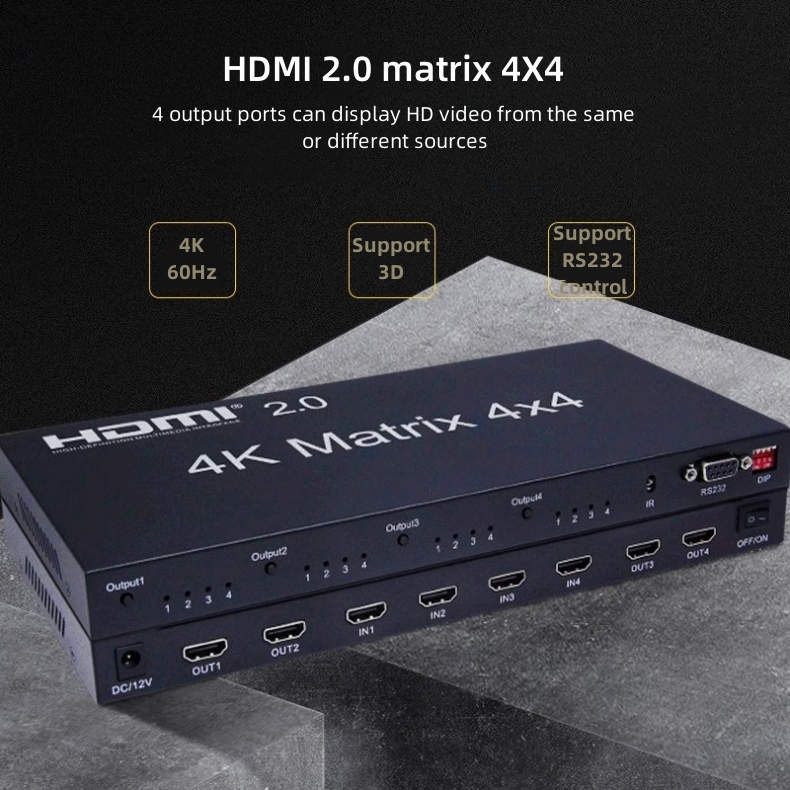

* 4 output ports can display ultra-high-definition video of the same or different

sources;

* Support 4K (input) to 2K (output) (Downscaling)

Specification:

HDMI version..................................................... HDMI2.0/HDCP2.2

HDMI resolution......................................... .... Up to 4K/60Hz

Support video format............................................... ..... 8/10/12 bit color depth

Support audio format .........DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Maximum transmission rate............................................ ............ 18Gbps

Input cable length............................................ .........≤10m AWG24

Output cable length............................................ .........≤10m AWG24

HDMI input port............................................ ............... 4

HDMI output port............................................... ............... 4

Maximum working current............................................... ..... ........ 1.6A

Power adapter specifications ................ Input: AC (50HZ, 60HZ) 100V-240V; Output:

DC12V/2A

range of working temperature............................................... .....(-15 to +45℃)

Operating humidity range........................................ 5 to 90%RH (no condensation)

Dimensions (length*width*height).......................................... .......276x143x26(mm)

weight................................................. .................. 720.5g

Product Details:

HDMI V2.0 Matrix 4x4

Connection:

Application:
