DTECH IOT9024I RS485 Photoelectric Isolation Hub 4 ports

New Products

DTECH IOT9024I RS485 Photoelectric Isolation Hub 4 ports

  • Product Origin:

    China
  • Brand:

    DTECH
  • Item NO.:

    IOT9024I
Product Details

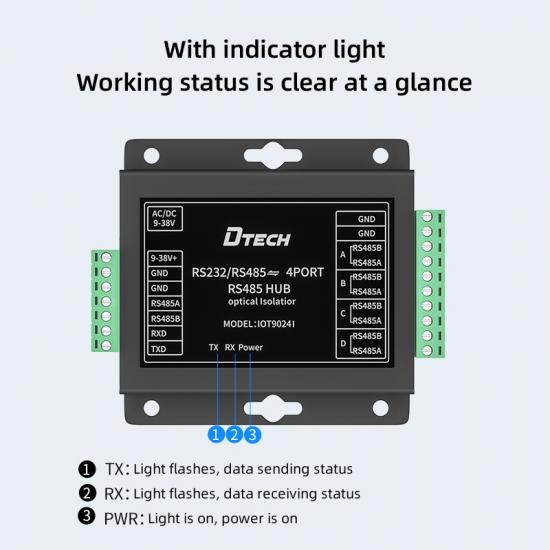

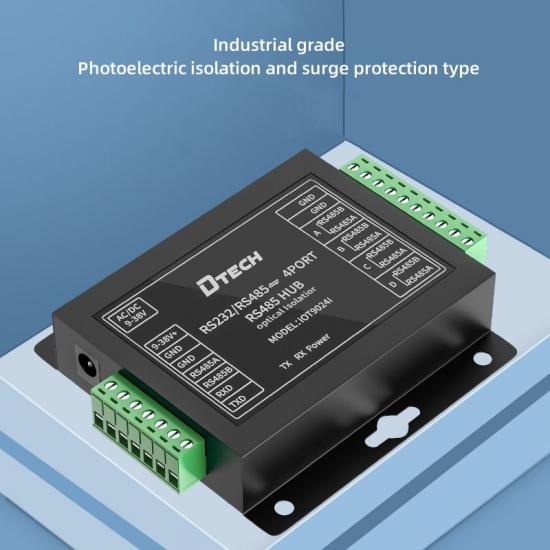

DTECH IOT9024I RS485 Photoelectric Isolation Hub 4 ports

Ⅰ. Product parameters

Product name RS-485 photoelectric isolation hub 4 ports
Model IOT9024I
Communication mode Compatible with RS-232, RS-485 TIA/EIA standards
Communication rate 300bps-921600bps
Communication distance 1200m
Working power supply DC9-38V
Working mode Asynchronous half-duplex (RS-485)
Photoelectric isolation 2500Vrms per port

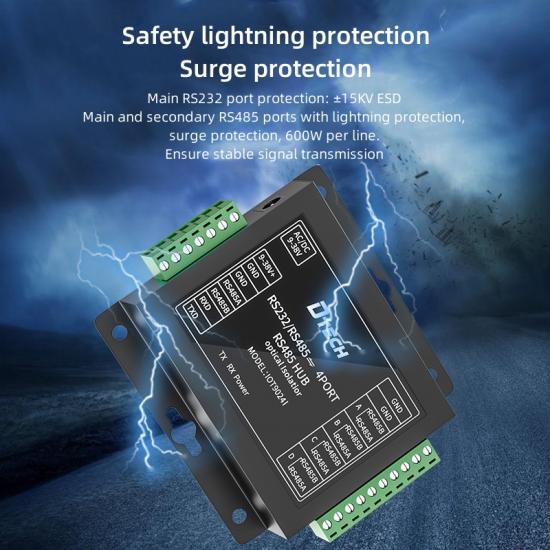

Lightning and surge protection RS-485 provides 600W lightning protection, surge, ±15KV per line ESD protection and prevention of common ground interference
Use environment -20℃ to 80℃, relative humidity 5% to 95%
System support Applicable to the communication software used, plug and play

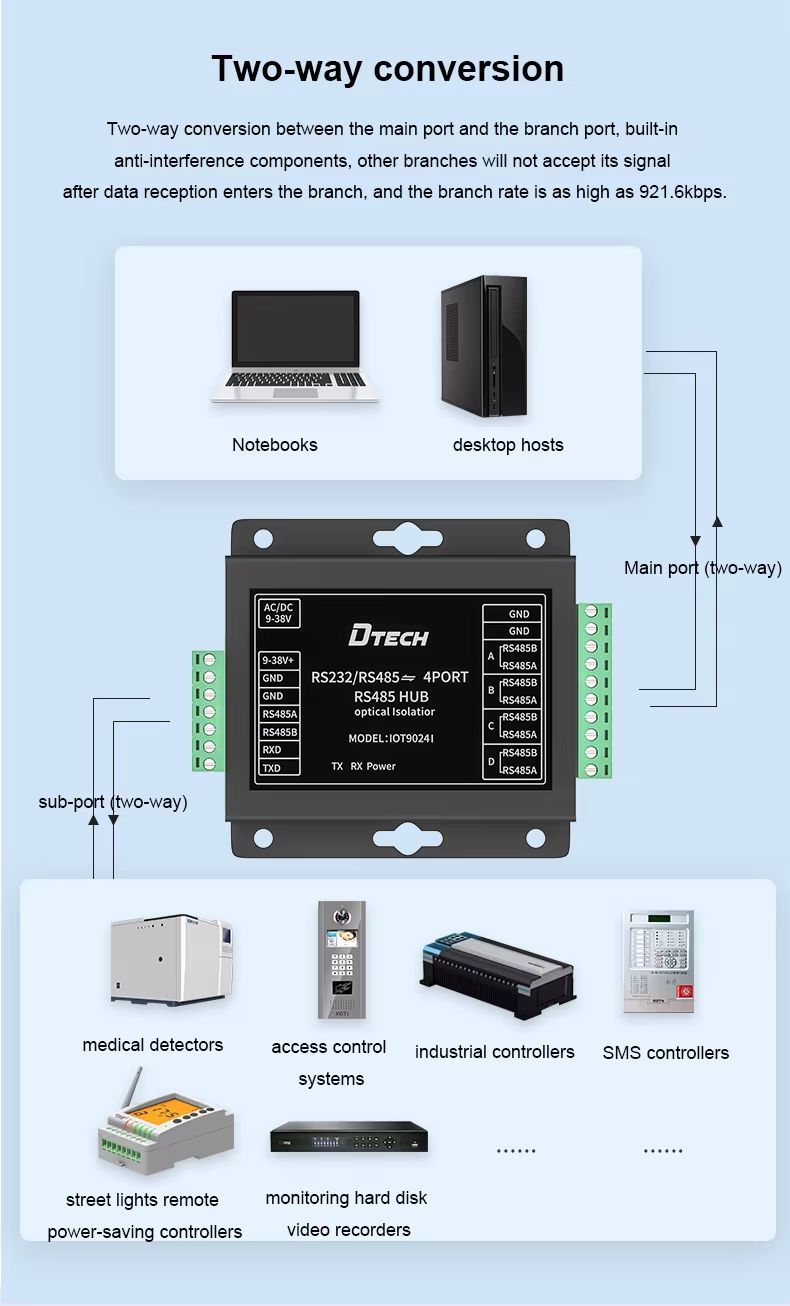

Functional features Each group can send and receive data separately (no need for multiple buses to switch between send and receive modes at the same time), each group can connect 32 RS485 devices.
Warranty 1 Year

Ⅱ. Product description
