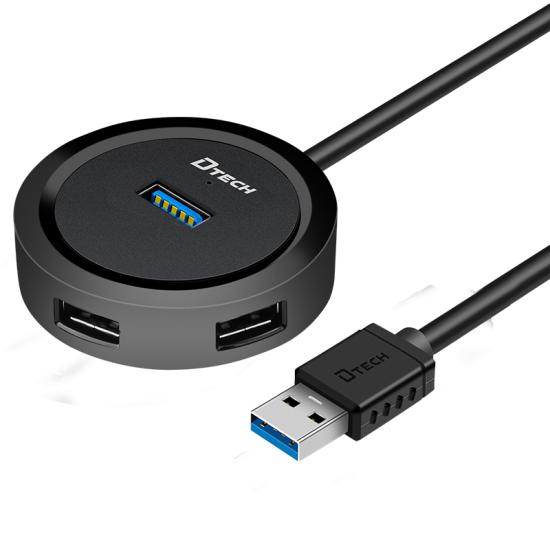

Micro USB 3.0 HUB 4-Port Black 5Gbps 2.4A Multi-Port Charger USB High Speed Expansion HUB for Mouse Keyboard Camera Printer

New Products

Micro USB 3.0 HUB 4-Port Black 5Gbps 2.4A Multi-Port Charger USB High Speed Expansion HUB for Mouse Keyboard Camera Printer

It supports BC1.2 charging function, charging current of each port can be 2.4A maximum. With off-line charging function, no need connect computer. It can become a multi-port charger when connected with a USB power adapter, can charge for cell phone/pad and other digital devices.

  • Product Origin:

    CHINA
  • Brand:

    DTECH
  • Item NO.:

    DT-3309
  • Shipping Port:

    guangzhou/shenzhen
Product Details

1. Adopts GL3525 original chip with high performance and low power consumption. Can rapidly expand 4 independent port hub for computer and laptop. It will make USB3.0 transmission more stable when connect to U disk, keyboard, mouse, mobile HD etc.

2. Equipped with micro USB charging port, can supply power for super power devices, no need to equip DC charger, more convenient than DC charging.

3. Supports off-line charging, supports 2.4A fast charge.

4. With LED indicator, more convenient to use.

5. Adopts safe data circuit protection design, with built-in over current, over-voltage, electric leakage protection module.

6. The cable use multi-layer weave, pure copper shielding technology, effectively resist to electromagnetic interference.

7. Electrostatic discharge voltage protection: ±8KV

8. Working temperature

  40-50(ambient temperature 20)

9. Electrical specification

   Rated input voltage: DC 5V

   Input current: external power supply 1000mA~4000mA

10. Product specification: 59.35mm*59.35mm

  Net weight:45g

Product list

HUB*1pc

qualification*1pc

Manual*1pc

Packing box*1
