DTECH DT-7442 4k HDMI Matrix 4 To 2

HDMI Matrix switcher mainly used in Radio and TV projects ,Multiple function meeting system ,multiple meeting hall ,super screen projects ,TV teaching ,Command and control center and some occasion which have very high inquiry to image sharpness.Detailed application field like :Teaching ,Hospital discussion meeting ,Government business ,Enterprise meeting ,Monitoring command etc.

  • Brand:

    DTECH
  • Shipping Port:

    guangzhou/shnzhen
  • Color:

    sliver
  • Lead Time:

    7-15days
Product Details

DTECH DT-7442 4K HDMI MATRIX 4 TO 2

Features:

1. Support multiple HDMI signal cross switch to multiple display euipments

2. Support HDMI 1.4b version ,support 3D format

3. Support 3840*2160@30Hz

4. TMDS bandwidth is 340MHz at the rate of 8G

5. Audio format DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / DOLBY-AC3 / DSD / HD (HBR)

6. With ARC function products ,support ARC function

7. With Audio output products ,support 2.1 channel earphone output

8. With SPDIF and coaxial port products ,support 5.1 channel SPDIF and coaxial digital audio output

9. Support IR control ,Button(Touch) switch ,serial port ,APP etc control way.(Applicable models)

10. With Timer switch 60/90 seconds auto switch function

11. Use AWG24 HDMI standard cable ,transmission distance up to 30m ,input and output is 15m separately .

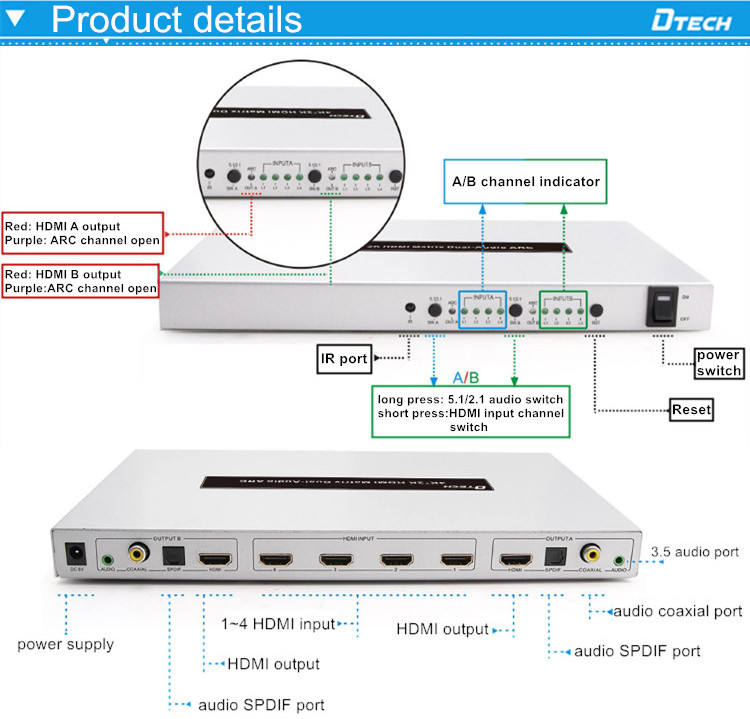

Product Details:

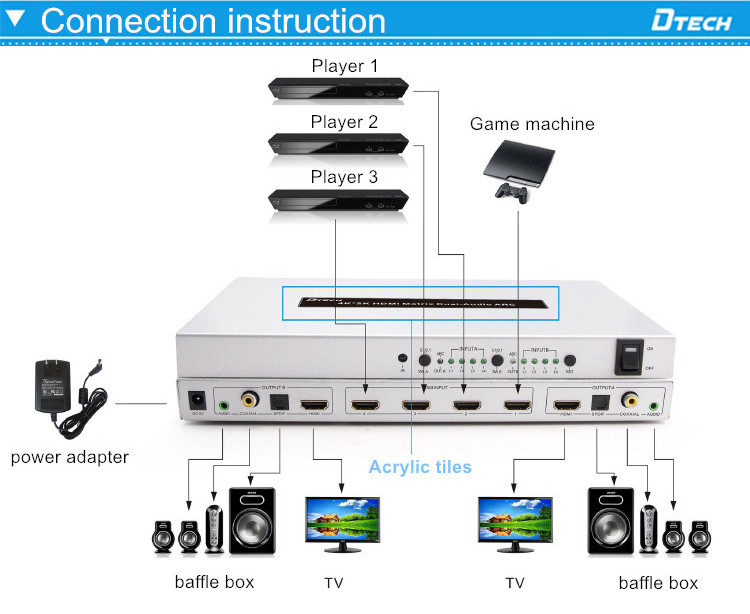

Connection:

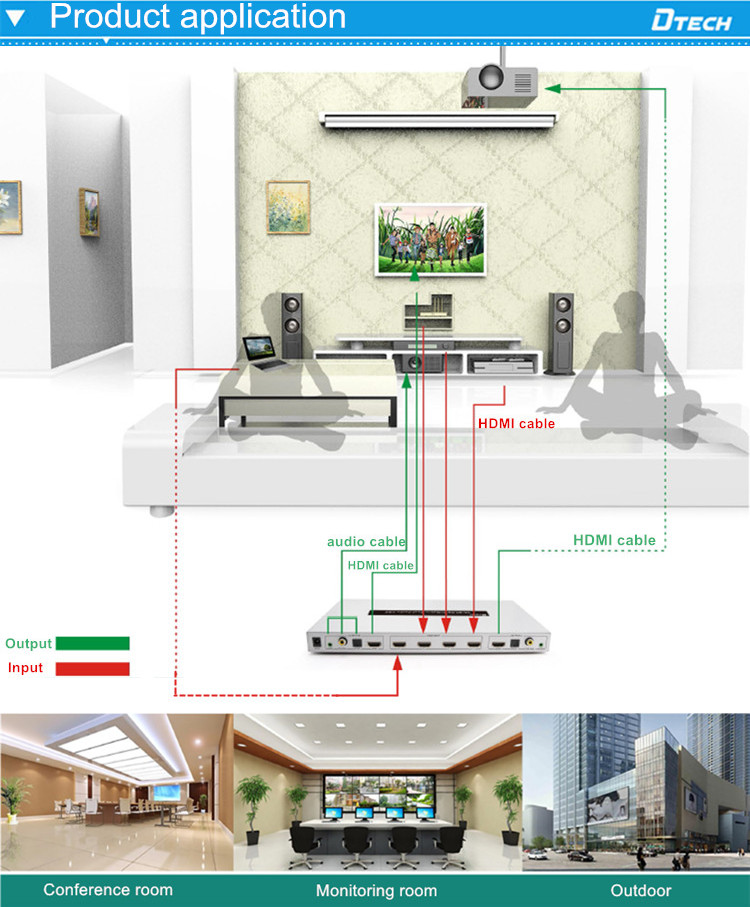

Application:
