Product Origin:
ChinaBrand:
DTECHItem NO.:
DT-5001A(GT)Shipping Port:

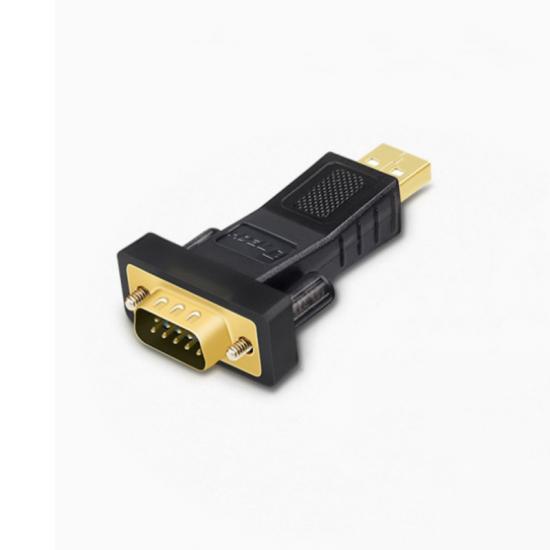

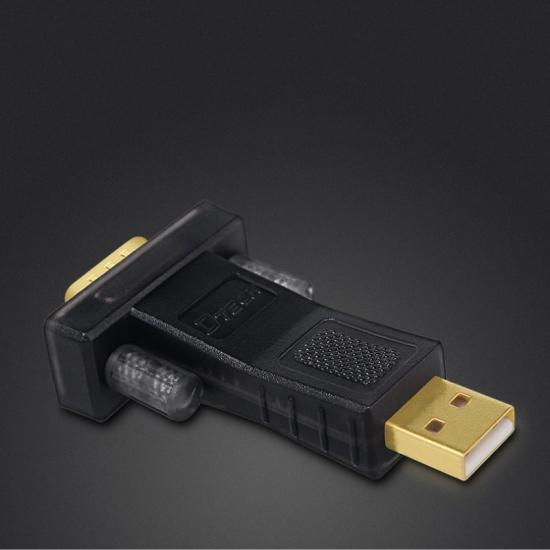

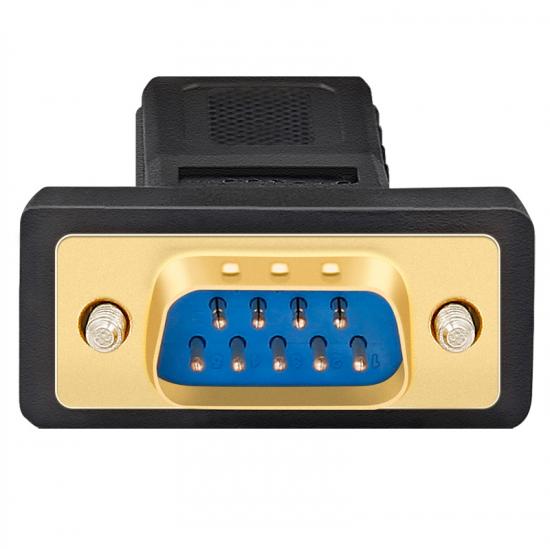

Guangzhou/ShenzhenDTECH DT-5001A(GT) Printer Data Converter Type A USB 2.0 to RS232 Serial Port DB9 9Pin Adapter
Ⅰ.Product Parameters
| Product Name | USB to RS232 Adapter |
| Model | DT-5001A(GT) |
| USB Interface | USB Type A (USB 2.0 specification) |
| Functional Pin | RXD, TXD, GND |
| Baud Rate | 300bps-115200bps (can support 1000000bps) |
| Compatibility |
Compatible with Windows, Wince, Android, Linux and Mac OS system. |
| Chip | Using imported original chip PL2303G series, Support standard serial port protocol. |
| Feature | Anti-electromagnetic interference design, self-powered USB bus |
| Warranty | 1 Year |
Ⅱ.Product Descriptions

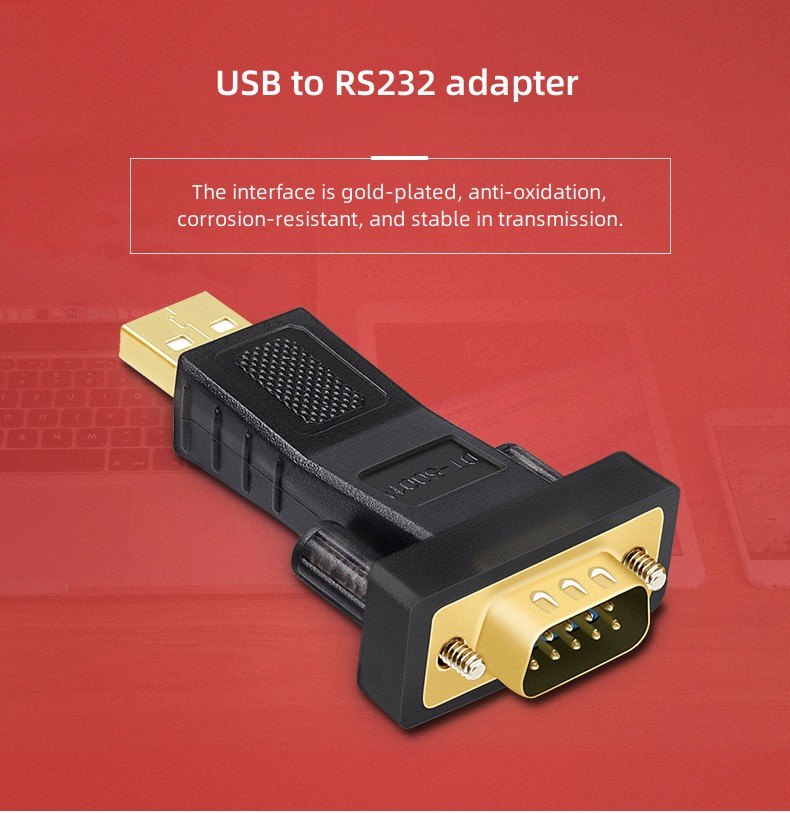

USB to RS232 adapter
The interface is gold-plated, anti-oxidation, corrosion-resistant, and stable in transmission.

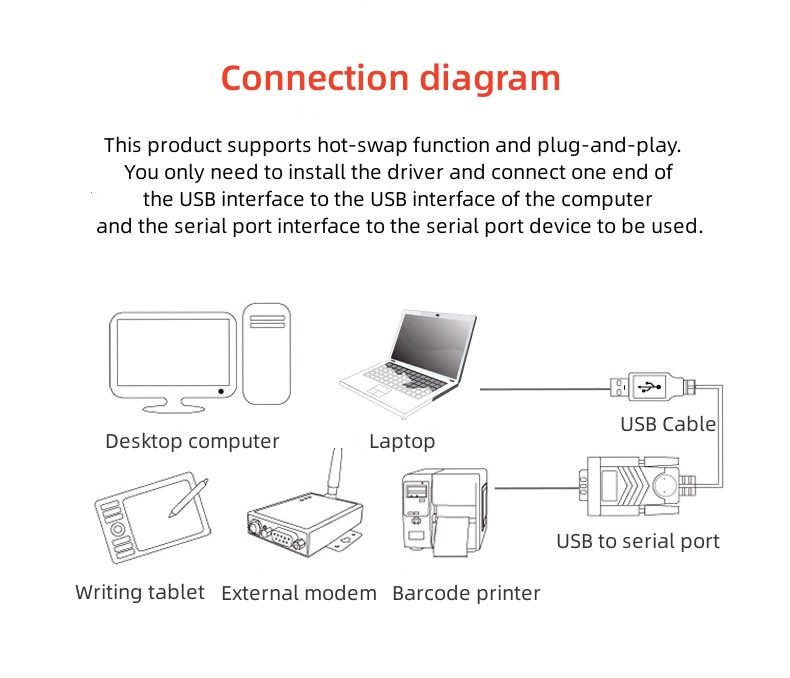

Connection diagram
This product supports hot-swap function and plug-and-play. You only need to install the driver and connect one end of the USB interface to the USB interface of the computer and the serial port interface to the serial port device to be used.
Wide range of applications
Applicable to mobile phones, tablets, Modems, ISDN-TA, barcode scanners, label printers, CNC machines, engraving machines, cluster telephones, serial switches, industrial serial devices, intelligent serial devices and other serial devices. It has a wide range of applications, including electronic equipment, shopping malls, offices, security systems, etc.

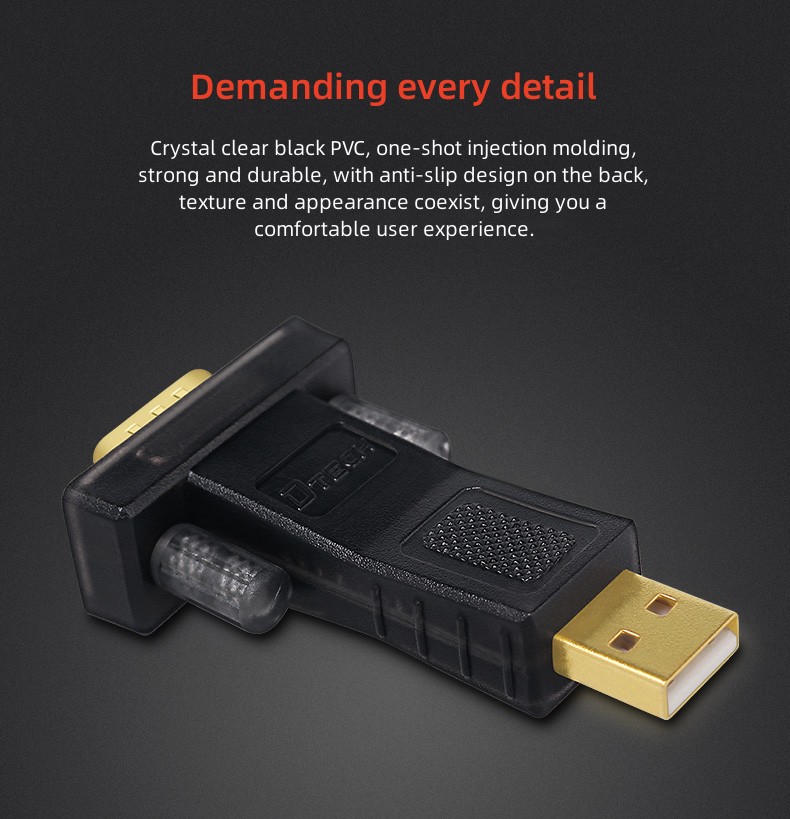

Demanding every detail
Crystal clear black PVC, one-shot injection molding, strong and durable, with anti-slip design on the back, texture and appearance coexist, giving you a comfortable user experience.

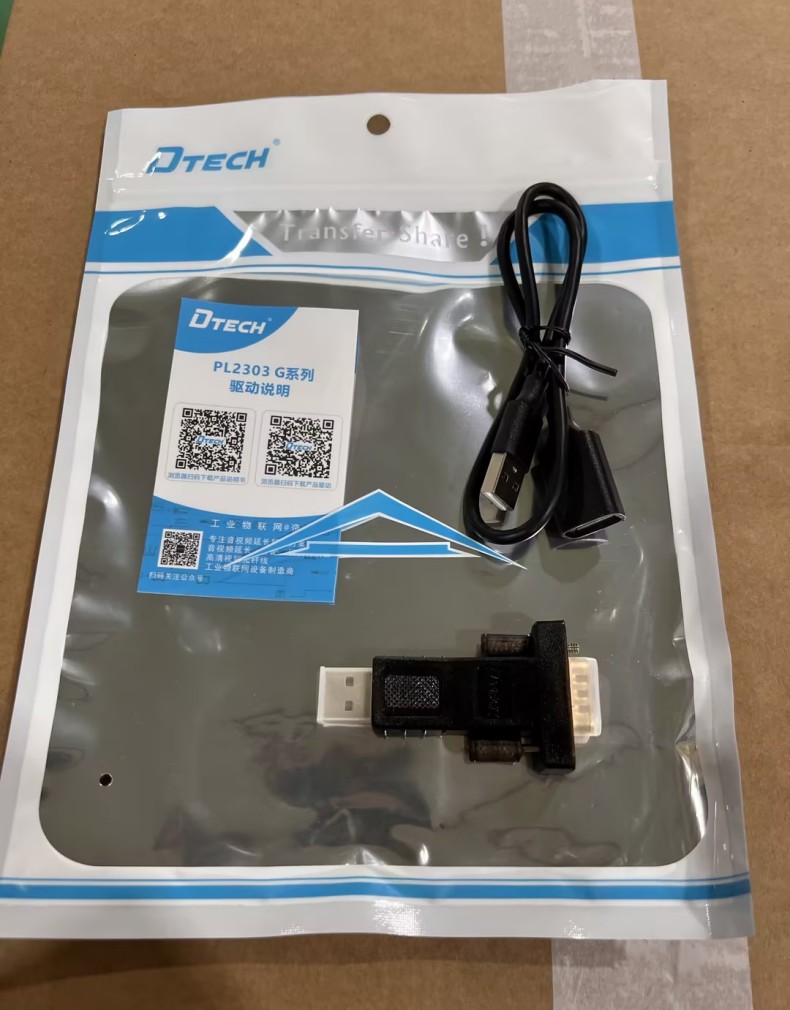

Ⅲ. Product List
