DTIB-0708 is a kind of RS232 system communication serial port optic isolation product.
Product Origin:
ChinaBrand:
DTECHItem NO.:
DT-9011Shipping Port:
Guangzhou/ShenzhenColor:

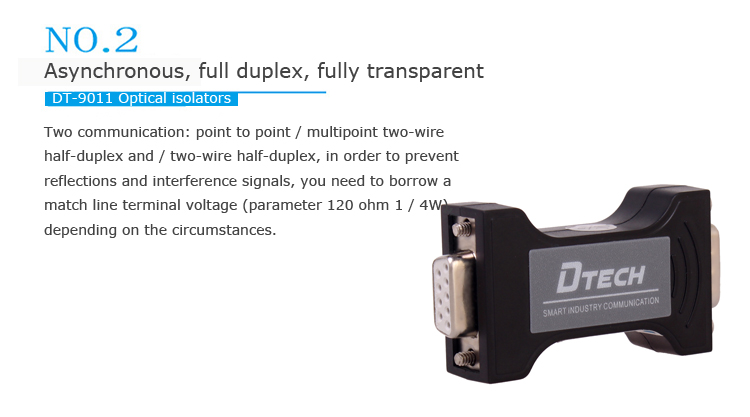

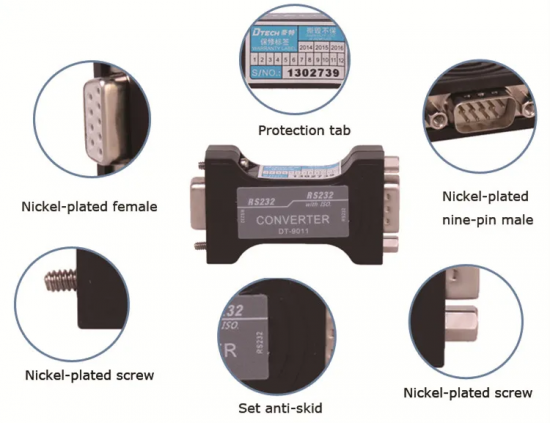

blackDTECH DT-9011 Passive RS232 photoelectric isolation protector
Feature:

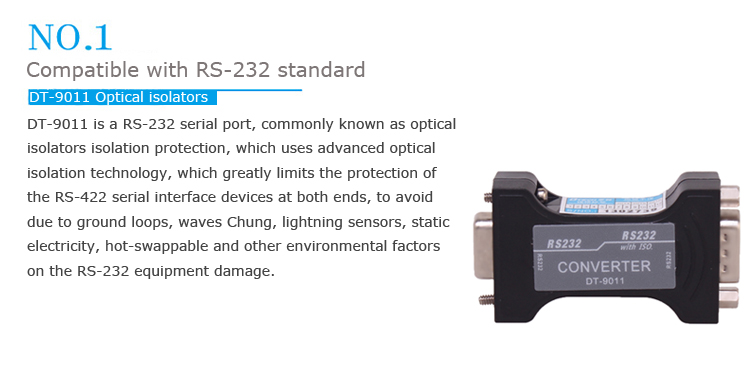

1. Standard: EIA RS-232 standard
2. RS-232 signal: TXD,RXD, GND
3. Working: Asynchronous, point to point
4. Transfer rate: 300-912600bps,auto sense serial signal rate
5. Isolate signal: TXD,RXD, GND

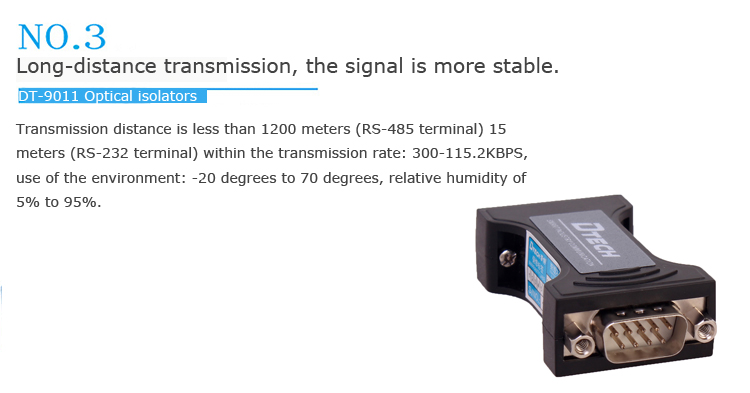

6. Transfer distance: 5m

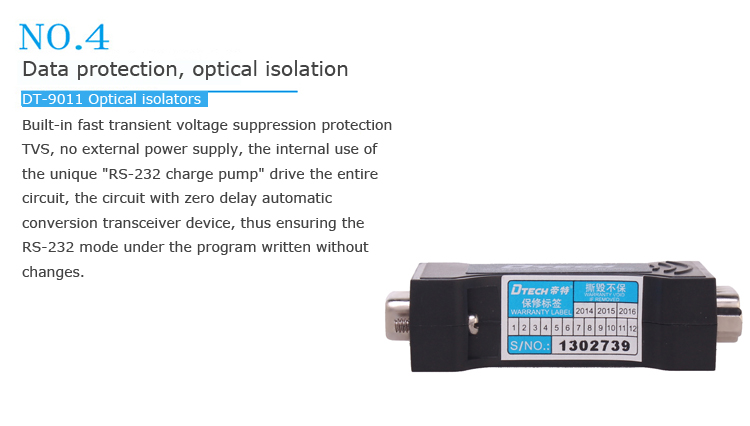

7. RS-232 port protection: 600W surge,15KV ESD protection
8. Isolation: 5000V
9. Port type: DB9F, DB9M
Details:
