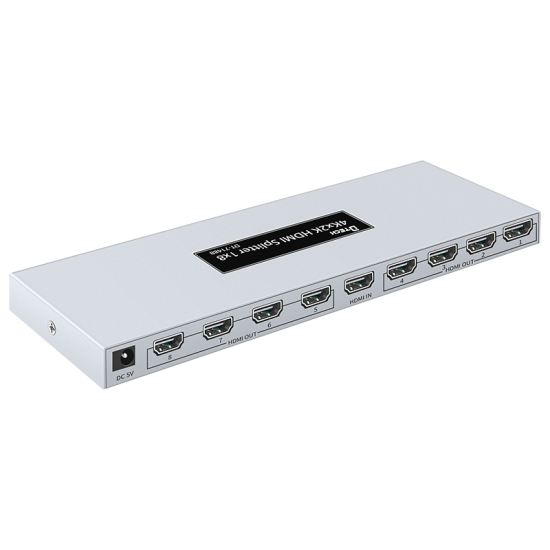

This is an ultra-high-definition HDMI splitter that supports 3D and 4K * 2K resolution. It can easily distribute one ultra-high-definition signal to multiple displays that support ultra-high-definition signals. In addition, when it is connected to the signal output end of an HDMI cable, the HDMI signal can be amplified. The HDMI splitter can be widely used in all fields that require HDMI signal distribution and combination: military industry, multimedia teaching, video conference, large screen display, exhibition, finance, scientific research, meteorology, supermarket, conference system and other fields.
Product Origin:
chinaBrand:
DTECHItem NO.:
DT-7148B（MS）Shipping Port:

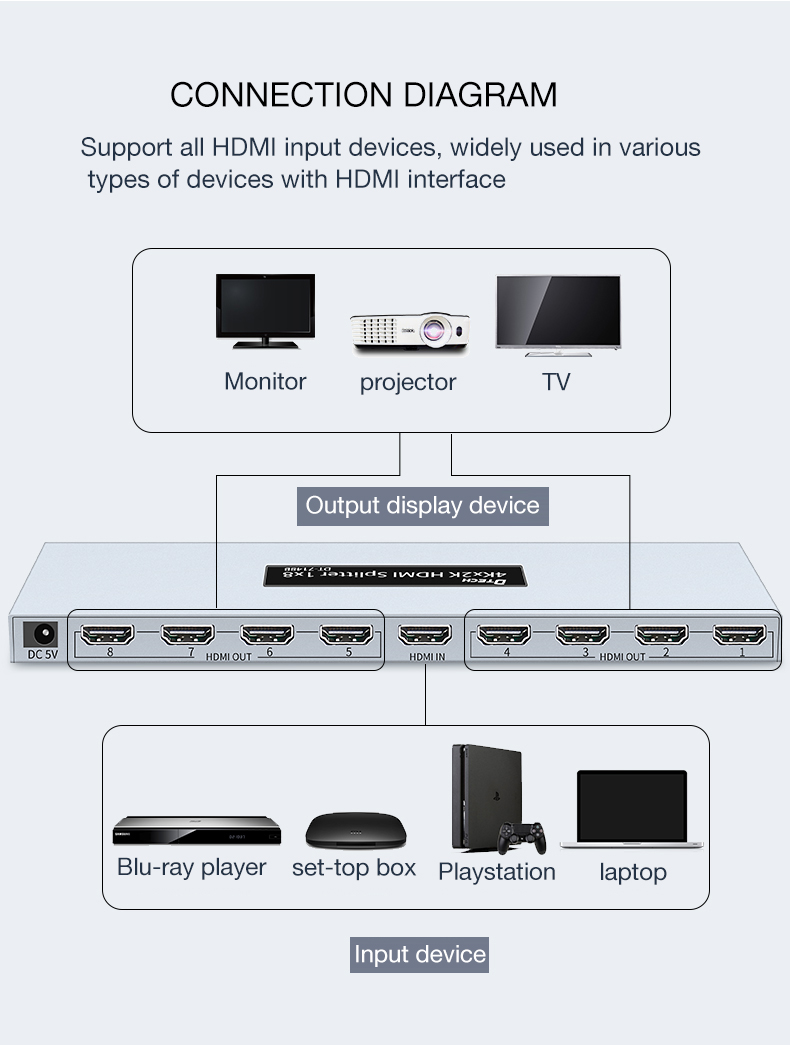

guangzhou/shenzhen1. Allocate one HDMI signal input to multiple HDMI signal outputs
2. Perfect support for 3D signals
3.Support 4K * 2K resolution
4. Support CEC
5.Support 340MHz / 3.4Gbps single channel bandwidth
6.Support 24-bit / 30-bit / 36-bit / 48-bit dark
7.Audio format DTS-HD / Dolby-trueHD / LPCM7.1 / DTS / DOLBY-AC3 / DSD / HD (HBR)
8.Using 26AWG HDMI standard cable, the transmission distance of the input end can reach 5 meters, and the transmission distance of the output end
Up to 10 meters
9. Support signal timing reconfiguration
10. No signal loss
11.Electrostatic discharge voltage protection:
± 3kV

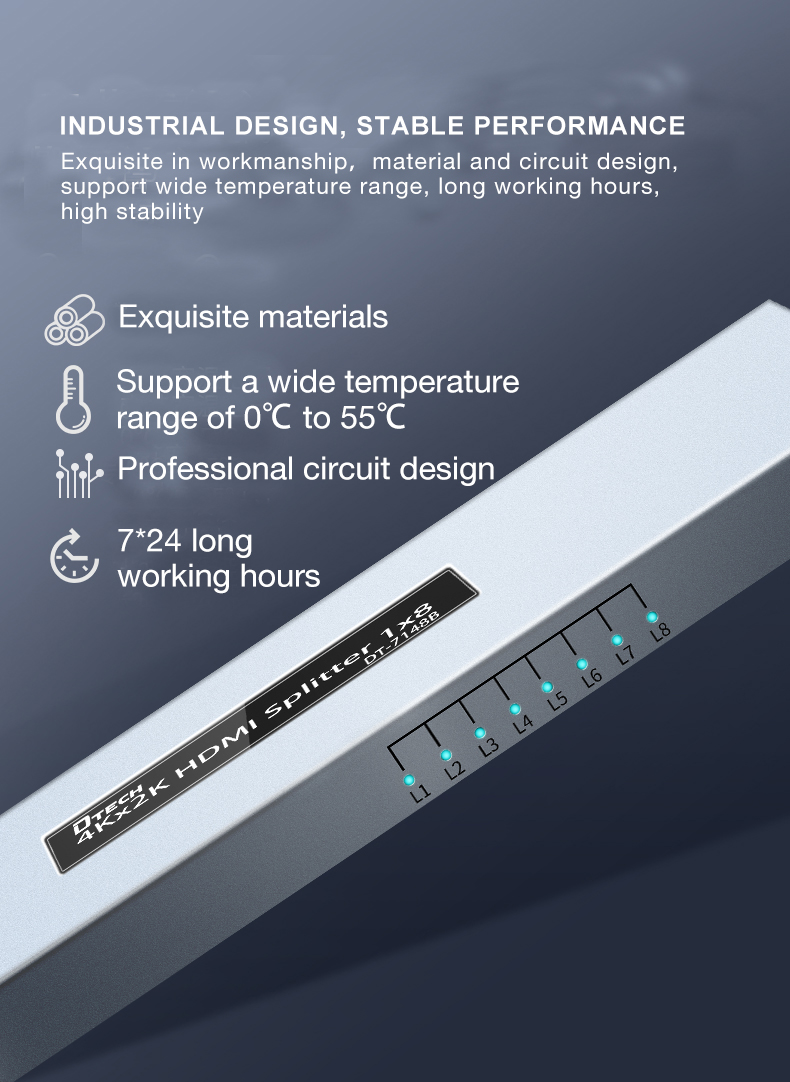

12.Product working temperature:
Product working temperature at room temperature 20 ℃ 55 ～ 65 ℃
13. Electrical specifications:The rated input voltage of this product: 5V2A

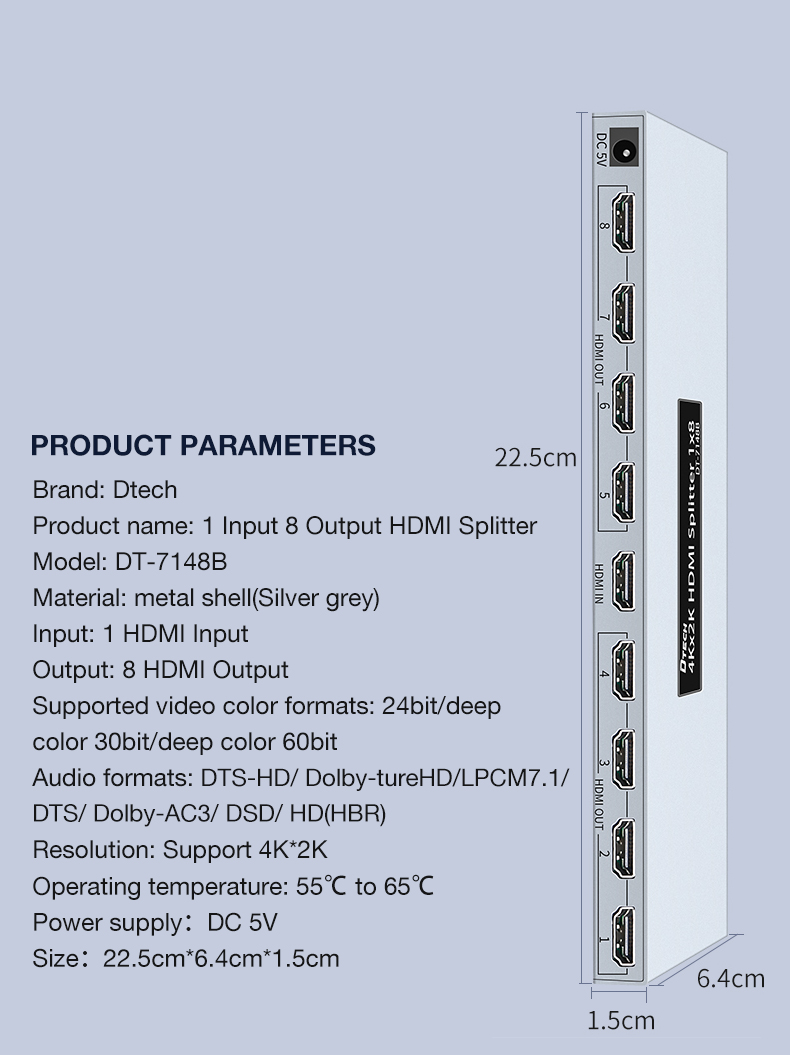

14. Volume weight:
(1) Product volume: 225mm * 63mm * 15mm
(2) Product weight: 340g ± 10g
Note:
1. Adjust the resolution suitable for the product and access the input.
2. The length of the HDMI cable must not exceed the requirements for use of this product.
3. Use the product delivery adapter.
Product accessories
1, 4K HDMI splitter
2, 5V2A national standard 3C power supply
3. An instruction manual
