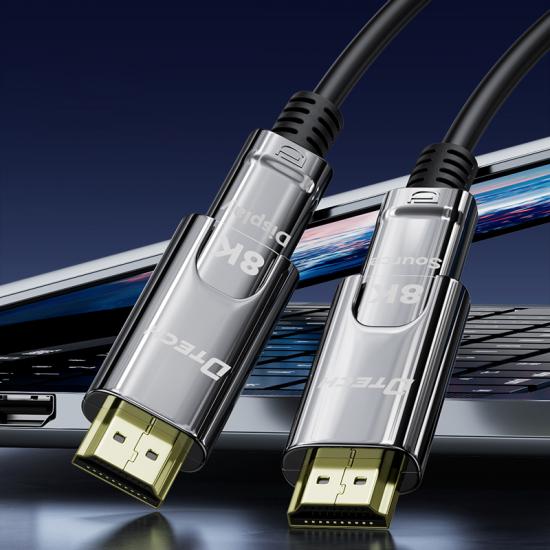

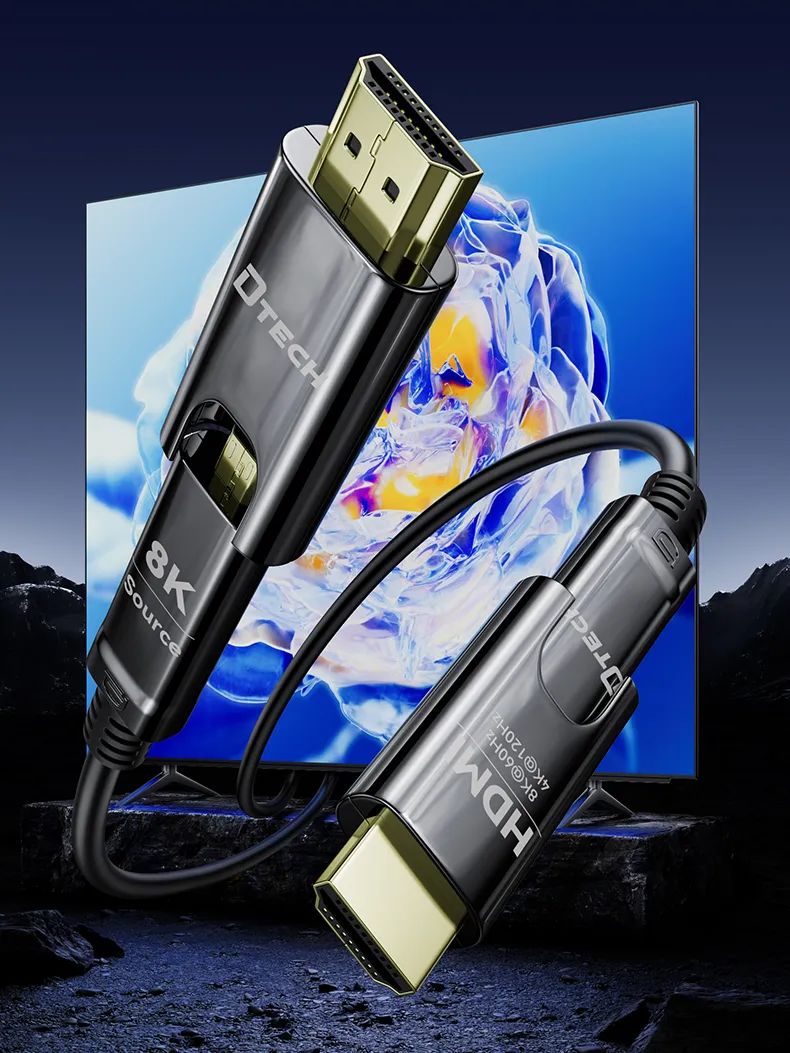

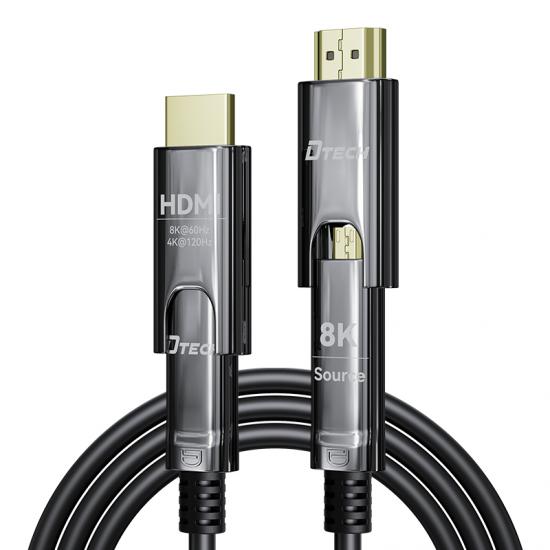

HDMI Cable Optical Fiber Active AOC 3m 5m 10m 50m 100m 4K 8K Hdmi Optical Fiber Cable
Product Origin:
ChinaBrand:
DTECHItem NO.:
DT-HOF300Color:
picture●Application scenarios: digital home theaters, electronic classrooms, security cameras, meeting rooms, auditoriums, LED billboards, outdoor advertising, airport and stadium panel information display,
Product specifications
1. Support protocol: HDMI 2.1/HDMI 2.0/HDMI 1.4 is backward compatible
2. Transmission rate: 48Gbps (12Gbps per channel)
3. Video format: 8K@60Hz/8K@30Hz/4K@120Hz/4K@60Hz/4K@30Hz/1080P
4. Support function: HDCP/EDID/CEC/E-ARC/HDR 10+
5. Cable limit bending radius 20mm

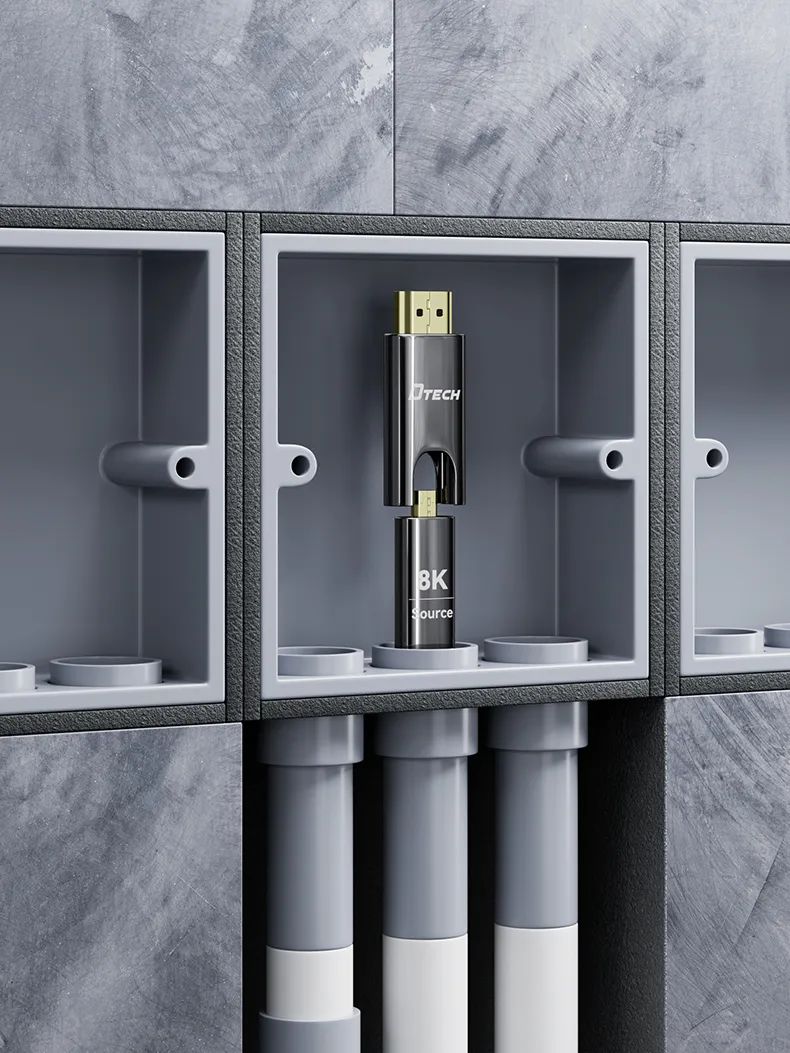

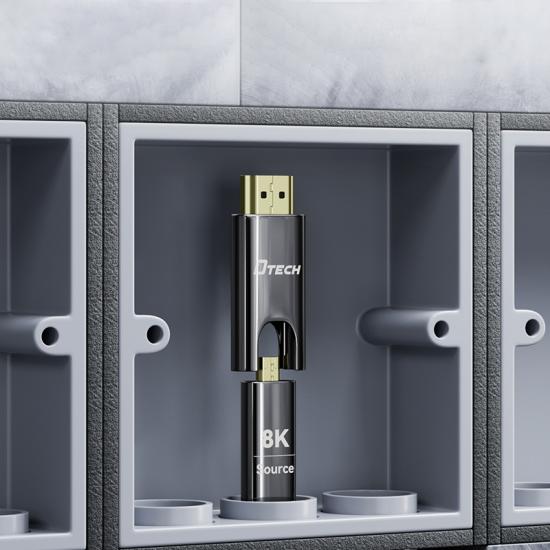

6. HDMID head turn A head, separate size head, flexible and easy to remove
7. The cable can bear a tensile force of 25 kg
8. The cable bears a lifting weight of 15 kg
9. Working temperature (-5℃-70℃)
Installation matters
● Carefully open the contents of the shipping group, close the entire system before connecting
●Insert the "HDMI Source" silver shell connector of the cable directly into the HDMI output port of the video source (DVD, Blu-ray, game case, etc.). Make sure that the cable is firmly inserted.
●Insert the "HDMI Display" black shell interface of the cable into the HDMI input port of the monitor (HDTV, LCD screen, projector, etc.). Make sure that the cable is firmly inserted.
●Turn on the power of the signal source and display Note: Do not connect any intermediate cables or adapters between them, as this may cause the signal transmission performance to decrease.
●Screen distortion or display noise Check if the picture resolution is set correctly for the source. For computer Windows display Show it belongs and click Settings. For other AV video sources, please refer to the manual to adjust the video Resolution. Restart the system. If it is necessary to disconnect the HDMI optical cable.
It is easy to realize 4K * 2K HD images, and supports 720P, 1080I, 1080P, 4K * 2K digital signals. The interface adopts non-slip design, easy to insert, easy to take out, plug and play. The connector uses a zinc alloy shell, which is beautiful and durable. The cable is slim and easy to carry. Includes hook and loop, easy to collect and save space for you.
Dtech Fbier Optic HDMI cables are an easy-to-use,secure connection for home video distribution,conderence room presentation systems,classroom projection systems,digital signage and wherever a high definition video display is located
Dtech Fbier Optic HDMI cables are an easy-to-use,secure connection for home video distribution,conderence room presentation systems,classroom projection systems,digital signage and wherever a high definition video display is located.
A premium quality HDMI-HDMI cable suitable for use in HDTV, Home Theater, Play station 3,A/V receivers, DVD/Blue ray XBOX360 and business class projector based applications; Transfers completely uncompressed audio/video signals at warp speed of 10.2 Gigabytes per second, without compromising purity and balance;
Dtech Fbier Optic HDMI cables are an easy-to-use,secure connection for home video distribution,conderence room presentation systems,classroom projection systems,digital signage and wherever a high definition video display is located.
Dtech Fbier Optic HDMI cables are an easy-to-use,secure connection for home video distribution,conderence room presentation systems,classroom projection systems,digital signage and wherever a high definition video display is located.
Dtech Fbier Optic HDMI cables are an easy-to-use,secure connection for home video distribution,conderence room presentation systems,classroom projection systems,digital signage and wherever a high definition video display is located.
Dtech Fbier Optic HDMI cables are an easy-to-use,secure connection for home video distribution,conderence room presentation systems,classroom projection systems,digital signage and wherever a high definition video display is located.
Dtech 24K Cable Hdmi Connector Gold Plated 4K 1080p 3 Meter Mini Hdmi Cable Extension
This HDMI cable, fully new design concept, humanized design, make you more comfortable to use. Full copper 19+1 cable core, supports digital signals such as 720P, 1080I ,1080P, 4K@30HZ, 4K@60HZ.
HDMI 2.0 Type D-A AOC is a fiber optic connection cable launched by us. This cable photoelectric ‘s unique core 45° FA patent technology, utilizes optical fiber as the transmission media of HDMI signal, supports HDMI2.0 protocol. It is equipped with the miniaturization Type D housing, is a mature and competitive high-definition interconnection solution in the market.
This HDMI cable, fully new design concept, humanized design, make you more comfortable to use. Full copper 19+1 cable core, supports digital signals such as 720P, 1080I ,1080P, 4K@30HZ.
