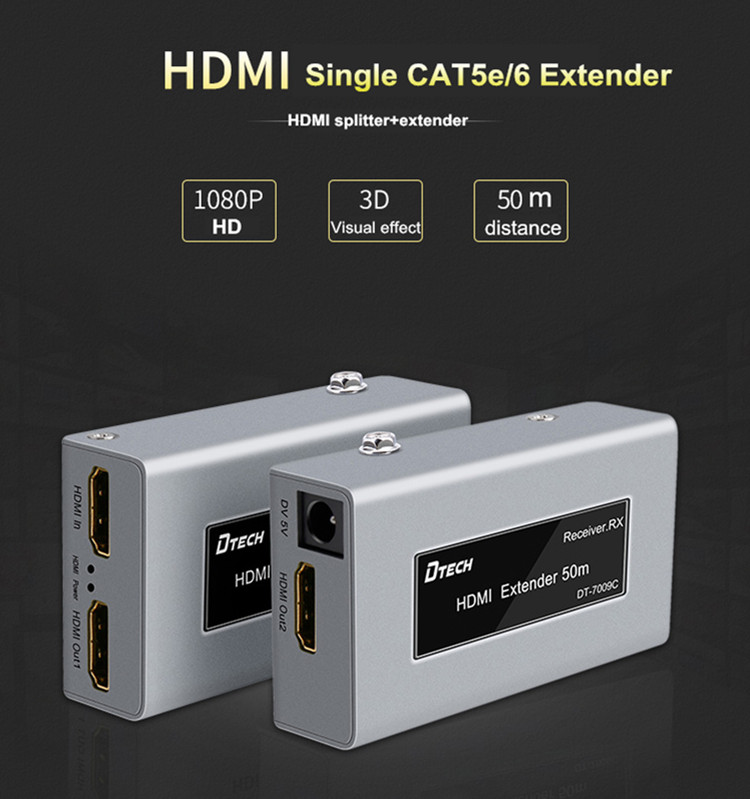

DTECH Hdmi Extender Splitter Adapter 1080P 4K cat6 Hdmi Over Ethernet Extender
Product Origin:
ChinaBrand:
DTECHItem NO.:
DT-7009C（2nd)Shipping Port:
Guangzhou/ShenzhenDTECH Hdmi Extender Splitter Adapter 1080P 4K cat6 Hdmi Over Ethernet Extender
Ⅰ. Introduction

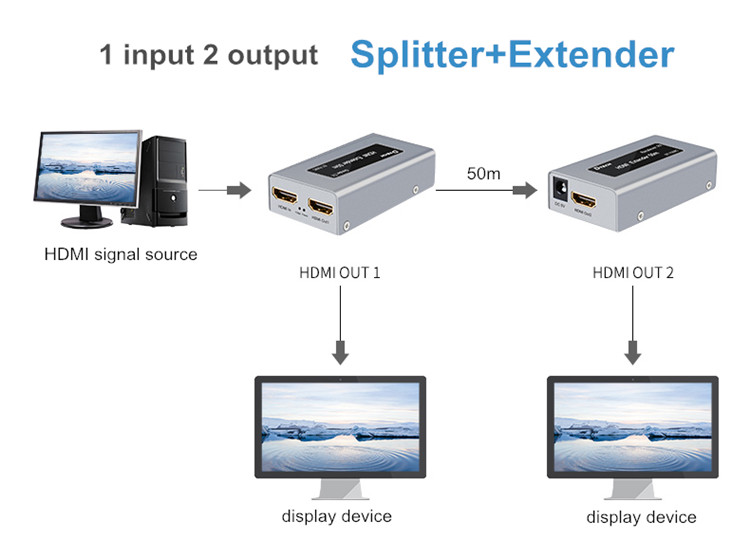

HDMI single cable Extender break the limitation of HDMI cable transmission distance. The HDMI signals can be transmitted up to 50m via single lan cable. Besides, it increases one way HDMI local output, more convenient to use. It can be widely used for HD LCD TV selling show, data release, information release, conference room, school and various training places.
Ⅱ. Detailed parameters
This HDMI extender adopt high-tech HDMI signal extension chipset, with stable signal and no loss within the effective distance, can transmit up to 50m maximum. It adopts the uncompressed signal transmission program, supports HDMI resolution 1080P@60Hz.
2，Product function parameters
（1）support 3D, maximum resolution 1080P
（2）HDMI format: 480i/480p/576i/576p/720i/720p/1080i/1080p
（3）HDMI signal band width:225MHz/2.5Gbps
（4）support 24bit/ 30bit/36bit /48bit dark color
（5）support BLU-ray DVD24 / 50 / 60fs / HD-DVD / XVYCC
（6）audio format: DTS-HD, Dolby-trueHD, LPCM7.1, DTS, DOLBY-AC3, DSD, HD(HBR)
（7）the HDMI signals can be transmitted to 40m via cat5 cable; 50m via cat5e cable; 60m via cat6 cable.
（8）the receiver equipped with EQ adjustment button, it can make the signals to the best status by EQ adjusting according to the length of the LAN cable.
