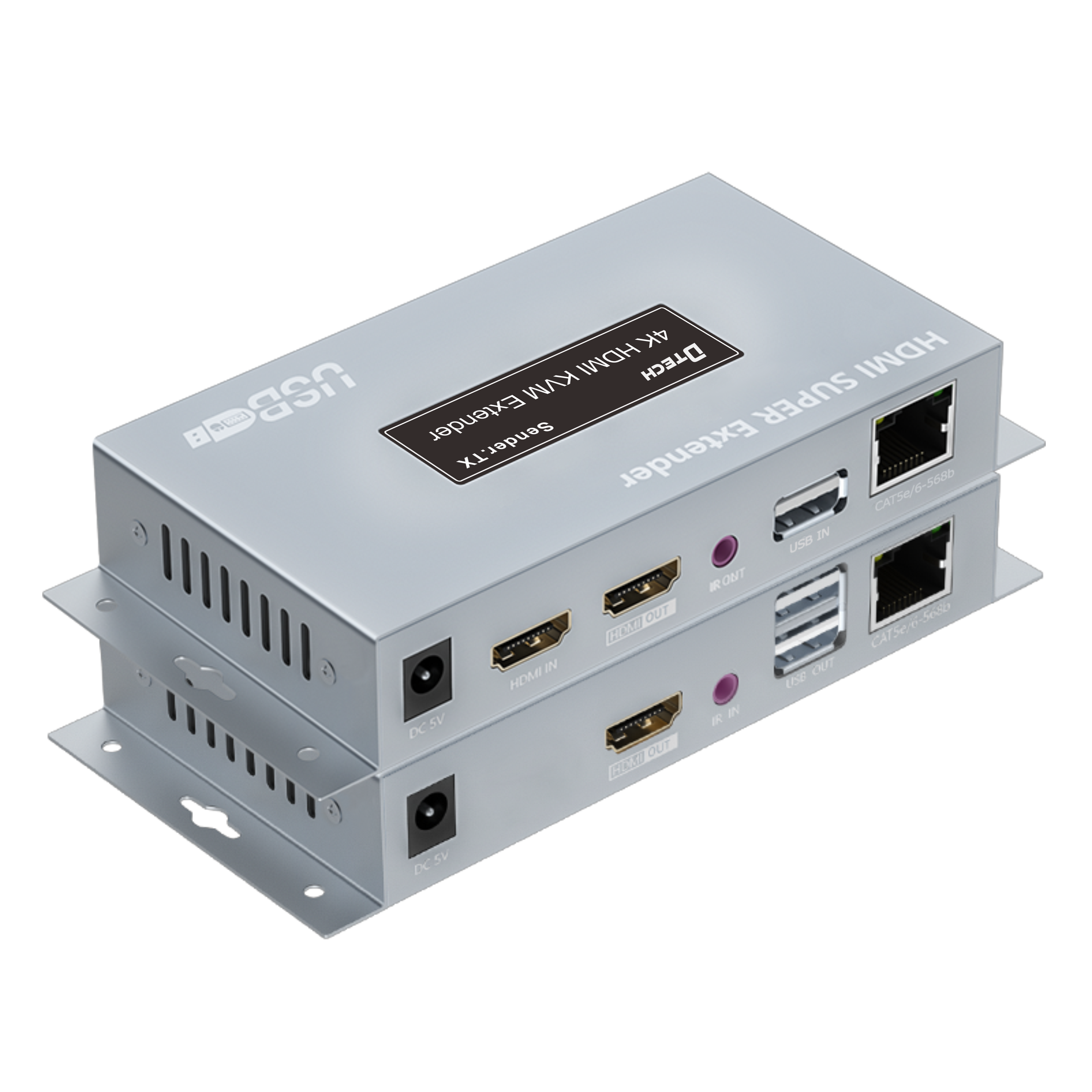

4K HDMI KVM Extender 60M 4K@60Hz HDMI Extender 7084A GS

Product Origin:
China
Brand:
DTECH
Item NO.:
DT-7084A(GS)
Color:

Product Details

This high-definition resolution extender consists of a transmitter and a receiver. The transmitter is responsible for completing the signal The receiver is responsible for signal decoding and port allocation, and the intermediate transmission The medium is high-quality Category 5/6 twisted pair. The product extends the audio and video signals to the remote end through the network cable. It can also realize remote keyboard and mouse control, one transmitter to one receiver. The image restoration effect is clear and natural, without obvious attenuation, and it also increases lightning protection and anti-interference performance, with stable It has the characteristics of good performance and clear image. It is widely used in computer teaching systems, high-quality multimedia displays, Video conferencing, computers, LCD and plasma high-definition display venues, digital home theaters, exhibitions, education Education, finance, scientific research, meteorology and other fields.
hdmi kvm extender

Refresh rate/resolution support detection report (MuRiDeo)

Product Model		DT-7084A(GS)	Product Name		HDMI IP Extender 150M
Input Signal			Output Signal
VIC	Format	Rate	VIC	Format	Rate
1	800*600	60Hz	1	1920*1080p	59.992Hz
2	1024*768	60Hz	2	1920*1080p	59.992Hz
3	1360*768	60Hz	3	1920*1080p	59.992Hz
4	1400*1050	60Hz	4	1920*1080p	59.992Hz

5	480P	59.94Hz	5	1920*1080p	59.992Hz
6	720P	50Hz	6	1920*1080p	59.992Hz
7	720P	59.94Hz	7	1920*1080p	59.992Hz
8	720P	60Hz	8	1920*1080p	59.992Hz
9	1080P	23.976Hz	9	1920*1080p	59.992Hz
10	1080P	24Hz	10	1920*1080p	59.992Hz
11	1080P	25Hz	11	1920*1080p	59.992Hz
12	1080P	29.97Hz	12	1920*1080p	59.992Hz
13	1080P	30Hz	13	1920*1080p	59.992Hz
14	1080P	50Hz	14	1920*1080p	59.992Hz
15	1080P	59.94Hz	15	1920*1080p	59.992Hz
16	1080P	60Hz	16	1920*1080p	59.992Hz
Note: Use MuRiDeo right DT-7084A(GS) performs resolution/refresh rate tests , and the test results meet the parameter requirements! Tester: He Kaizhao Date: 2023/3/15

Refresh rate/resolution support detection report (MuRiDeo)

Product Model		DT-7084A(GS)	Product Name		4K HDMI KVM Extender

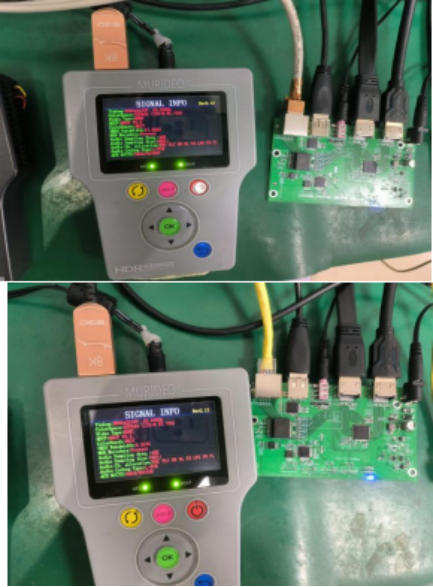

Test product pictures :
Input Signal			Output Signal
TX local output
VIC	Format	Rate	VIC	Format	Rate
1	640*480	60Hz	1	640*480	60Hz
2	800*600	60Hz	2	800*600p	60.317Hz

3	1024*768	60Hz	3	1024*768p	60Hz
4	1280*768	60Hz	4	1280*768	60Hz
5	1360*768	60Hz	5	1366*768p	60Hz
6	1280*960	60Hz	6	1280*960p	59.995Hz
7	1280*1024	60Hz	7	1280*1024p	60.015Hz
8	1400*1050	60Hz	8	1400*1050p	59.942Hz
9	1600*1200	60Hz	9	1600*1200p	59.997Hz
10	1920*1200	60Hz	10	1920*1200p	59.947Hz
11	480I	59.94Hz	11	720*480I	60.005Hz
12	480P	59.94Hz	12	720*480p	59.941Hz
13	576I	50Hz	13	720*576I	50.081Hz
14	576P	50Hz	14	720*576p	50.000Hz
15	720P	50Hz	15	1280*720p	50.000Hz
16	720P	59.94Hz	16	1280*720p	60.000Hz
17	720P	60Hz	17	1280*720p	60.000Hz
18	720P	50Hz(3D-FP)	18	1280*720p	60.000Hz
19	720P	59.94Hz(3D-FP)	19	1280*720p	60.000Hz
20	720P	60Hz(3D-FP)	20	1280*720p	60.000Hz
21	1080I	50Hz	21	1920*1080I	50.045Hz
22	1080I	59.94Hz	22	1920*1080I	60.054Hz
23	1080I	60Hz	23	1920*1080I	60.054Hz
24	1080P	23.976Hz	24	1920*1080p	23.975Hz
25	1080P	24Hz	25	1920*1080p	24.00Hz
26	1080P	25Hz	26	1920*1080p	59.996Hz
27	1080P	29.97Hz	27	1920*1080p	29.968Hz
28	1080P	30Hz	28	1920*1080p	30Hz
29	1080P	50Hz	29	1920*1080p	49.997Hz
30	1080P	59.94Hz	30	1920*1080p	59.936Hz
31	1080P	60Hz	31	1920*1080p	60.000Hz
32	1080P	23.976Hz(3D-FP)	32	1280*720p	60.000Hz
33	1080P	24Hz(3D-FP)	33	1280*720p	60.000Hz
34	3840*2160	23.98Hz	34	3840*2160	23.975Hz
35	3840*2160	24Hz	35	3840*2160	23.999Hz
36	3840*2160	25Hz	36	3840*2160	24.998Hz
37	3840*2160	29.97Hz	37	3840*2160	29.969Hz

38	3840*2160	30Hz	38	3840*2160	29.998Hz
39	3840*2160	50Hz	39	3840*2160	49.997Hz
40	3840*2160	59.94Hz	40	3840*2160	59.94Hz
41	3840*2160	60Hz	41	3840*2160	60Hz
42	4096*2160	23.976Hz	42	4096*2160	23.976Hz
43	4096*2160	24Hz	43	4096*2160	24Hz
44	4096*2160	25Hz	44	4096*2160	24.999Hz
45	4096*2160	29.9Hz	45	4096*2160	29.9Hz
46	4096*2160	30Hz	46	4096*2160	29.998Hz
47	4096*2160	50Hz	47	4096*2160	50Hz
48	4096*2160	59.94Hz	48	4096*2160	59.94Hz
49	4096*2160	60Hz	49	4096*2160	60Hz

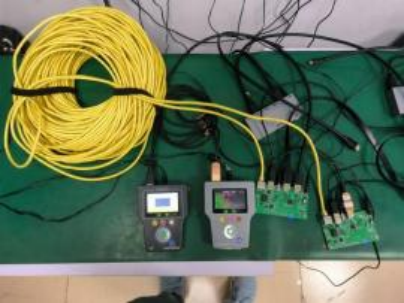

60- meter network cable RX HDMI OUT
VIC	Format	Rate	VIC	Format	Rate
1	640*480	60Hz	1	640*480	60Hz
2	800*600	60Hz	2	800*600p	60.317Hz
3	1024*768	60Hz	3	1024*768p	60Hz
4	1280*768	60Hz	4	1280*768	60Hz
5	1360*768	60Hz	5	1366*768p	60Hz
6	1280*960	60Hz	6	1280*960p	59.995Hz
7	1280*1024	60Hz	7	1280*1024p	60.015Hz
8	1400*1050	60Hz	8	1400*1050p	59.942Hz
9	1600*1200	60Hz	9	1600*1200p	59.997Hz
10	1920*1200	60Hz	10	Not supported	Not supported
11	480I	59.94Hz	11	720*480I	60.005Hz
12	480P	59.94Hz	12	720*480p	59.941Hz
13	576I	50Hz	13	720*576I	50.081Hz
14	576P	50Hz	14	720*576p	50.000Hz
15	720P	50Hz	15	1280*720p	50.000Hz
16	720P	59.94Hz	16	1280*720p	60.000Hz
17	720P	60Hz	17	1280*720p	60.000Hz
18	720P	50Hz(3D-FP)	18	1280*720p	60.000Hz
19	720P	59.94Hz(3D-FP)	19	1280*720p	60.000Hz
20	720P	60Hz(3D-FP)	20	1280*720p	60.000Hz
21	1080I	50Hz	21	1920*1080I	50.045Hz

22	1080I	59.94Hz	22	1920*1080I	60.054Hz
23	1080I	60Hz	23	1920*1080I	60.054Hz
24	1080P	23.976Hz	24	1920*1080p	23.975Hz
25	1080P	24Hz	25	1920*1080p	24.00Hz
26	1080P	25Hz	26	1920*1080p	59.996Hz
27	1080P	29.97Hz	27	1920*1080p	29.968Hz
28	1080P	30Hz	28	1920*1080p	30Hz
29	1080P	50Hz	29	1920*1080p	49.997Hz
30	1080P	59.94Hz	30	1920*1080p	59.936Hz
31	1080P	60Hz	31	1920*1080p	60.000Hz
32	1080P	23.976Hz(3D-FP)	32	1280*720p	60,000Hz
33	1080P	24Hz(3D-FP)	33	1280*720p	60,000Hz
34	3840*2160	23.98Hz	34	3840*2160	23.975Hz
35	3840*2160	24Hz	35	3840*2160	23.999Hz
36	3840*2160	25Hz	36	3840*2160	24.998Hz
37	3840*2160	29.97Hz	37	3840*2160	29.969Hz
38	3840*2160	30Hz	38	3840*2160	29.998Hz
39	3840*2160	50Hz	39	3840*2160	50Hz
40	3840*2160	59.94Hz	40	3840*2160	59.94Hz
41	3840*2160	60Hz	41	3840*2160	60Hz
42	4096*2160	23.976Hz	42	4096*2160	23.976Hz
43	4096*2160	24Hz	43	4096*2160	24Hz
44	4096*2160	25Hz	44	4096*2160	24.999Hz
45	4096*2160	29.9Hz	45	4096*2160	29.9Hz
46	4096*2160	30Hz	46	4096*2160	29.998Hz
47	4096*2160	50Hz	47	4096*2160	50Hz
48	4096*2160	59.94Hz	48	Not supported	Not supported
49	4096*2160	60Hz	49	Not supported	Not supported

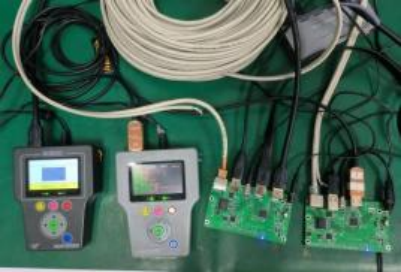

100- meter network cable RX HDMI OUT
VIC	Format	Rate	VIC	Format	Rate
1	640*480	60Hz	1	640*480	60Hz
2	800*600	60Hz	2	800*600p	60.371Hz
3	1024*768	60Hz	3	1024*768p	60Hz
4	1280*768	60Hz	4	Not supported	Not supported

5	1360*768	60Hz	5	1366*768p	60Hz
6	1280*960	60Hz	6	1280*960p	59.995Hz
7	1280*1024	60Hz	7	1280*1024p	60.015Hz
8	1400*1050	60Hz	8	Not supported	Not supported
9	1600*1200	60Hz	9	Not supported	Not supported
10	1920*1200	60Hz	10	Not supported	Not supported
11	480I	59.94Hz	11	720*480I	60.005Hz
12	480P	59.94Hz	12	720*480p	59.941Hz
13	576I	50Hz	13	720*576I	50.081Hz
14	576P	50Hz	14	720*576p	50.000Hz
15	720P	50Hz	15	1280*720p	50.000Hz
16	720P	59.94Hz	16	1280*720p	60.000Hz
17	720P	60Hz	17	1280*720p	60.000Hz
18	720P	50Hz(3D-FP)	18	Not supported	Not supported
19	720P	59.94Hz (3D-FP)	19	Not supported	Not supported
20	720P	60Hz(3D-FP)	20	Not supported	Not supported
21	1080I	50Hz	21	1920*1080I	50.045Hz
22	1080I	59.94Hz	22	Not supported	Not supported
23	1080I	60Hz	23	Not supported	Not supported
24	1080P	23.976Hz	24	1920*1080p	23.975Hz
25	1080P	24Hz	25	1920*1080p	24.00Hz
26	1080P	25Hz	26	1920*1080p	25Hz
27	1080P	29.97Hz	27	1920*1080p	29.968Hz
28	1080P	30Hz	28	1920*1080p	29.997Hz
29	1080P	50Hz	29	1920*1080p	49.997Hz
30	1080P	59.94Hz	30	1920*1080p	59.94Hz
31	1080P	60Hz	31	1920*1080p	6Hz
32	1080P	23.976Hz(3D-FP)	32	1920*1080p	23.975Hz
33	1080P	24Hz(3D-FP)	33	1920*1080p	23.975Hz
34	3840*2160	23.98Hz	34	3840*2160	23.975Hz
35	3840*2160	24Hz	35	3840*2160	23.999Hz

36	3840*2160	25Hz	36	3840*2160	24.998Hz
37	3840*2160	29.97Hz	37	3840*2160	29.969Hz
38	3840*2160	30Hz	38	3840*2160	29.998Hz
39	3840*2160	50Hz	39	Not supported	Not supported
40	3840*2160	59.94Hz	40	Not supported	Not supported
41	3840*2160	60Hz	41	Not supported	Not supported
42	4096*2160	23.976Hz	42	4096*2160	23.976Hz
43	4096*2160	24Hz	43	4096*2160	24Hz
44	4096*2160	25Hz	44	4096*2160	24.999Hz
45	4096*2160	29.9Hz	45	Not supported	Not supported
46	4096*2160	30Hz	46	Not supported	Not supported
47	4096*2160	50Hz	47	Not supported	Not supported
48	4096*2160	59.94Hz	48	Not supported	Not supported
49	4096*2160	60Hz	49	Not supported	Not supported
Note: Sample DT-7084A(GS) passed the MuriDeo refresh rate and resolution test. Testers: He Kaizhao Date : 2023.11.1

The above are all real-time tests. The products work normally during the experimental period and pass the product inspection.
