In order to facilitate the allocation of a different standard computer serial interface, external devices or between the intelligence apparatus for remote data communication, the need for standards conversion of the serial interface. Converter compatible with RS-232C, RS-485, RS-422 standard, single-ended to the RS-232 balanced differential signal is converted to the RS-485 or RS-422 signals.
Product Origin:
chinaBrand:
DTECHItem NO.:
dt-9003Shipping Port:
guangzhou\shenzhenWorking Humidity 5percent to 95percent

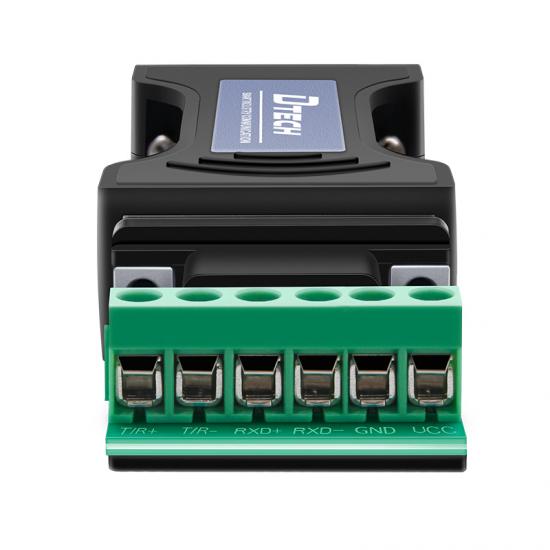

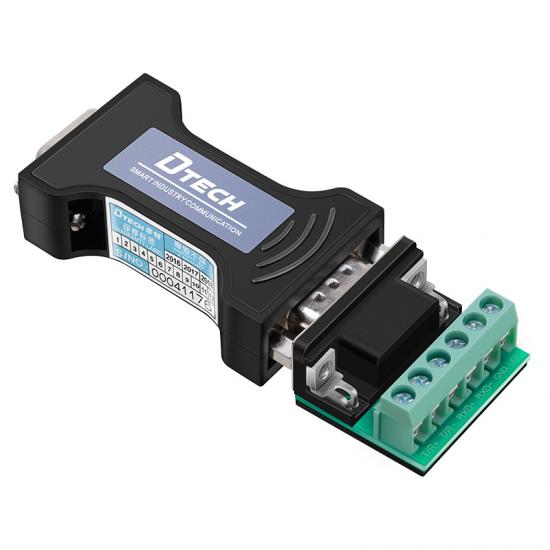

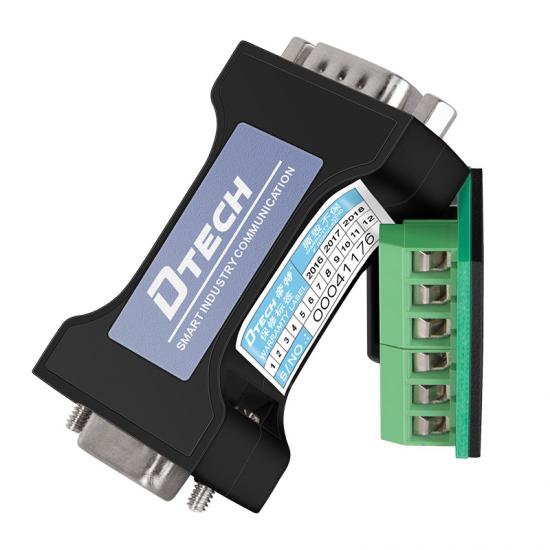

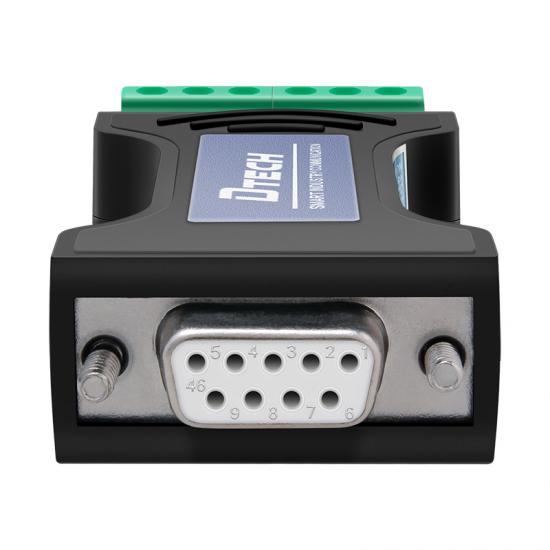

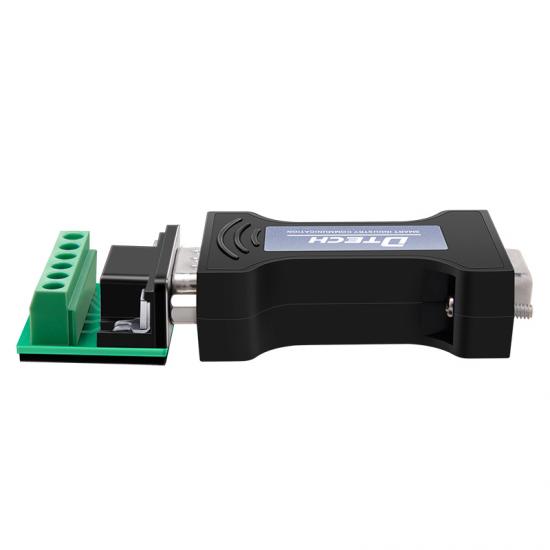

1,Compact design,using the DB9 connector with terminal.
2,Compatible with RS232,RS485,RS422 TIA/EIA standard.
3,Automatic send / receive data, without external flow control signals.
4,Power supply:unique serial charge pump drive technology,no external power supply,the real three-wire communication
(TXD,RXD,GND),No need serial port initialization.
5,32 network devices can be connected.
6,Communication distance:1200 meters.
7,Communication rate:300bps-115.2Kbps.
8,Transmission medium:twisted pair or shielded cable.
9,Work way:Asynchronous half-duplex(RS485) or asynchronous full duplex(RS422),no need jumper wire settings.
10,Applies to all communications software used,plug and play.
11,Dimension:63mm*33mm*17mm.
12,Use environment:-25℃~70℃;Relative humidity 5%~95%.
13,Support DOS/WIN95/WIN2000/NT/XP Linux.etc.
