POC RS485 RS422 to TCP/IP Single Serial Port Server DC9V-70V 1A Industry Converter with Ethernet

Product Origin:
china
Brand:
DTECH
Item NO.:
IOT9031B
Shipping Port:
guangzhou/shenzhen

Product Details

Product name:RS232/485/422 to TCP/IPDAN single serial port server
Product Brand:DTECH
Product model:DT-IOT9031
Dimensions:90.6x70x13.7(mm)
Working temperature:-20C to 80C
Relative humidity:5%to 95%
Input voltage:DC 9V-70V
Input current:external power supply 1000mA
Power supply:wide voltage or POE power supply
Electrostatic discharge voltage protection:plus or minus 5KV
Ethernet standard
Number of ports:one RJ45 standard network port
Rate:Support 10/100M,full-duplex/half-duplex adaptive Ethernet interface,
compatible with 802.3 protocol
Network protocol:IP/CP/DHCP/RTU/HTTPD Client
Buffer:Send:6K bytes Receive:4K bytes
Serial port
Number of ports:2
Interface standard:RS232/RS485/RS422
Data bits:5/6/7/8
Stop bit:1/2
Check digit:None/Even/Odd/Space/Mark
Baud rate:300~921.6kbps
Cache:Receive:800 bytes
software
Virtual serial port:NetModuleConfig (Windows2000 or higher(32/64 bit))
Configuration method:PC setting software

PS:The following dimensions are measured manually,there may be small errors

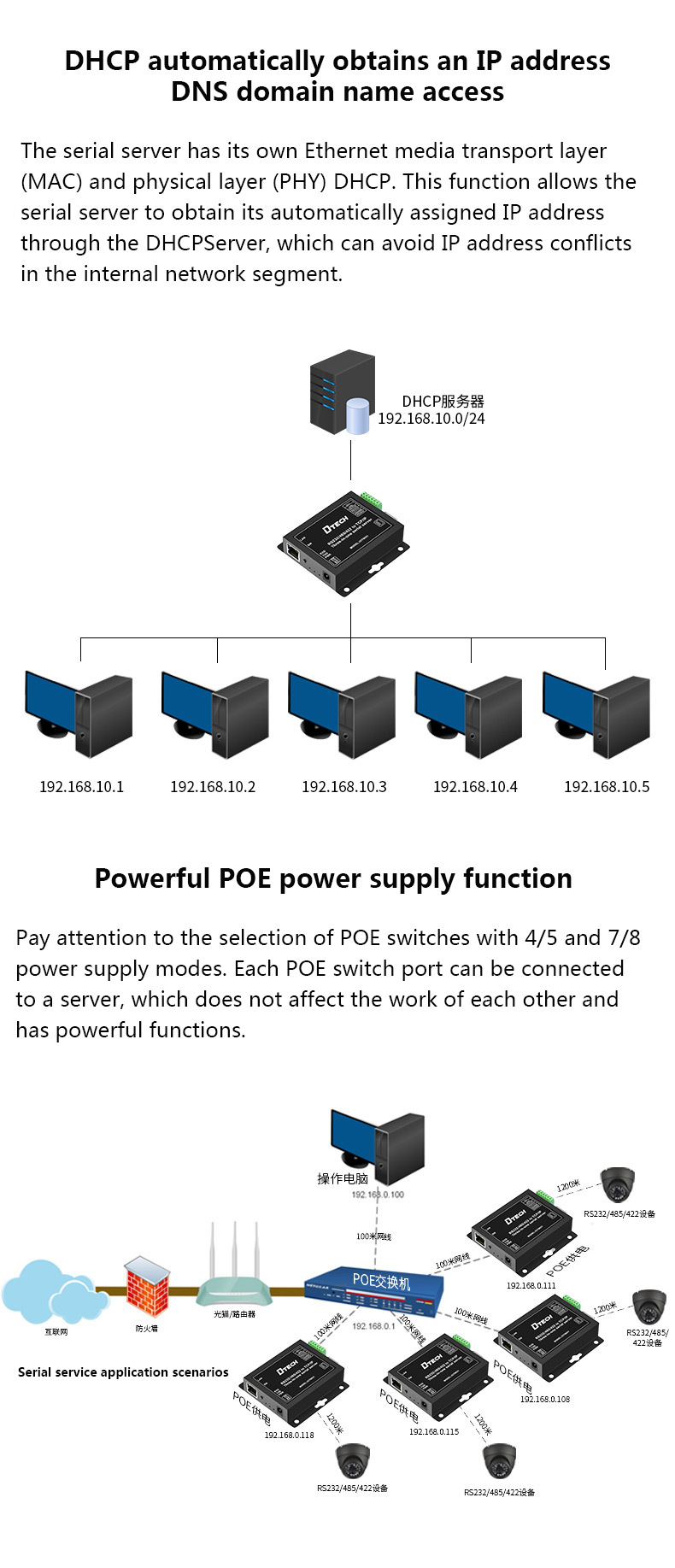

Connect to the server equipment through the Intel network
signal of the local computer,transmit the remote RS232/485/422
communication function,the transmission distance is more than
1200 meters,and each converter can allow connection of 32
RS232/485/422 interface devices
Modbus RTU/TCP Two-way transparent transmission
Through Modbus network communication,Modbus RTU
and communication between two communication protocols
of Modbus TCP
For example:use the Modbus function of the serial server to
read the temperature and humidity meter
