Welcome to use our high quality video converter series product!

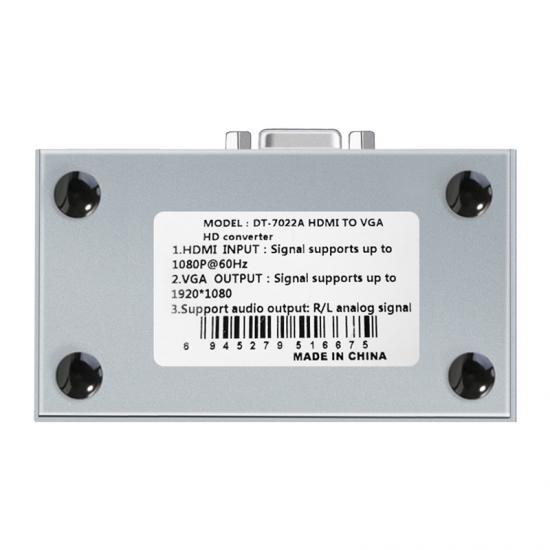

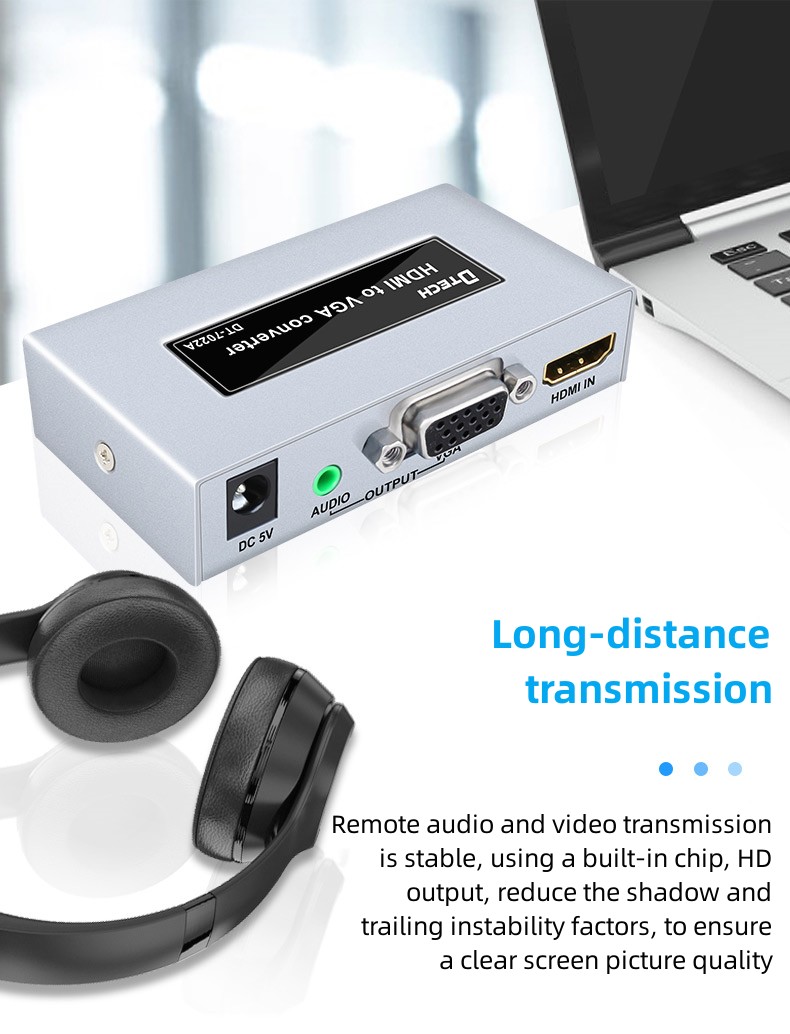

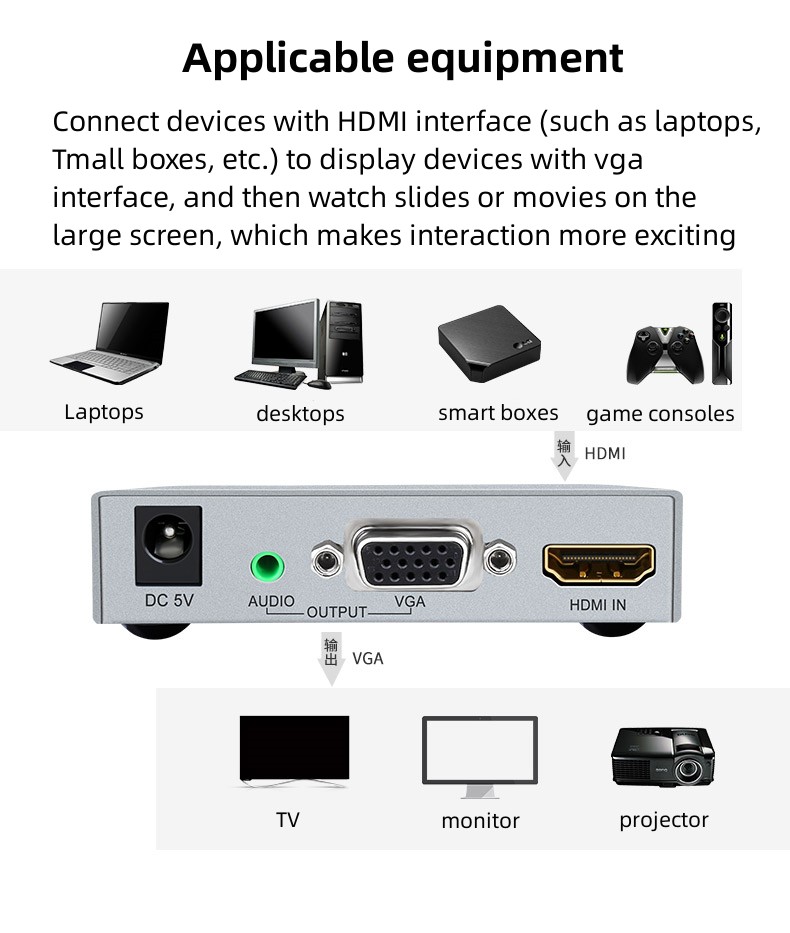

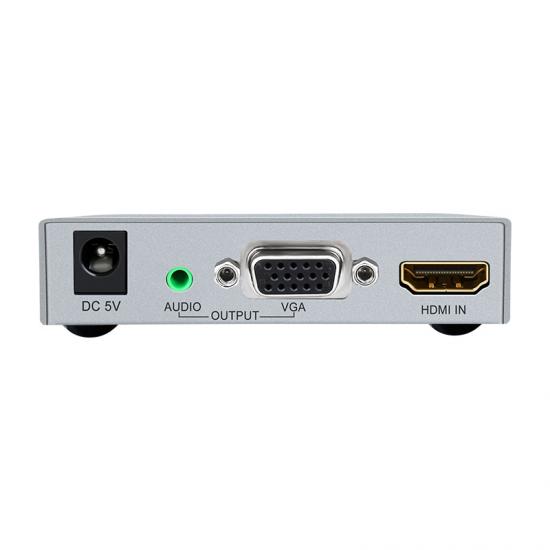

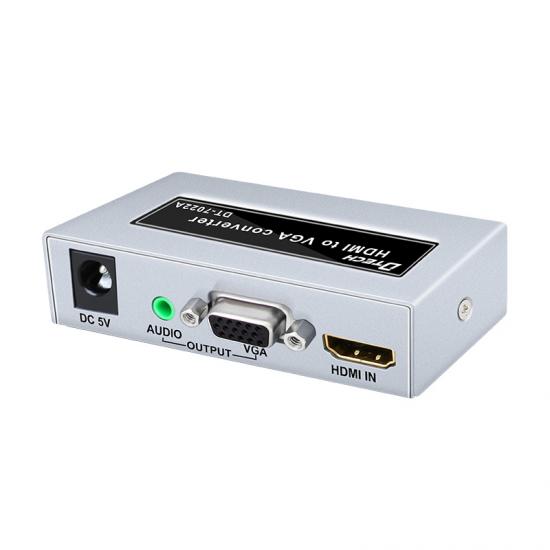

HDMI to VGA high-definition converter, can convert HDMI digital signal into VGA analog video signal and 3.5mm interface stereo audio signal, so that high-definition HDMI signal can be converted into analog audio and video signals available for ordinary displays, projectors, etc. VGA interface display, projector, etc.
Product Origin:
chinaBrand:
DTECHItem NO.:
dt-7022aShipping Port:
guangzhou/shenzhenProduction function parameter description
1, output VGA signal format: 1920 * 1080 backward compatible
2. Input HDMI signal format: 1080P (50Hz/60Hz) backward compatible
3, VGA output impedance: 75Ω
4, HDMI input impedance: 100Ω
5, working environment temperature: -25 ° C -75 ° C
6, working environment humidity: 65%
7, product size : 88*48.5*20 mm (L*W*H)
8, maximum working current: DC5V/350mA
Product accessories
1. HDMI to VGA converter *1PC
2. USB power cable*1PC
3. Manual *1pc
Note: Please check your accessories when unpacking. If the accessories are incomplete, please consult your supplier.
(Please use our company to take the wire. If the product is damaged by other power sources, it is not covered by the warranty.)
