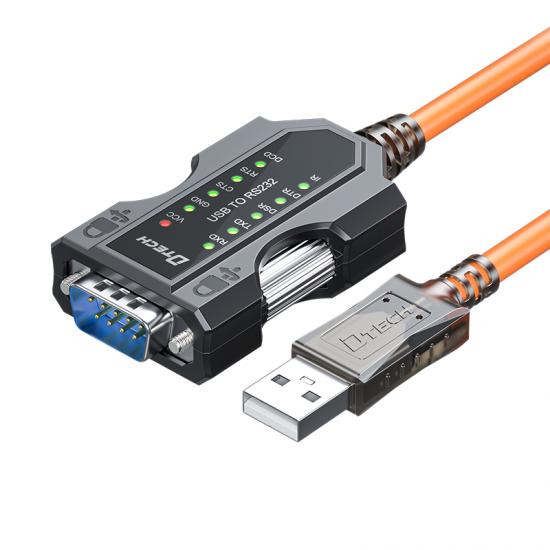

Dtech USB to ten-lamp serial cable, sliding second installation × ten-lamp diagnosis ×British dual-core
Brand:
DTECHItem NO.:
IOT5089(PL)Color:
DTECH product is a high-performance USB to RS232 ten-lamp serial port conversion cable, designed to meet the needs of modern computers and traditional RS232 Designed for the communication needs between devices.It uses a high-performance conversion chip, which can stably and efficiently convert the signal of the USB interface Converted to RS232 signal to achieve seamless data transmission.The product has ten signal indicators and its own product driver to achieve exemption The characteristics of the on-board driver provide users with a convenient experience, and ten signal indicators can visually display the power status, data transmission and reception, and transmission. The transmission direction and the working status of each signal line are convenient for users to monitor the operation of the equipment in real time and find and solve problems in time.
Product functional parameters

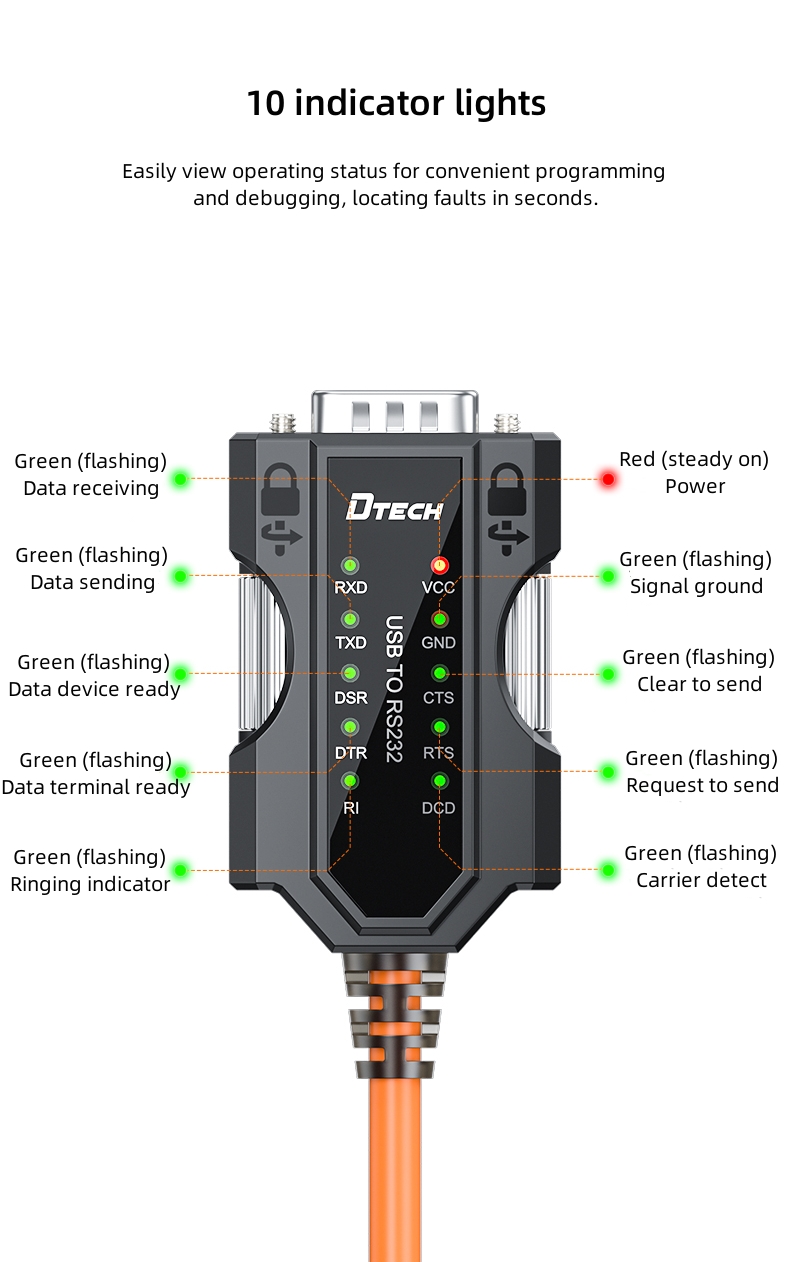

(1) USB2.0 standard, support hot-swappable, plug and play; compatible with EIA/TIA RS-232 standard. (2) Support baud rate: 300bps-921600bps. (3) The product has ten signal status indicators that can display the power status, data transmission and reception, transmission direction, and the working status of each signal line.It is very convenient for engineers to check the communication status of each signal during debugging. (4) Support MODEM contact signals, DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI. (5) The built-in product driver package does not need to download the driver information separately. (6) Electrostatic ESD protection: ±15KV IEC1000-4-2 air gap discharge. ±10KV IEC1000-4-2 contact discharge. (7) Support WinXP, Win7, Win10, Win11 and other systems. (8) Adapt to temperature: -20℃~70℃, humidity: 5%~95%. (9) Wire material: braided mesh + aluminum foil double-layer shielding, strong anti-interference ability, twisted pair USB data cable signal transmission is more stable.
