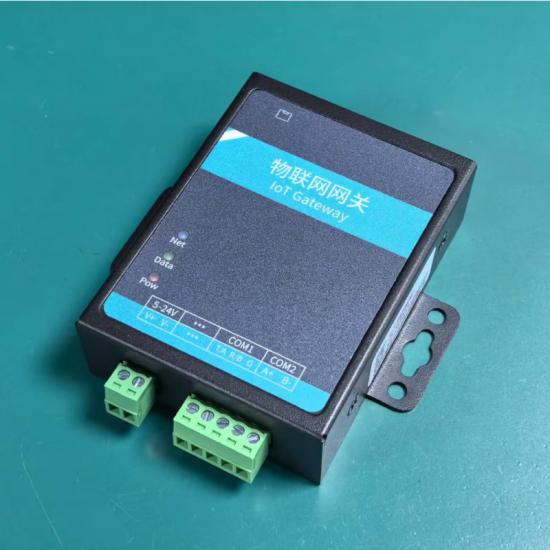

IOT Industrial Serial Port RS232 RS485 DTECH DT-9103 Transparent Communication Gateway with Ethernet
Product Origin:
ChinaBrand:
DTECHItem NO.:
DT-9013Color:

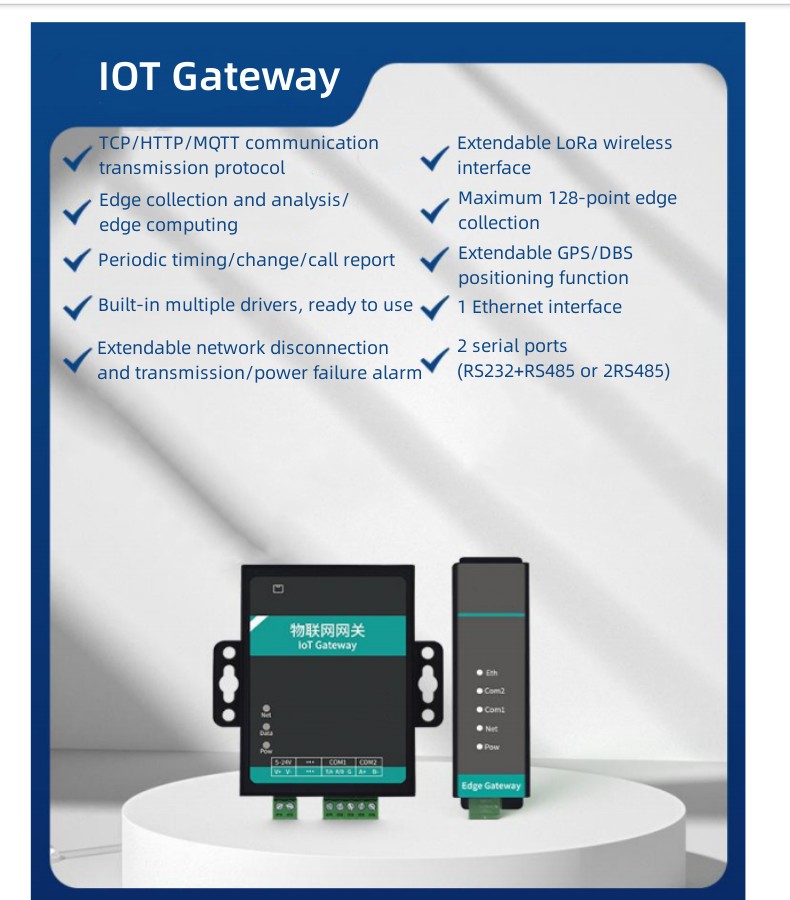

PictureIOT Gateway is an industrial protocol/IoT protocol conversion and edge computing gateway developed for automation, informatization, digitalization, IoT and other applications.It has the functions of edge data collection and analysis, edge computing, protocol conversion,data periodic or scheduled active reporting, data change active reporting and application remote call and reporting, application remote reverse control and other functions.
The gateway supports TCP, HTTP, MQTT and other transmission protocols in the northbound direction (communication with the server), and the reported data format is JSON. It supports private cloud, Alibaba Cloud, Huawei Cloud, Tencent Cloud, OneNET, ThingsBoard,EMQX, Mosquitto and other IoT platforms and MQTT Broker. Developers do not need to pay too much attention to the communication protocols of hardware such as controllers, sensors,instruments, PLCs, etc., and can focus more on the development of system applications(business), thereby realizing the rapid development of IoT data collection and monitoring systems, informationization, and digital platforms;

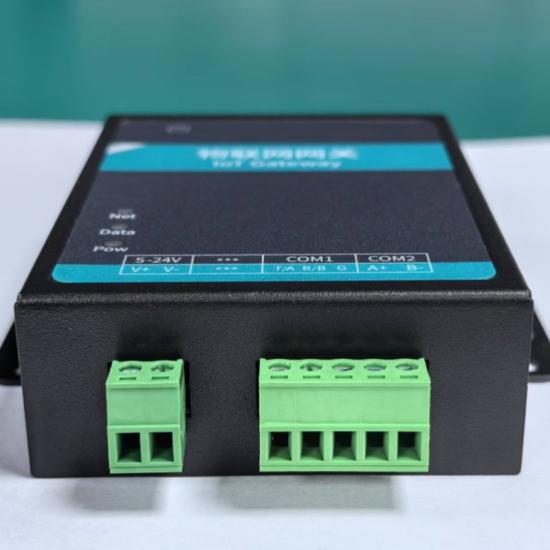

The southbound gateway (communication with controllers, sensors and other devices)supports multiple wired and wireless communication interfaces and I/O interfaces such as RS232, RS485, Etherent, and LoRa. It supports multiple national standards and industrial field bus communication protocols such as Modbus_ASCII/RTU/TCP, electricity meter DL/T645-97/07, water meter CJ/T188, Mitsubishi_FX2N/FX3U/MC, SIEMENS_S7-200 PPI/Smart/300/400/1200/1500, and OMRON_FinsSerial/FinsTCP.
The gateway also has remote management function (when the transmission protocol is MQTT), provides complete configuration instructions, realizes remote configuration and debugging of the gateway, reduces implementation and maintenance costs, and improves product usability!
