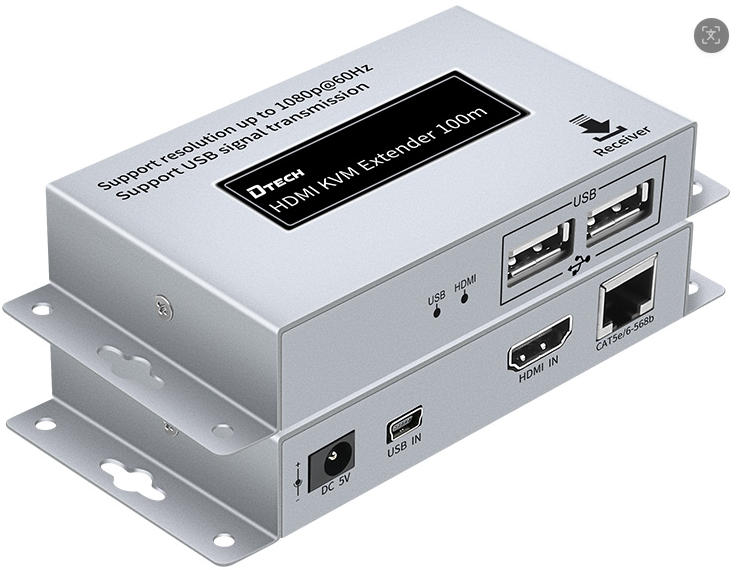

DTECH OEM/ODM HD 1080p 3840X2160 30hz 100M DCH-4K USB2.0 HDMI KVM EXTENDER

New Products

DTECH OEM/ODM HD 1080p 3840X2160 30hz 100M DCH-4K USB2.0 HDMI KVM EXTENDER

This product is an Internet cafe extender specially designed for internet cafe centralized management. This product is an Internet cafe extender specially designed for internet cafe centralized management. It supports HDMI signals, USB signals, keyboard, mouse and audio signal extension transmission, as well as supports switch and reset the computer host remotely. This product consists of a transmitter and a receiver,  the transmitter and receiver connected through a CAT5e/6e LAN cable. The transmitter is connected to the DVI (HDMI) , speaker and USB output of the computer host, and it is transmitted to the receiver via the LAN cable to restore the signals. The DVI(HDMI) signal is used to connect the monitor, USB is used to connect the U-disk, camera and other USB external devices, and the receiver can also be connected to the keyboard and mouse of the PS2 interface, headsets, microphones, and other commonly used devices in Internet cafes.

  • Product Origin:

    guangdong
  • Brand:

    DTECH
  • Item NO.:

    DT-7040A
  • Shipping Port:

    GZ/SZ PORT
  • Color:

    sliver
  • Lead Time:

    7-14
Product Details

Transmitter connection

(1) When the transmitter is used in an Internet cafe, insert the golden finger on the transmitter board into the PCI-E slot of the computer motherboard; When the transmitter is used as a desktop product, connect the power adapter the power interface of the transmitter.

(2) Insert a DVI/HDMI cable into the transmitter and the DVI/HDMI interface on the motherboard of the computer.

(3) Insert an type-A to type-B USB data cable into the transmitter and the USB interface on the computer motherboard;



(1) Insert a RJ45 interface at the transmitter and receiver through a CAT 5e/6e network cable (up to 100 meters);Transmitter and receiver connections



Receiver and various peripheral connections:

(1) The receiver is connected to the power adapter, and the power adapter is plugged into the socket;

(2) Insert a DVI/HDMI cable into the DVI/HDMI connector on the monitor and the DVI connector on the receiver;

(3) The four cable sockets (Power, Reset, LED+, LED-) on the switch/rebooter are correspondingly inserted to the corresponding ports on the receiver;

(4) The headphone jack and microphone port on the receiver can be connected to audio equipment such as headphones and microphones;

(5) The receiver has 6 USB ports, which can be connected to various USB devices (such as: mouse, keyboard, U disk, etc.). Three of the red USB ports provide high-current charging and can quickly charge the mobile devices (eg, mobile phones, tablets, etc.)





Product function parameters

(1) Support DVI/HDMI high-definition digital signals, USB signal transmission distance up to 100 meters with no delay and compression.

(2) Compatible with various USB devices such as USB camera, sound card, and keyboard. Mouse, joystick. Tablet, tablet (digit board), etc.

(3) Support USB2.0 device, compatible with USB1.1, USB charging interface.

(4) The built-in sound card is automatically disabled when an external USB headset is plugged in, resulting in better sound quality and lower noise.

(5) DVI/HDMI high-definition digital signal, image transmission without delay and compression.

(6) Support CAT6e/5e Ethernet cable, standard USB cable, twisted pair cable, lossless transmission.

(7) Max. supported resolution: 2560*1440@60Hz

(8) Completely eliminate the mobile phones&interphone interference, black screen, and splash screen.

(9) Standard RJ45 wiring mode for easier construction on site.

(10) Remote switch on/off the computer host.
