DTECH DT-7064A HDMI IP matrix extender manual

This product is a matrix-equipped extender consisting of a transmitter and a receiver. Betweenthe transmitting and receiving, the 256-channel HDMI high-definition signal source can berealized by connecting the switch through the network cable, and can be switched, distributedand extended to an unlimited number of displays.

  • Product Origin:

    guangzhou
  • Brand:

    DTECH
  • Shipping Port:

    guangzhou/shenzhen
  • Color:

    Silver
  • Lead Time:

    1-14days
Product Details

Ⅰ. Product introduction

This product is a matrix-equipped extender consisting of a transmitter and a receiver. Betweenthe transmitting andreceiving, the 256-channel HDMI high-definition signal source can berealized by connecting the switch through the network cable, and can be switched, distributedand extended to an unlimited number of displays. . Of course, this model can also supportone-to-one, or one-to-many transmission sources, and in the transmission process, using fivetypes of network cables, the transmitter to the receiver can be extended by 150 meters, and theswitch can be extended by 300 meters. In the case of many-to-many transmission sources, whenthe digital tubes of the transmitter and receiver display the same value, it means that theinformation of the corresponding signal source is played by the display, but the same valuecannot be displayed on the digital tube of the transmitting end. At the same time, this productsupports RS232 remote operation, infrared return, remote control switching, touch switching and other functions. Widely used in security monitoring, dispatching centers, entertainment centers,multimedia exhibition venues and other places.

Ⅱ. Specification

1. HDMI signal resolution supports 1920*1080@60Hz, backward compatible with multiple
resolutions
2. Use H.264 format to compress and decompress video, effectively improve the transmission
rate and ensure the smoothness and stability of playback.
3. Support RS232 signal remote control device
4. Support infrared return, remote remote signal source

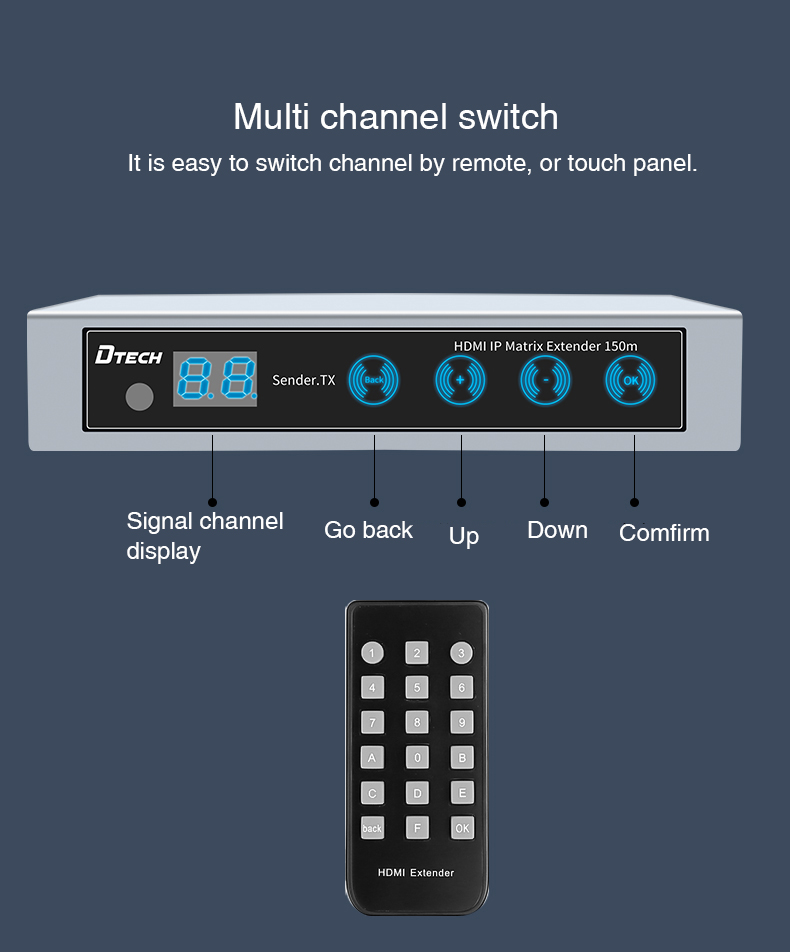

5. With remote control switching and touch panel switching source channel function
6. One-to-many or multi-pair cascading amplification transmission can be carried out through the
switch or router, supporting 256 channels of different frequency source input, and infinite road
display device output.
7. Using the super five network cable, the transmitter to the receiver can be extended by 150
meters, and the switch can be extended by 300 meters.
8. Using 26AWG HDMI standard cable, the input distance can reach 10 meters, and the output
distance can reach 5 meters.
