Product Origin:
ChinaItem NO.:
DT-HDWX001Shipping Port:
Guangzhou/ShenzhenDT-HDWX001 4K 30Hz KVM Hdmi USB Extender Video Wireless Transmitter and Receiver 100 Meter
Ⅰ.Product Parameters
| Product Name | KVM HDMI Wireless Extender 100M |
| Wireless Standard | 802.11 ac WiFi MIMO technology |
| Wireless Band | 4.900 GHz ~ 5.845 GHz (5GHz ISM Band) |
| Antenna Type | External dual 5dBi gain antenna |
| Resolution | 4K/30Hz |
| Transmission Distance | ≤100m (in open space) |
| Warranty | 1 Year |
1. HDMI signal supports 4K@30HZ ard is backward compatible with multiple resolutions.
2. Support RS232 remote transmission function.
3. Support USB keyboard and mouse remote control, IR infrared remote control function.
4. Support one sender to one receiver, one sender to four receivers, four senders to one receiver, three transmission methods.
5. HDMI supports local loop-out, the resolution follows the signal source, and there is no delay.
6. Support AUX analog audio input or HDMI synchronous output analog audio signal, connect external headphones or power amplifier equipment.

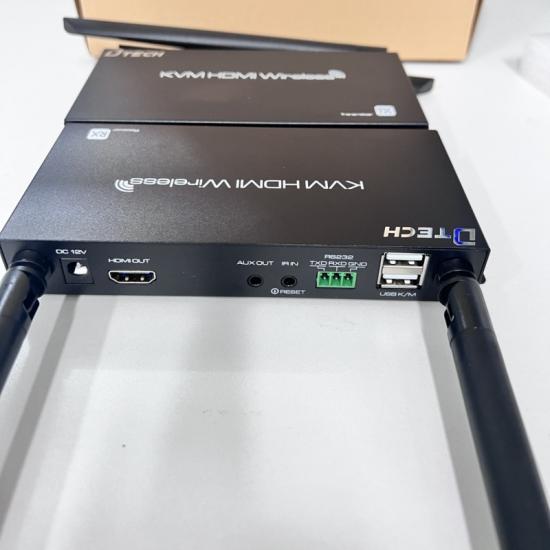

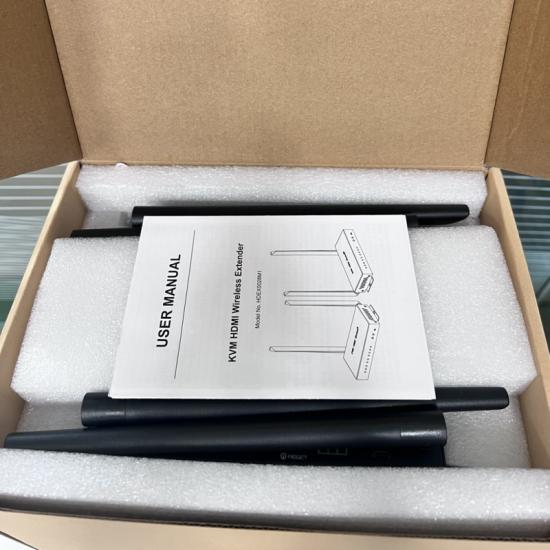

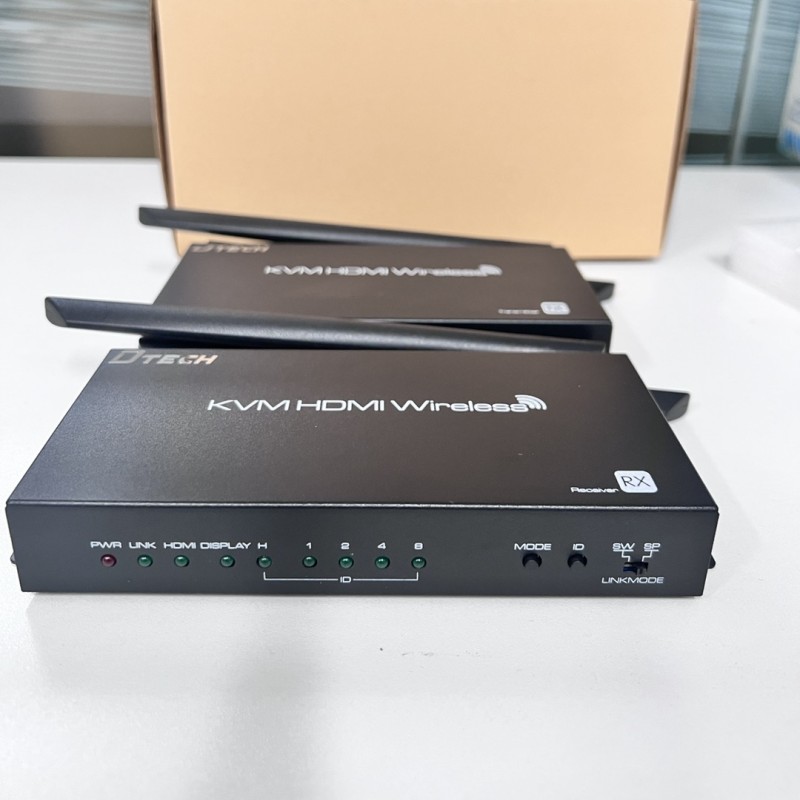

Ⅱ.Product Image

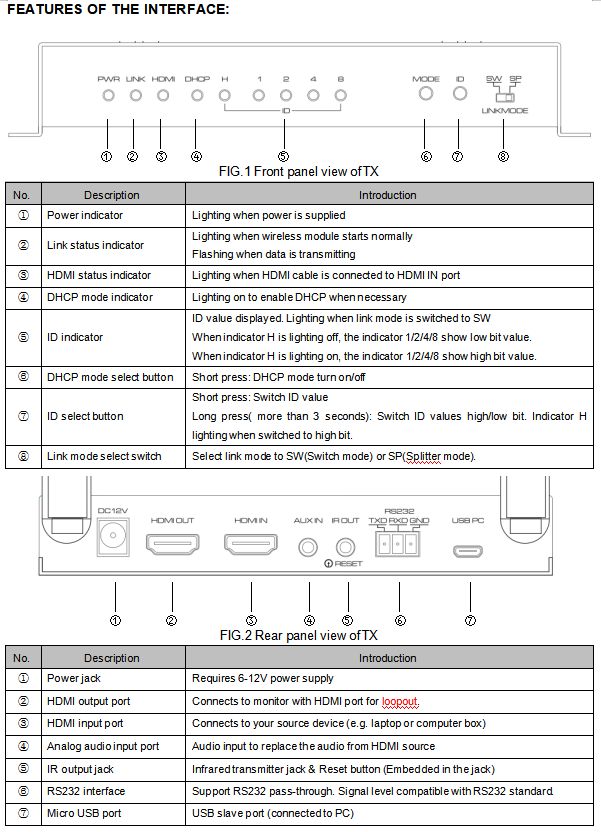

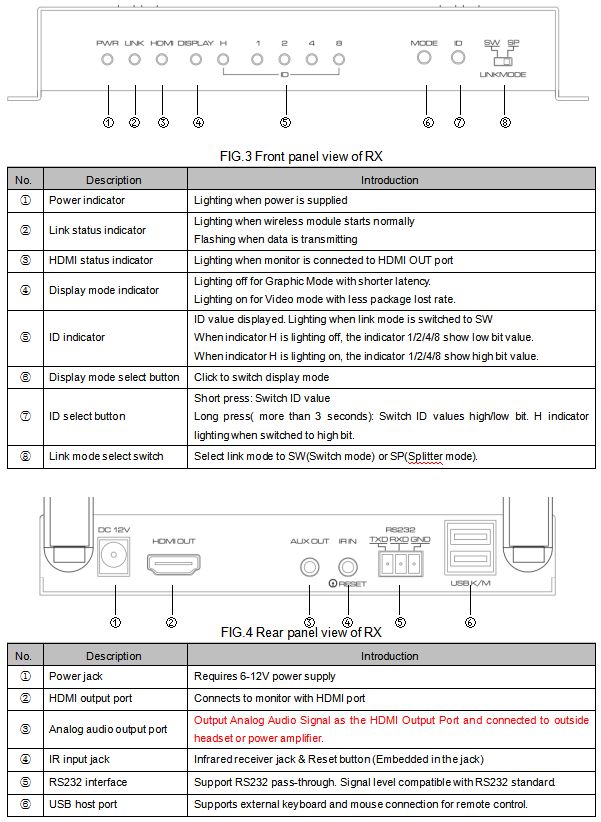

Ⅲ.Interface Definition

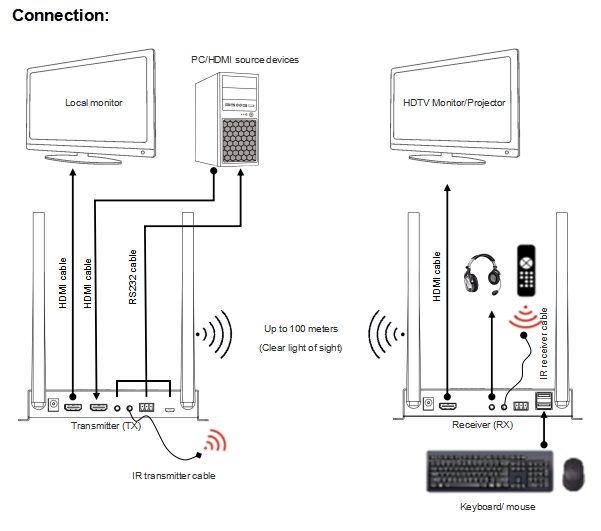

Ⅳ.Connection Diagram
