This is a product of HDMI IP extender, which can extend HD signals up to 150 meters via single cat 5e/cat6 cable and the resolution can up to 1080P. If over 150 meters, can be extended by multi-level connection via switch/router. In addition, it can realize cascading transmission without switch or router. It is widely used in computer teaching system, high-quality multimedia display, video conference, computer, LCD plasma hd display venue, digital home theater, exhibition, education, finance, scientific research, meteorology and other fields.
Product Origin:
chinaBrand:
DTECHItem NO.:
DT-7058（QCW）Shipping Port:

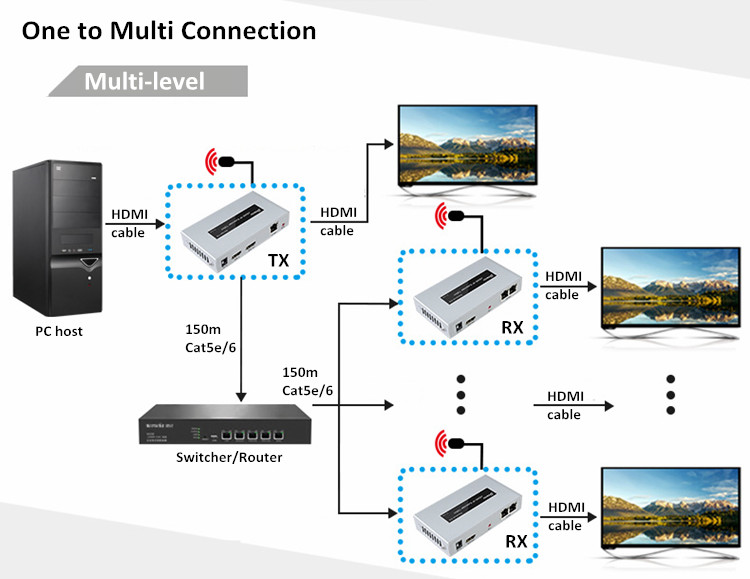

guangzhou/shenzhenThe resolution of this extender is 1080p@60Hz; Supports IR return, which is convenient for users to control equipment remotely; It can be transmitted to 150 meters via cat5e/cat6 cable. It can realize cascading transmission with the help of switch or router. The receiver can also connect with more receivers of this product for cascading transmission.

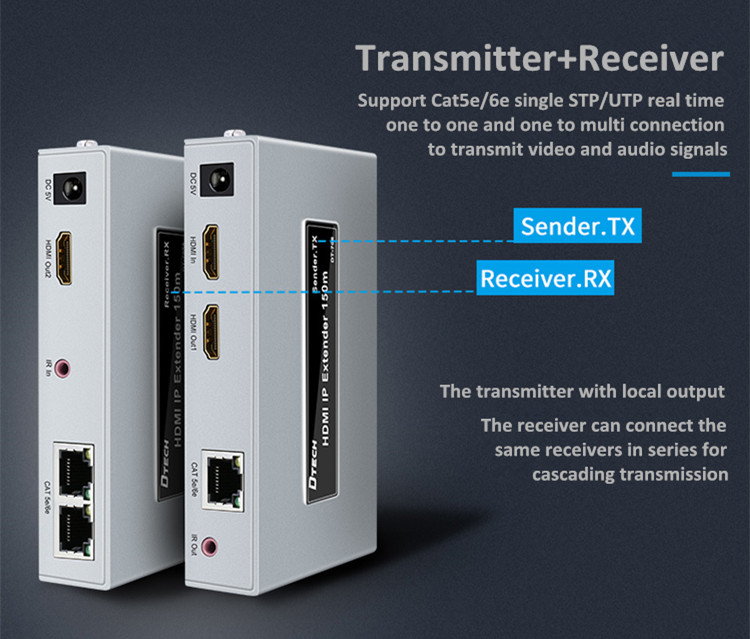

(1) support Cat5e/cat6/ single STP/UTP cable real-time point-to-point and point-to-multi point transmission of video and audio signals;
(2) HDMI signal supports 1080P@60hz, downward compatible;
(3) the transmitter supports local output /Loop out;
(4) the receiver can connect more same receivers in series for cascading transmission;

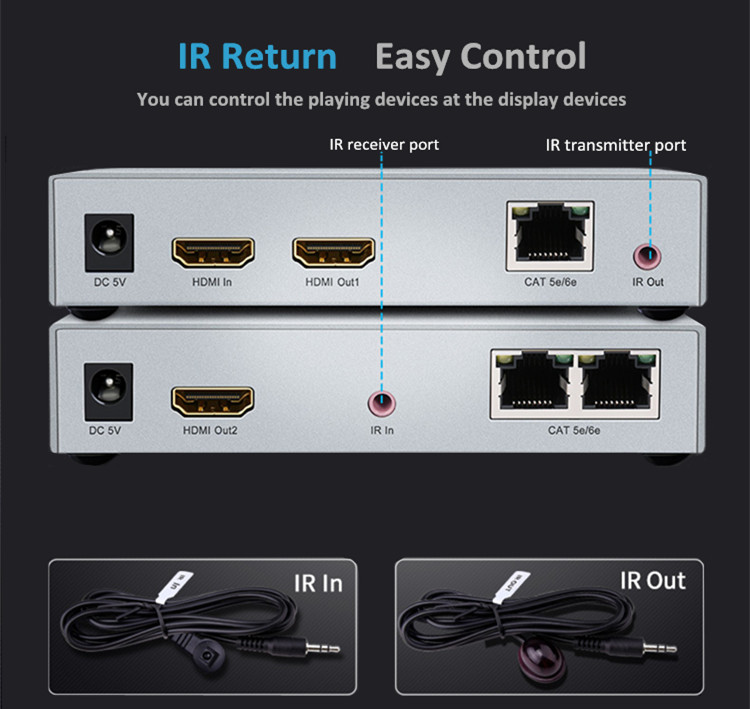

(5) support IR return function;
(6) support H.264 video format;
(7) with signal 3dB gain or precompensation to ensure high definition true reduction of signal;
(8) with anti-lightning, dust-proof and anti-static function, prolong the service life;
(9) cascading and amplification transmission can be realized via switch/router or other relay equipment, signals can be transmitted to 300 meters;
(10) using 26AWG HDMI standard cable, the transmission distance of the input end can reach 10 meters, and the output end can reach 5 meters.
