Multi system compatibility
Product Origin:
ChinaBrand:
DTECHItem NO.:
IOT5077（GR）Shipping Port:
Guangzhou/ShenzhenDTECH Network Console Cable 1m 1.5m USB to RJ45 RS485 Serial
Adapter Converter Cable
Ⅰ. Product Parameters
|
Product Name |
USB to RJ45 RS485 Serial Cable |
| Model |
IOT5077（GR） |
|
Product Chip |
PL2303 |
|
Product Material |
Tin plated copper core, PVC jacket, Aluminum foil |
|
Connection Interface |
USB2.0 |
|
Baud Rate |
300bps-3Mbps |
|
Check Position |
Even/Odd/None/Mark/Space |
|
Stop Position |
1, 1, 5, 2 |
|
Sending and Receiving Buffer |
Accepts 768 bytes, sends 256 bytes |
|
Electrostatic Protection |
±10KV, IEC61000-4-2 contact discharge
±15KV, IEC61000-4-2 air gap discharge
|
|
System Compatibility |
Supports Win, Linux and other systems |
|
Cable Length |
1m/1.5m |
|
Warranty |
1 Year |

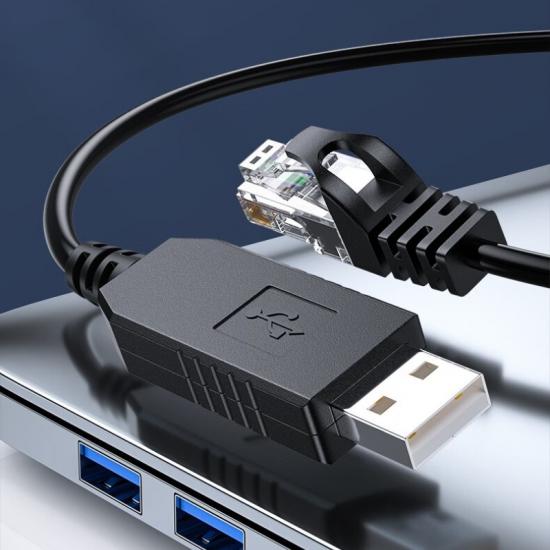

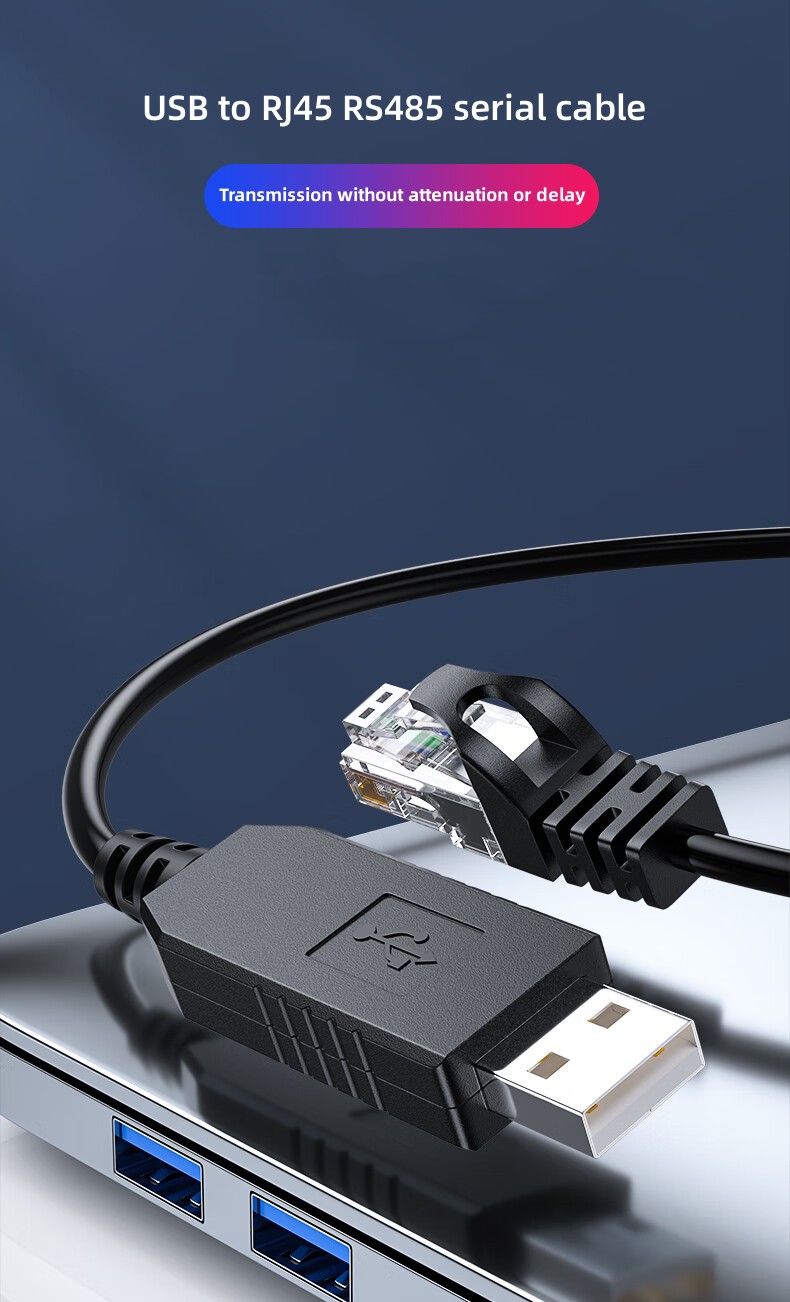

USB to RJ45 RS485 serial cable
Transmission without attenuation or delay
①Applicable to multiple devices
②Compatible with multiple systems
③PL2303 chip
④Gold-plated contacts
Suitable for multiple devices
Meet different needs
Suitable for connecting various RS485 serial devices to computers.

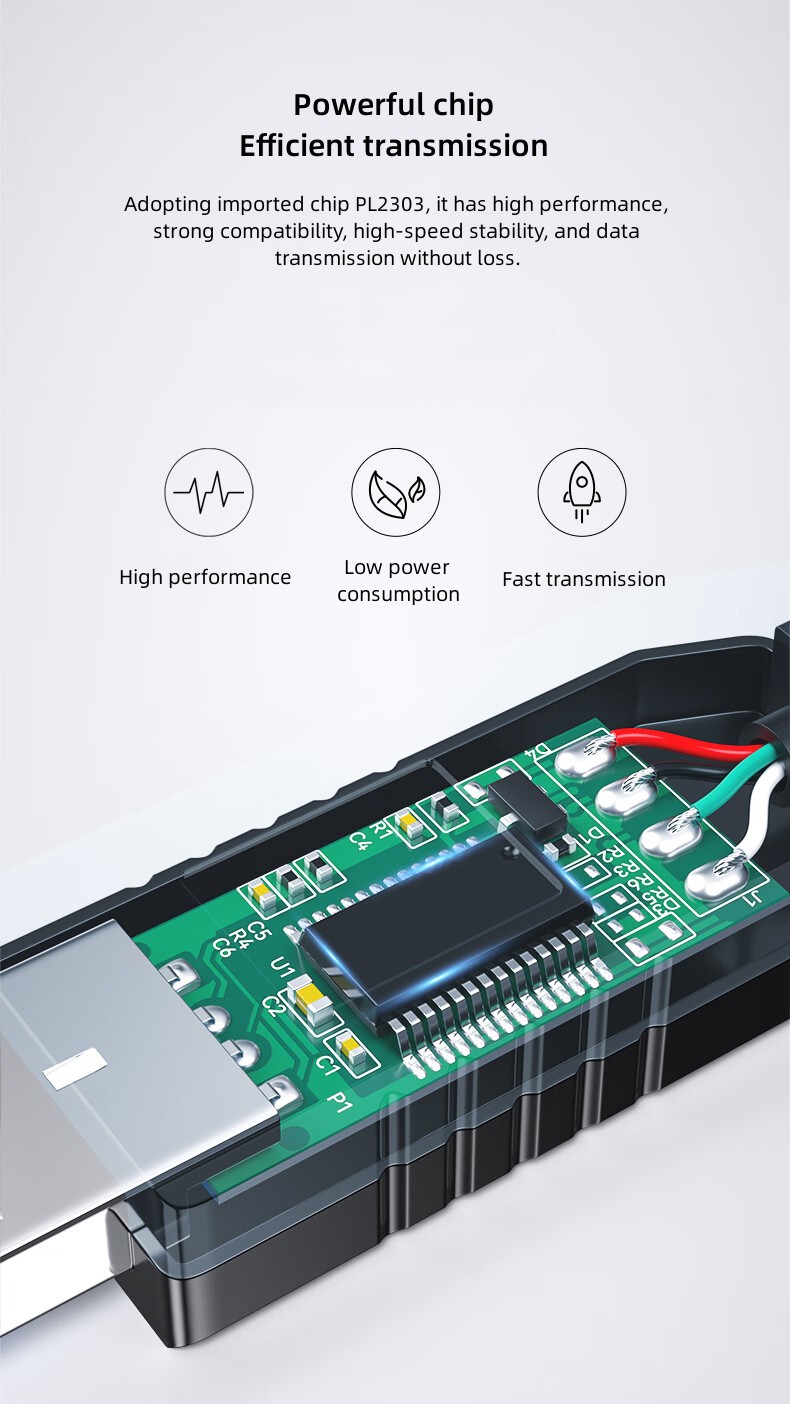

Powerful chip
Efficient transmission
Adopting imported chip PL2303, it has high performance, strong compatibility, high-speed stability, and data transmission without loss.
①High performance
②Low power consumption
③Fast transmission

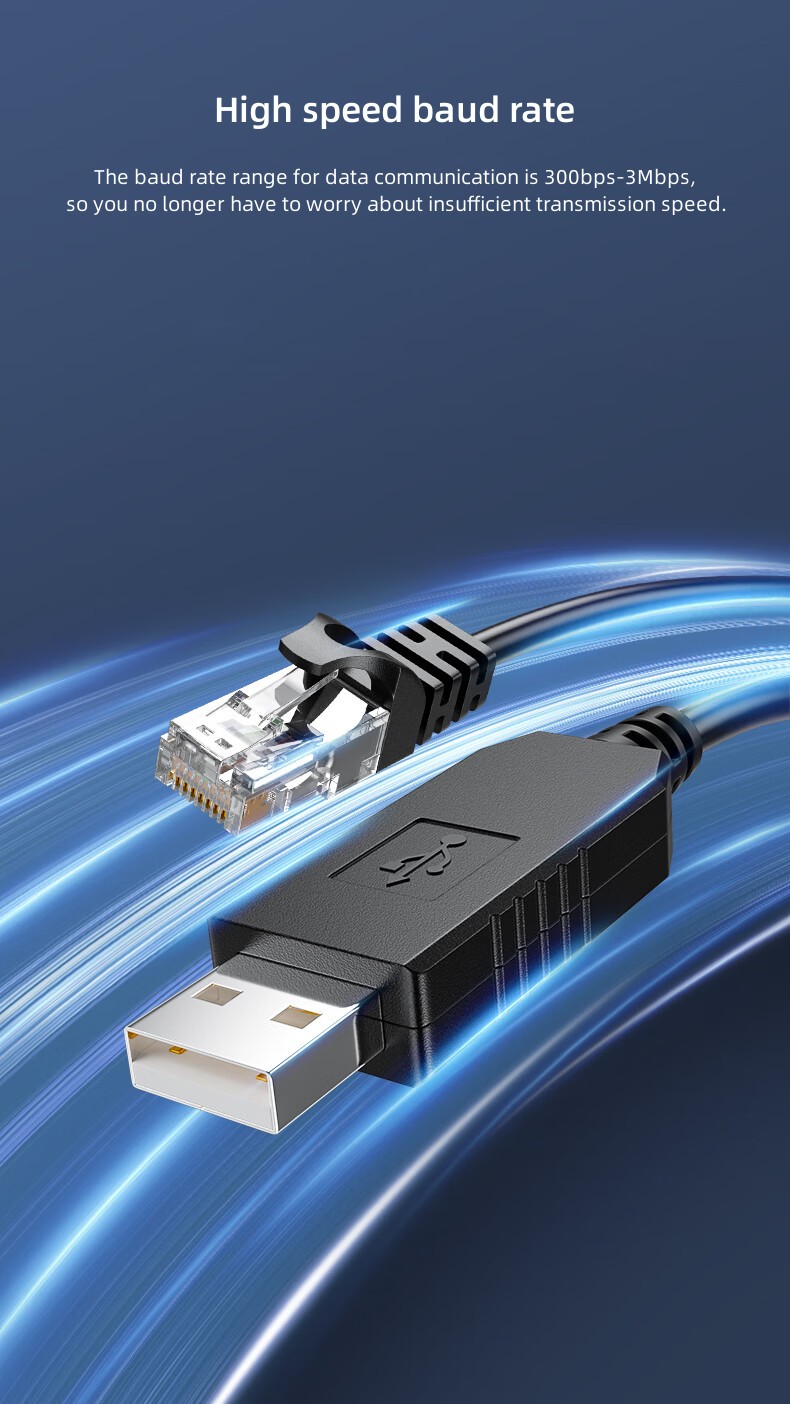

High speed baud rate
The baud rate range for data communication is 300bps-3Mbps, so you no longer have to worry about insufficient transmission speed.

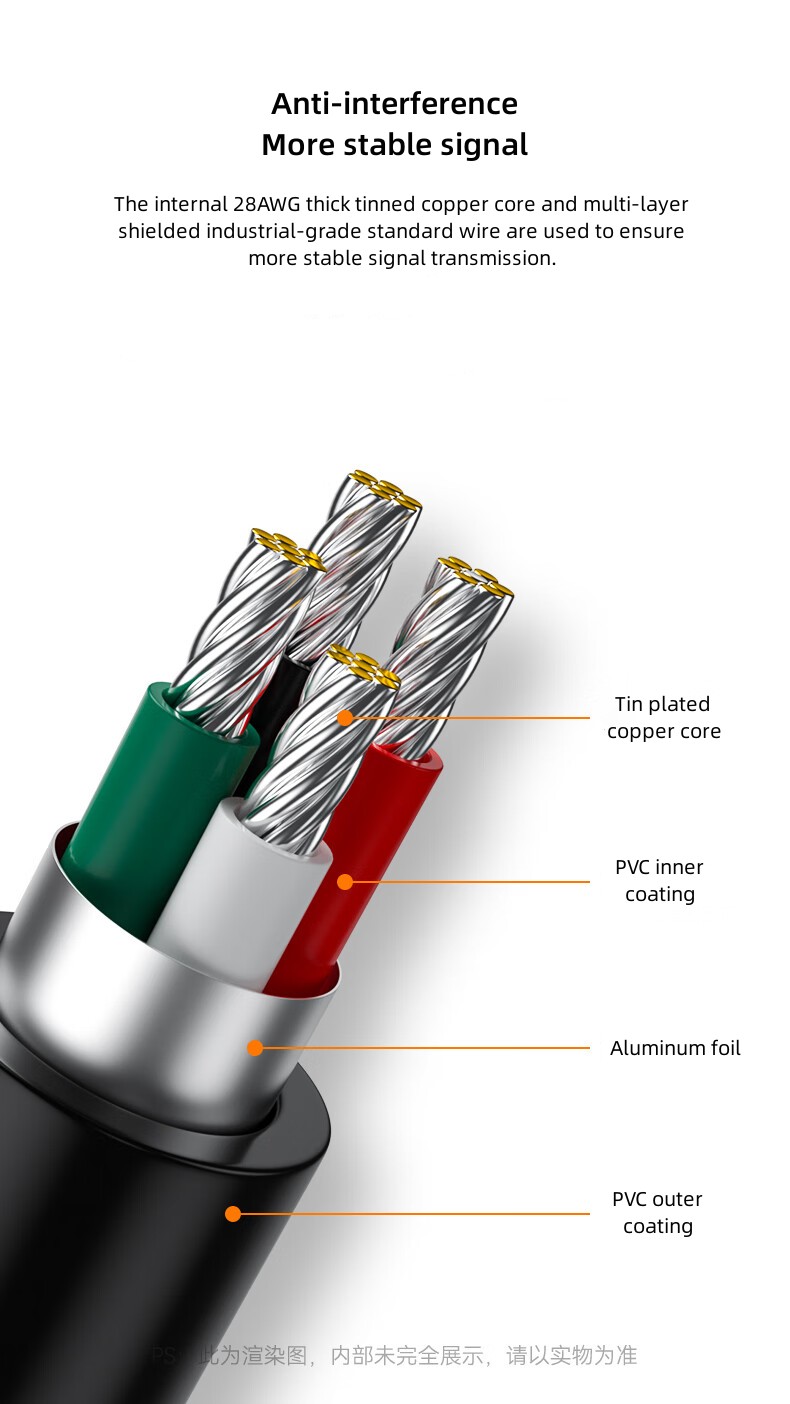

Anti-interference
More stable signal
The internal 28AWG thick tinned copper core and multi-layer shielded industrial-grade standard wire are used to ensure more stable signal transmission.

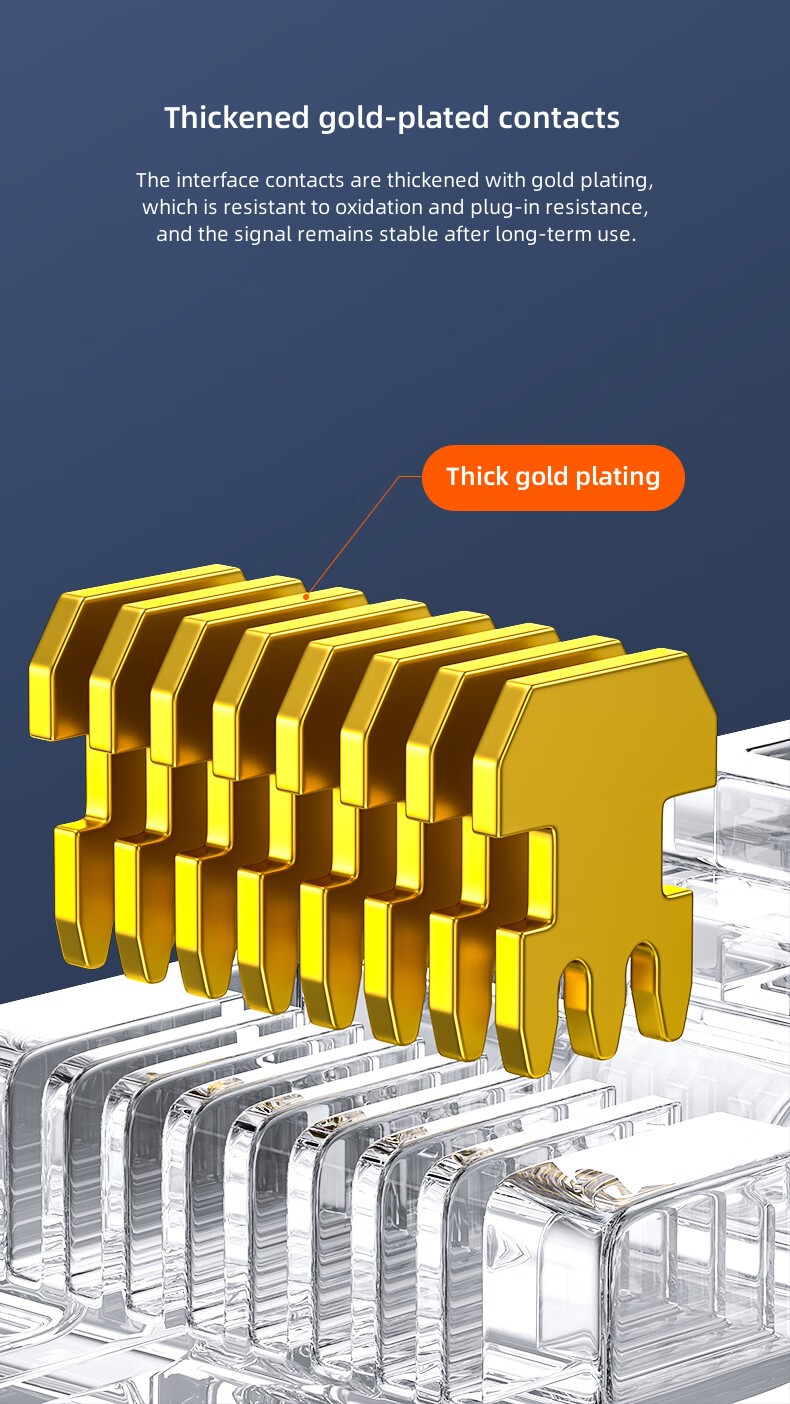

Thickened gold-plated contacts
The interface contacts are thickened with gold plating, which is resistant to oxidation and plug-in resistance, and the signal remains stable after long-term use.

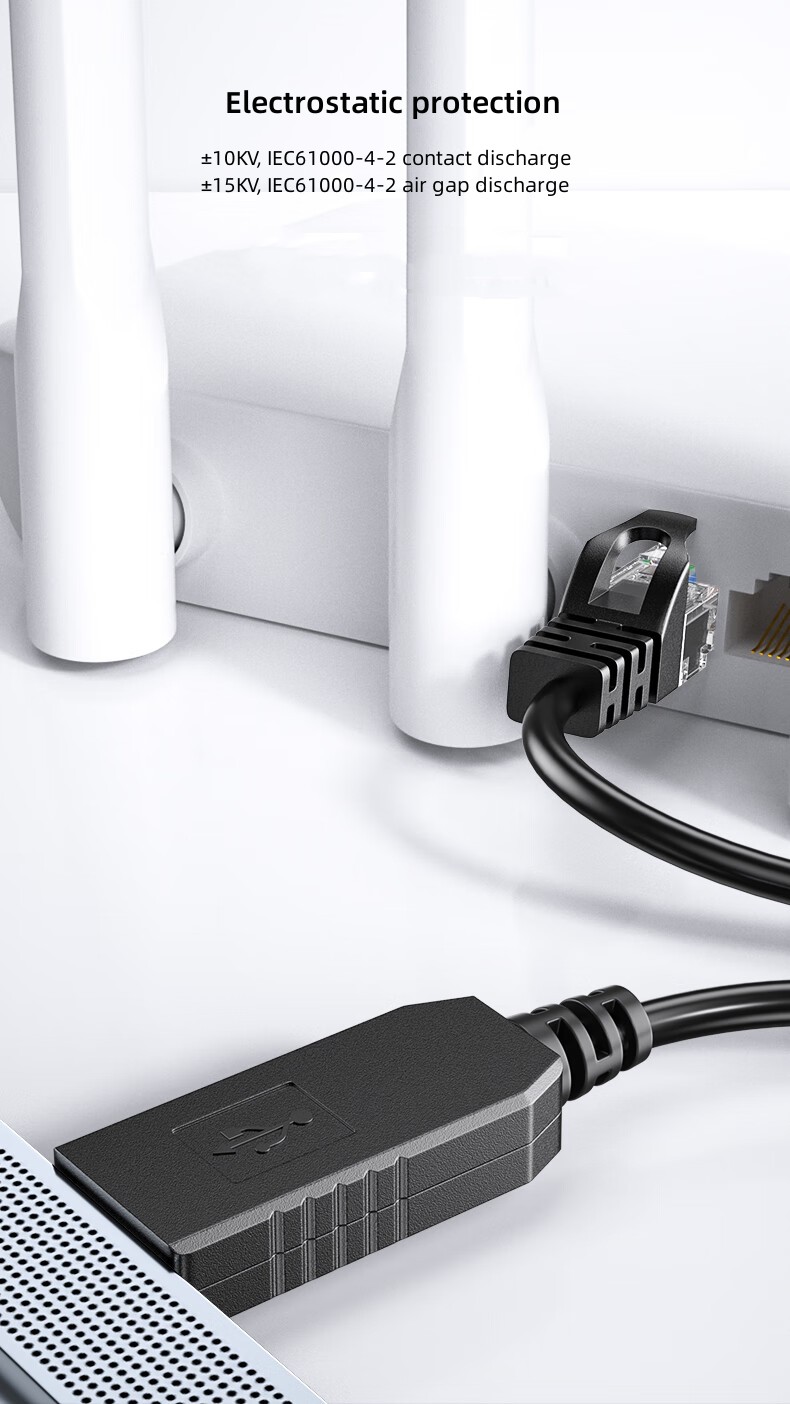

Electrostatic protection
±10KV, IEC61000-4-2 contact discharge
±15KV, IEC61000-4-2 air gap discharge

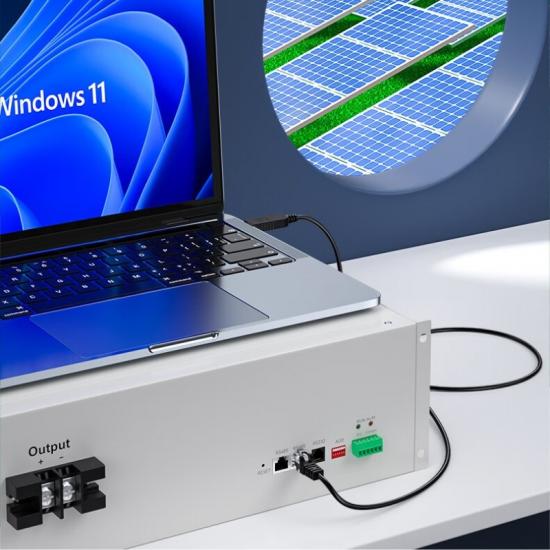

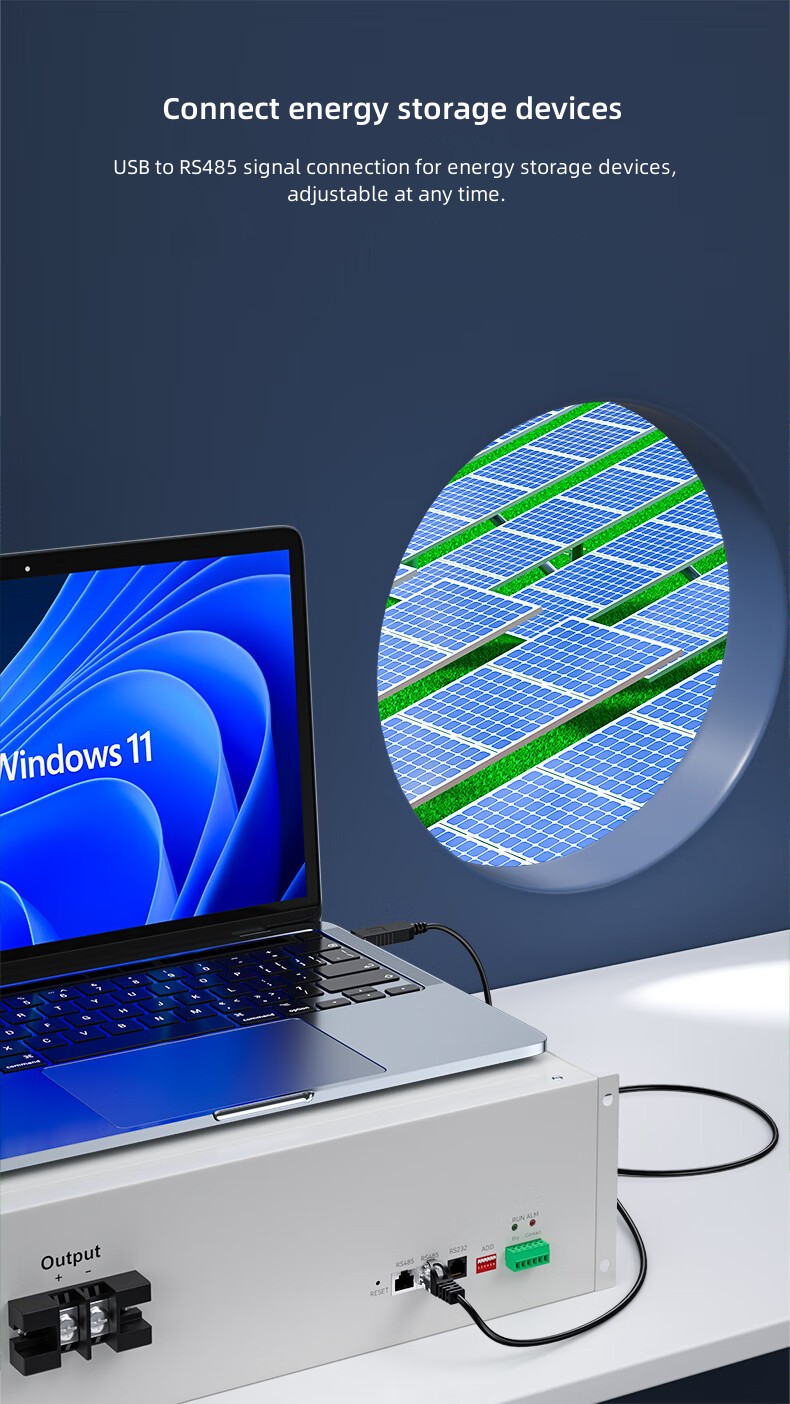

Connect energy storage devices
USB to RS485 signal connection for energy storage devices, adjustable at any time.

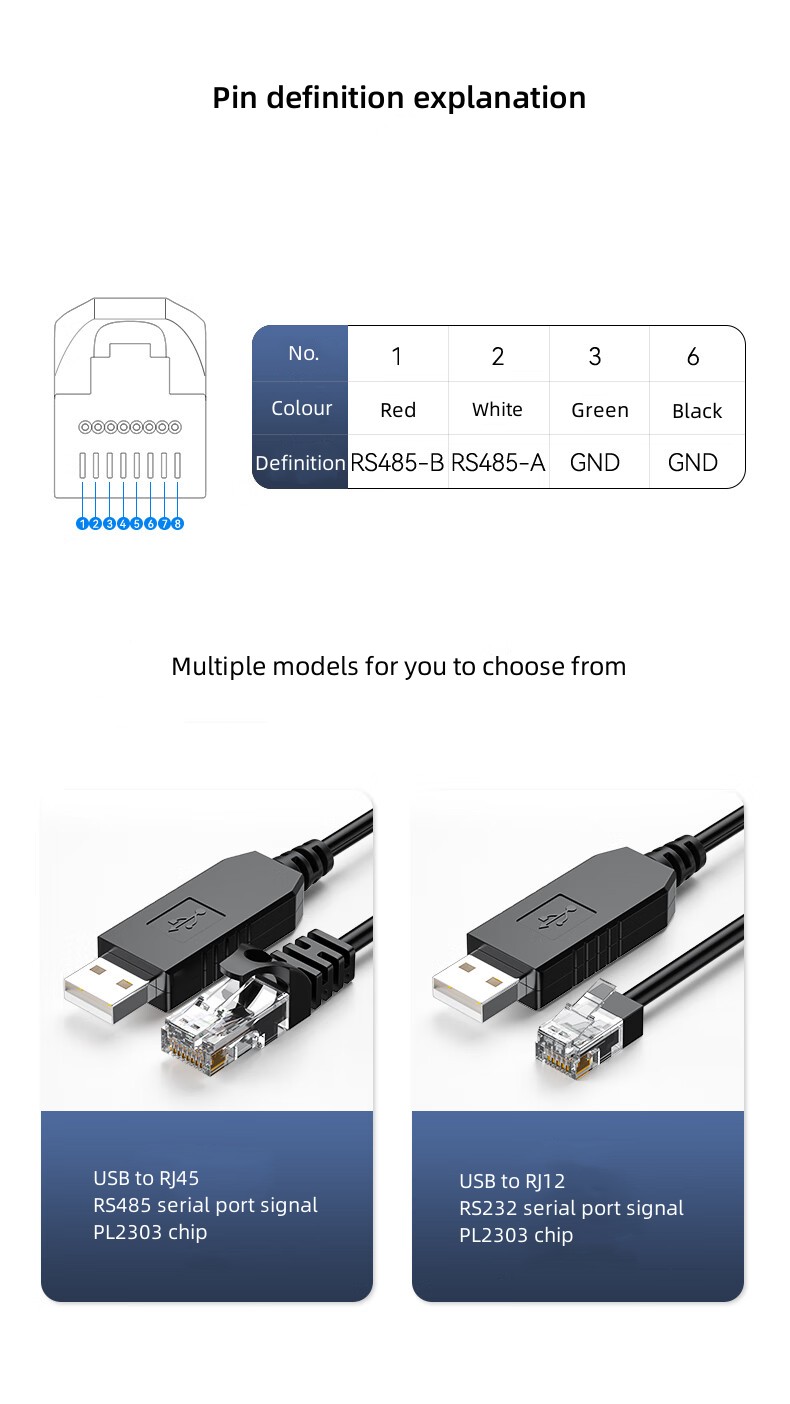

Pin definition explanation

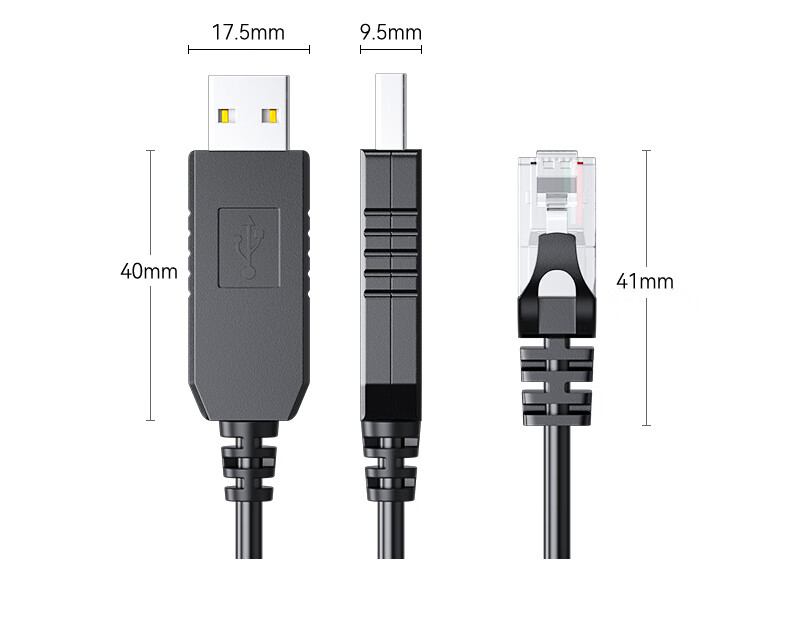

Ⅲ. Product Size
PS: The following dimensions are manually measured and may have minor errors.
Ⅳ. Product Packaging
