DTECH FTDI USB to TTL Serial 3.3V Adapter Cable FT232RL Chip 6ft 1.8M Black TX RX Signal 4 Pin 0.1 inch Pitch Female Socket Windows 10 8 7 XP Vista

6 ft FTDI USB to TTL serial adapter 3.3V (with 4 pin 0.1” pitch female header socket) connects devices with 3.3 V logic level UART signals interface to a laptop via USB port

Product Origin:
China
Brand:
DTECH
Item NO.:
DT-6553
Shipping Port:
guangzhou/shenzhen
Color:
as picture
Payment:
T/T

Product Details

About this item

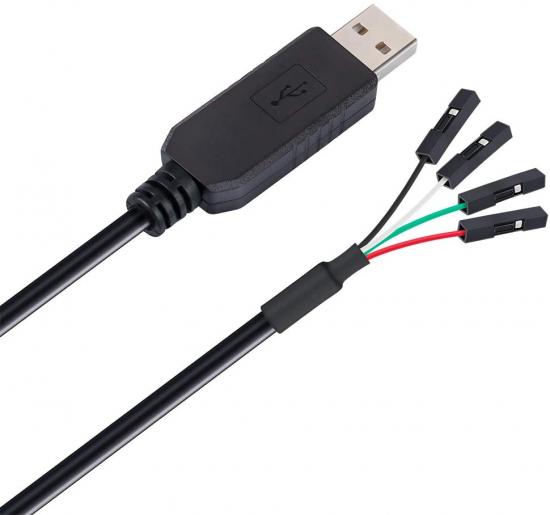

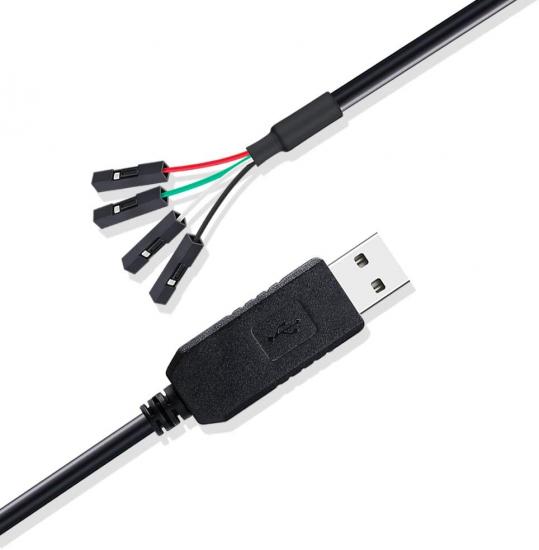

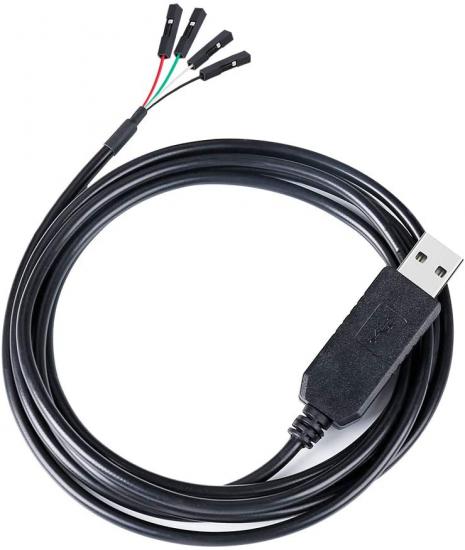

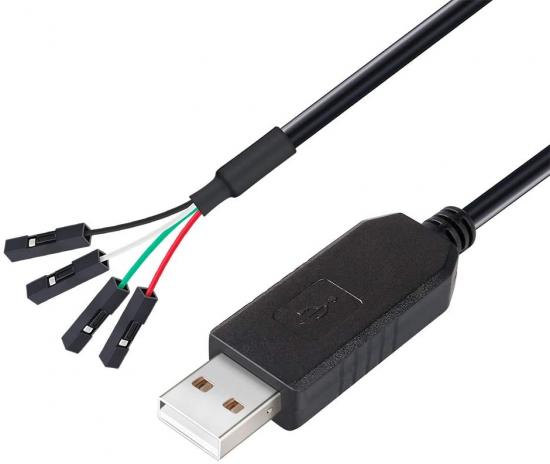

· 6 ft FTDI USB to TTL serial adapter 3.3V (with 4 pin 0.1” pitch female header socket) connects devices with 3.3 V logic level UART signals interface to a laptop via USB port

· A genuine FTDI FT232RL chip module is housed in USB 2.0 type A male terminal for wider compatibility and supports reliable data transfer rates

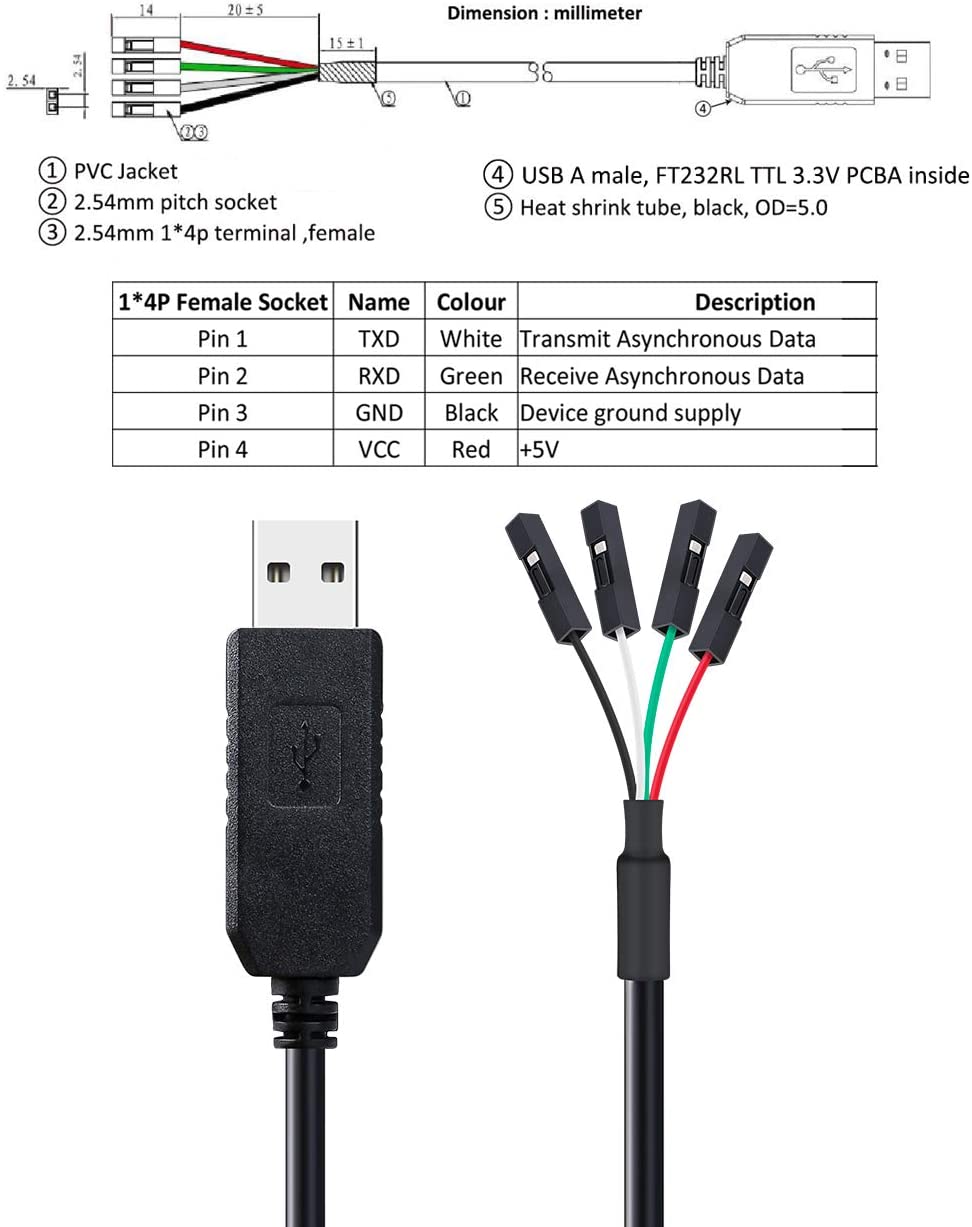

· 6 feet USB to TTL serial cable 3V3 (4 way output flying leads ) provides access to UART (transmit) Tx, (receive) Rx, VCC (5V) and GND

· FT232 FTDI chipset on the PCB board has configurable internal EEPROM and UART signals can be individually inverted by configuring the EEPROM

· 4 pin TTL to USB converter cord is compatible with Windows 10, 8, 8.1, 7 (32, 64-bit), 2008/XP/Vista/CE; ideal USB 2.0 debug cord for Vendor ID re-write, router, GPS, set top box, transmitter, flash firmware on hard drive, etc.

Applications:
Upgrading Legacy Peripherals to USB
Interface Microcontroller UART or I/O, FPGA / PLD to USB
Industrial Control
USB Software / Hardware Encryption Dongles
...
Features

- The I/O pins of the wire are configured to operate at 3.3V logic level - Entire USB protocol handled by the electronics in the cable;
- UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity;
- Data transfer rates from 300 to 3M baud rate at TTL levels;
- Internal EEPROM with users writable area; - Supply voltage comes from USB bus, no external supply required;
- UHCI / OHCI / EHCI host controller compatible
Specific
Interface A: USB 2.0 type A Male Port
Interface B: 4 pin Female Socket flying leads
Chip: FTDI FT232RL chipset
Supports Windows 2008, XP and XP 64-bit, Vista and XP 64-bit, CE 4.2, 5.0 and 6.0; Windows 7, 8, 8.1, 10 (32 and 64-bit);
Cable Colour: Black
Wire Length: 1.8 Meter
