DTECH DT-7056 HDMI 4X1 Quad multi-viewer with IR

DTECH DT-7056 HDMI 4X1 Quad multi-viewer with IR supports multi-channe high-definition audio & video signal as single image that  is displayed in the same device or a variety of video  segmentation modes.The audio signal of corresponding can be transmitted without delay when segmenting images. Supporting 1080P@60Hz resolution and HDMI signal.It can be finished one-to-one video channels by buttons and infrared remote controller.With stable transmission signal, simple operation and etc.,it is suitable for video conferencing systems, monitoring, hypermarkets

  • Product Origin:

    guangzhou
  • Brand:

    DTECH
  • Shipping Port:

    guangzhou/shenzhen
  • Color:

    grey
  • Lead Time:

    1-14days
Product Details

DTECH DT-7056 HDMI 4X1 Quad multi-viewer with IR

Feature:

1. Support 4-way HDMI videos displayed on one monitor.

2. Supporting HDMI resolution up to 1080p@60Hz

3. Four-way HDMI signal Supports full screen switch at the same resolution .

4. The coaxial digital audio signal of 5.1 channels and image can be played.

5. The signal source can be switched channel or adjusted volume by IR echo.

6. The panel button,IR remote control can be finished to switch by one-to-one.

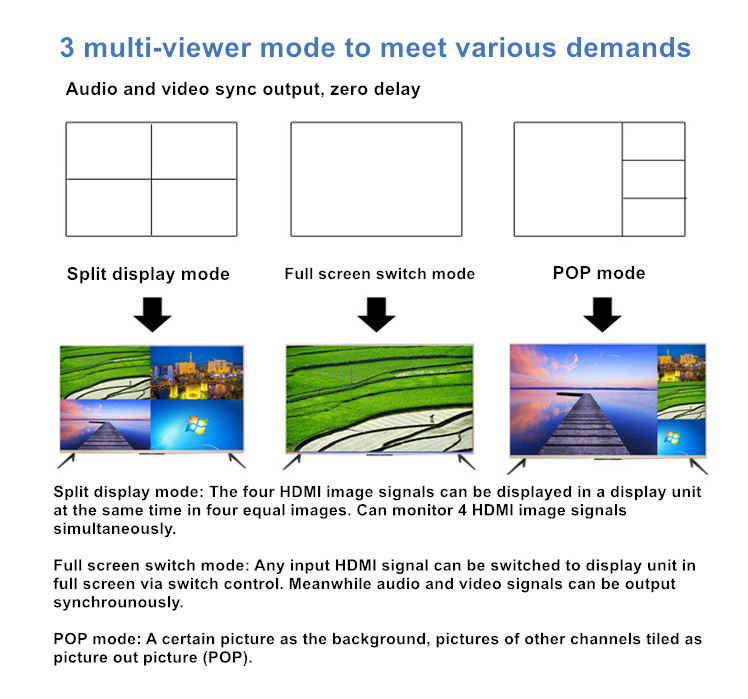

7. With Several model of segmentation modes,it Can be selected by panel segmentation mode button.

Details:

Application:
