HDMI Extender Product Solution: Break Through Distance Limitations and Enjoy High-Definition Vision

Driven by the wave of digitalization, the demand for 4K/8K ultra-high-definition video and multi-channel audio transmission has permeated diverse fields, including home entertainment, commercial displays, and education and training. However, due to the physical limitations of traditional HDMI cables, transmission distances typically do not exceed 15 meters. Beyond this, signal degradation, image freezes, and color distortion can easily occur. HDMI Extenders, leveraging specialized signal processing technology, overcome these distance limitations and become a core solution for high-definition transmission.

1. Core Product Types and Adaptation Scenarios

1. Network cable transmission: cost-effective choice

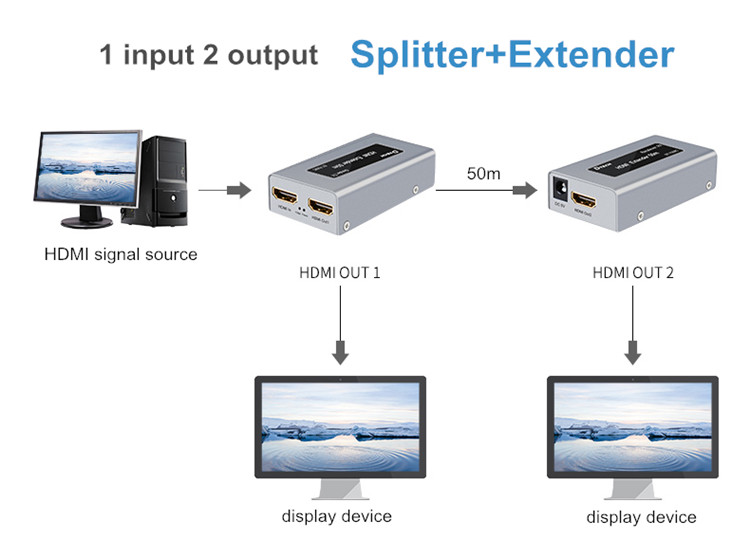

These products utilize CAT5e/CAT6/CAT7 network cables for transmission, offering both cost-effectiveness and practicality. Basic models can transmit 1080P signals up to 120 meters, while high-performance models, such as a certain brand's 4K@60Hz extender kit, support uncompressed transmission up to 80 meters. They also feature a local transmitter loopback function, enabling simultaneous monitoring at the signal source to prevent transmission glitches. They support direct one-to-one connections and, when combined with a Gigabit switch, can be expanded to one-to-many transmission (connecting up to 32 receivers). A built-in infrared return module allows users to control transmitter devices (such as a Blu-ray player in a study) from a remote control at the receiving end (e.g., next to the living room TV), making them ideal for home entertainment and small to medium-sized meeting rooms.

2. Fiber optic transmission: Ultra-long distance and anti-interference weapon

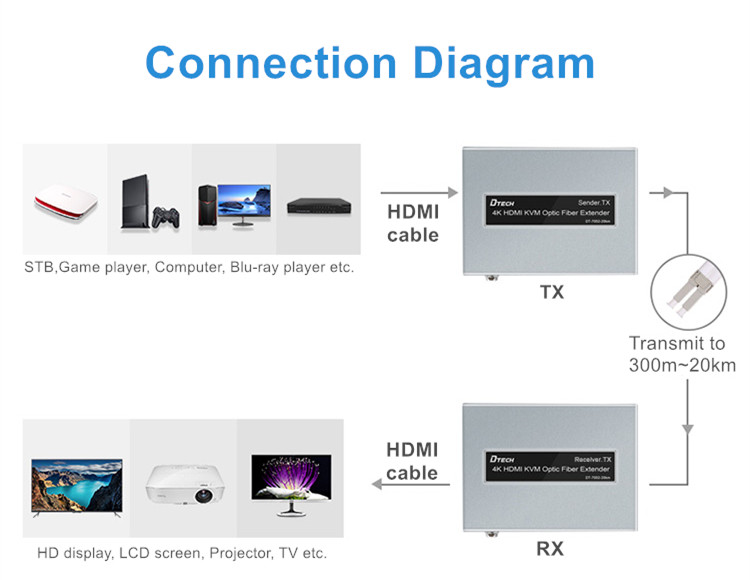

Using single-mode or multimode fiber as the transmission medium completely eliminates electromagnetic interference and is suitable for complex environments. Single-mode fiber models offer outstanding transmission capabilities. A certain brand's 4K@60Hz fiber extender, using an LC interface, can achieve signal transmission distances up to 40 km. It supports high-definition technologies such as HDR10+ and Dolby Vision, and features RS-232 transparent transmission, enabling remote control of cameras, large screens, and other devices. It is widely used in long-distance scenarios such as smart city surveillance (transmitting camera signals across regions), rail transit (transmitting train monitoring signals to control centers), and broadcast television (transmitting outdoor live broadcast signals back to the studio).

3. Wireless transmission: Flexible deployment option

No wiring required, wireless transmission via the 5.8GHz/60GHz frequency bands is suitable for temporary scenarios. Mainstream models support 1080P signal transmission up to 30 meters, while high-end models can achieve 4K@30Hz signal transmission up to 50 meters. Some models also support one-to-two receiver connections (e.g., connecting a projector and TV simultaneously in a conference room). However, please note that walls and metal obstacles can weaken the signal, so it is recommended for use in open spaces. This product is suitable for temporary exhibitions and temporary multi-screen sharing at home.

2. Selection Key and Practical Application Cases

1. Three factors for selection

• Distance priority: wireless within 30 meters, network cable between 30-120 meters, and fiber optic for distances over 120 meters;

• Image quality matching: 4K@60Hz signals must be supported by products that support HDMI 2.0 and above to avoid "degradation of high-quality signals during transmission";

• Functional adaptation: RS-232 transparent transmission is required for surveillance scenarios, infrared return transmission is preferred for home scenarios, and switch expansion capabilities are emphasized for multi-device scenarios.

2. Typical application case: a shopping mall multimedia system

A large shopping mall needed to deploy 20 LCD advertising screens on floors 1-5, with the signal source concentrated in the top-floor control room (approximately 60 meters from the furthest screen). The solution employed a network cable extender: a gigabit switch in the control room connected 20 transmitters. Each floor connected its corresponding receiver to the advertising screen via a network cable, with infrared return transmission enabled. This allowed staff, standing at any screen on any floor, to update the content in the control room using a remote control. The entire solution cost only one-third of traditional HDMI cables, and adding additional screens later simply required expanding the switch ports, providing exceptional flexibility.

HDMI Extenders offer a differentiated product matrix, covering diverse distances and scenarios, addressing traditional transmission pain points while reducing deployment costs. To maximize their HD transmission value, choose the right product based on your specific scenario.
