DT-7358 VGA splitter is the perfect solution for anyone who needs to send one video signal to 8 displays.
Brand:
DTECHShipping Port:
SHENZHEN/GUANGZHOUColor:
GRAYLead Time:
7-14 daysDT-7358 DTECH 1 TO 8 350MHZ VGA SPLITTER
Feature:
1. VGA splitter, 1x8, 1 input 8 output, support usb power supply and AC power supply.
2. VGA Bandwidth 350MHz, Support VGA, XGA, SVGA, UXGA video signal, support VGA resolution up to 1920*1440@60Hz
3. Bandwidth of video driver: 350MHz-3dB
4. Input & Output impedance: 75 Ω
5. support VGA resolution:VGA, SVGA, XGA, SXGA,WXGA,UXGA
6. Input at most 10m, output less than 25m( use AWG24 standard 3+6 VGA cable)

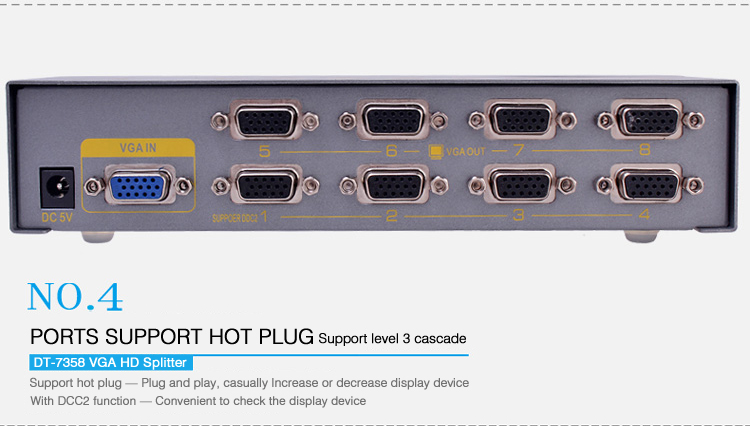

7. Each output signal port supports three-level cascade
8. High-grade metal shell design, perfect hand feeling
Previous :
DT-7352 1 TO 2 350MHZ VGA SPLITTERNext :
DT-7252 1 TO 2 250MHZ VGA SPLITTER
