How to Choose a DIN Rail Industrial Ethernet Switch: A Practical Engineering Guide

Choosing an industrial Ethernet switch for a control cabinet requires more than selecting the number of ports.

The correct model depends on the connected devices, Ethernet speed, available DC power, ambient temperature, installation method and network architecture.

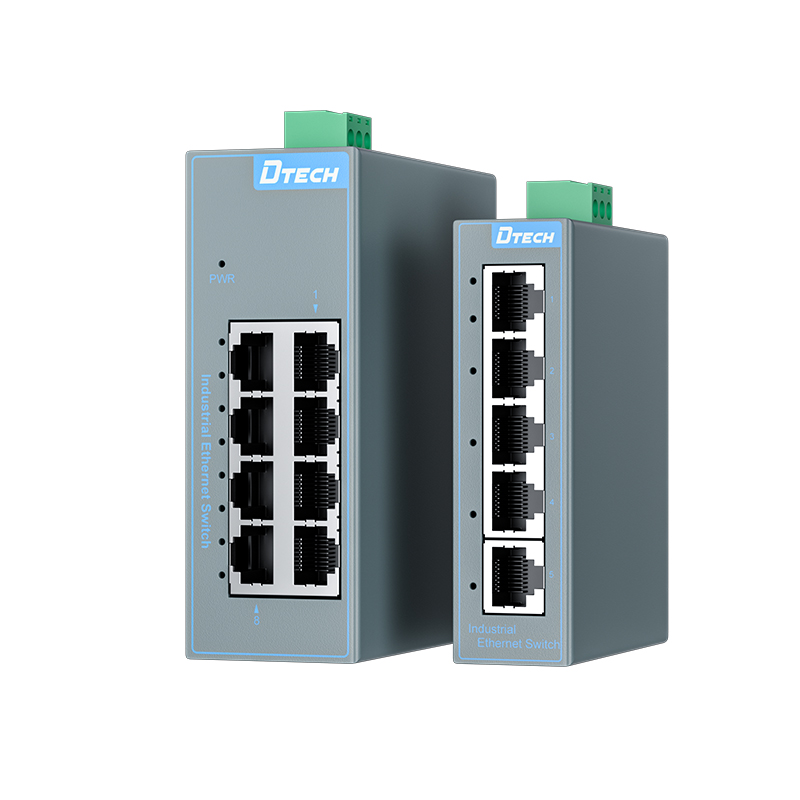

This guide uses the DTECH SW1000 Series as a practical example.

Step 1: Determine How Many Ethernet Ports You Need

The SW1000 family provides:

5-port models

and

8-port models.

The product specification lists both Fast Ethernet and Gigabit configurations.

Example

A compact cabinet may contain:

PLC
↓
HMI
↓
Industrial Camera
↓
Industrial PC
↓
Uplink

In this type of configuration, the engineer first counts the required Ethernet connections before selecting the switch.

Do not choose the port count based only on the number of devices today. Consider whether additional Ethernet equipment may be added during the equipment lifecycle.

Step 2: Decide Between Fast Ethernet and Gigabit

The SW1000 family provides two network-speed options.

FT Series

10/100 Mbps.

GT Series

10/100/1000 Mbps.

The 5-port and 8-port Gigabit models provide 10 Gbps and 16 Gbps switching capacity respectively.

Engineering question

Do the connected devices actually support Gigabit Ethernet?

If they do not, selecting a Gigabit switch does not automatically make the connected devices operate at Gigabit speed.

The switch should therefore be selected as part of the entire network architecture.

Step 3: Check the DC Power Architecture

The SW1000 supports:

DC 12–52V

The documentation identifies 12V, 24V and 48V DC applications within this range.

This is useful when the industrial system already uses compatible DC power.

However, the installation manual also provides an important wiring warning: V+ and V- should not be reversed. The grounding connection should also be reliably connected according to the installation guidance.

Step 4: Check Operating Temperature — Not Storage Temperature

This is one of the most important selection checks.

For SW1000:

Operating: -30°C to +70°C

Storage: -40°C to +80°C.

These values describe different conditions.

If the switch is expected to operate at -35°C, for example, the documented operating range does not support that condition.

That distinction should be made before product selection.

Step 5: Check the Installation Method

The SW1000 uses:

DIN 35 Rail

and

Fanless Natural Cooling.

It also has an IP40 enclosure rating.

This makes the installation format suitable for compatible control cabinets and equipment enclosures.

Step 6: Check Electrical Protection

The documented protection specifications include:
