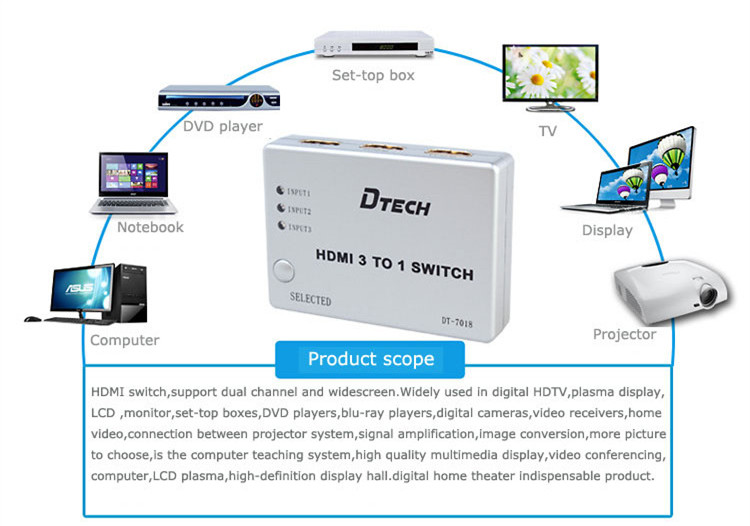

This mini switcher is a high performance mini HDMI switcher. This switcher not only has the function of key switching, but also has the function of infrared remote control switching and intelligent switching. That is to say, as long as the signal source device power switch, the converter will automatically switch. It is capable of sending high-definition video (1080P resolution) and digital audio transmissions from either signal source port to the display. All input device source ports can be matched with HD video ports, HD-DVD,SKY-STB,PS3,Xbox6, etc. Compatible. The switcher output port is capable of transmitting HD audio/video signals to the HD display. Used for digital high-definition TV, plasma display, liquid crystal display, set top box, DVD player, Blu-ray player, digital camera, audio/video receiving device, home video, projector system connection, signal amplification, multi screen conversion, multi screen selection.
Product Origin:
chinaBrand:
DTECHItem NO.:
DT-7018（MS）Shipping Port:
guangzhou/shenzhenConnection introduction

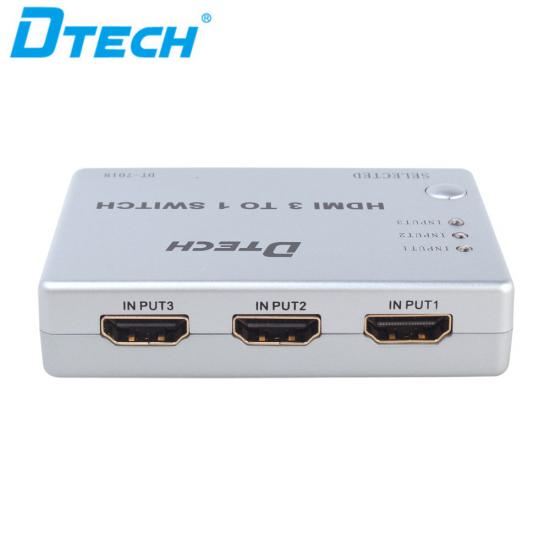

1. Connect HDMI output of various equipment to“IN PUT” port of switch.

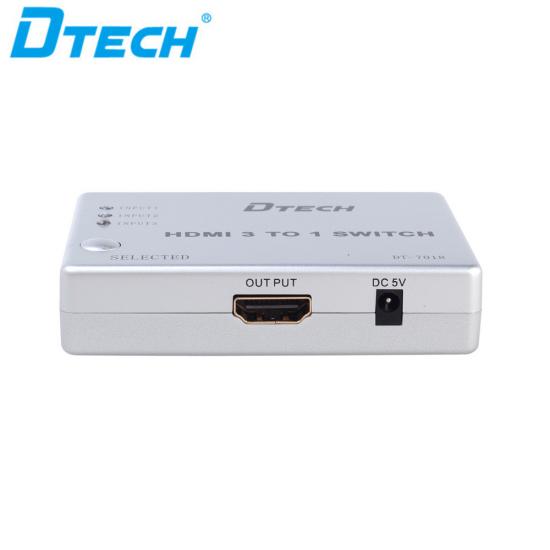

2. Connect“OUT PUT” output of switch to HDMI port of TV, and switch TV’s signal port to the corresponding HDMI port.
3. If you need infrared remote control, insert the PIR Sensor into ” IR” port, for remote operation convenience.
Ⅲ. Basic parameters
1. The HDMI1.3 version signal input switched arbitrarily to a display device which support HDMI1.3 version signal in2. Supports 3D signal, Supports HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
3. Supports Blu-ray DVD24/50/60fs/HD-DVD/xvYcc
4. Use AWG26 HDMI 1.3 version standard cable, the output transmission distance can be up to 20meters.

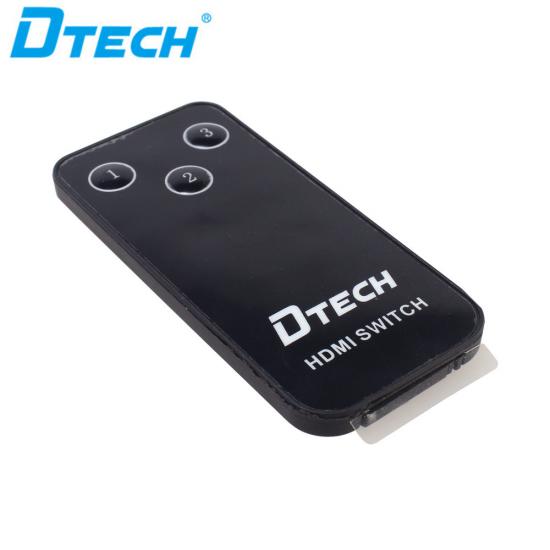

5. Input port can be switched via infrared remote control, can also directly select button to switch the signal source according to signal source.
6. Can automatically skip the disconnected signal source
7. The maximum transmission bandwidth: 250MHz
8. The maximum transmission rate: 7.5Gbps
9. Operating temperature range: -35° C to +85 ° C
10. Product Size: 82*59*19mm
11 .Weight: 54.5g
Packaging and Accessories
1. HDMI switch 1pc
2. HDMI connection line 1pc
3. 5V/1A power adapter 1pc (please use the 5V/1A power adapter provided by our company, or it may cause damages to the product, which will invalidate the warranty)
4. Remote control 1pc 3.5 IR receiver head line 1pc
NOTE: Unpacking Check your accessories, if accessories incomplete, please ask your supplier.
