Ⅰ. Product Introduction

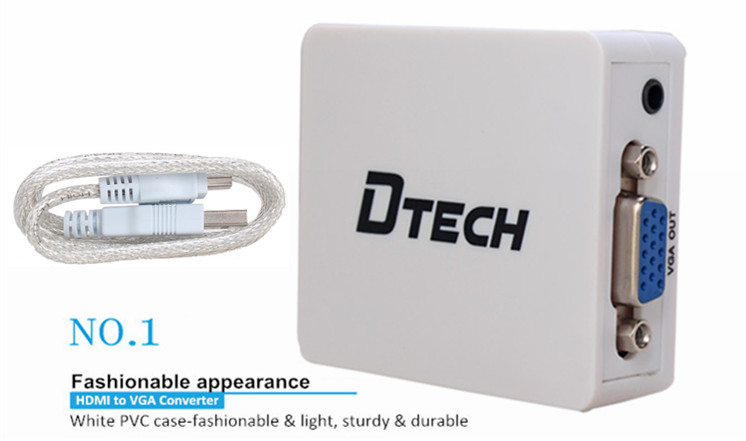

HDMI to VGA signal converter, can convert HDMI digital signal to VGA analog video signal and 3.5 mm stereo audio signals, high-definition HDMI signal is converted into analog audio and video signal available for common monitor, projectors and others , easy connection with VGA interface display, projector, etc.

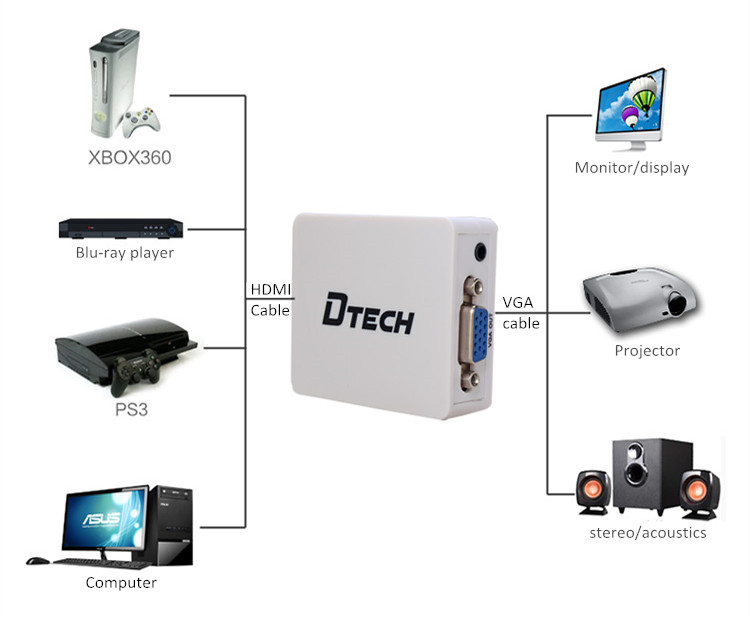

Ⅱ. Connection instructions
1. Connect The HDMI cable to the “HDMI IN" HD DVD and other equipment;
2. Connect the VGA cable and 3.5 mm audio cable to "VGA OUT" related devices;
3. If power supply is insufficient, can be externally powered through the Mini USB power supply interface;
