DTECH DT-6518 AV TO HDMI converter

Contact Now

Download PDF

Product Details

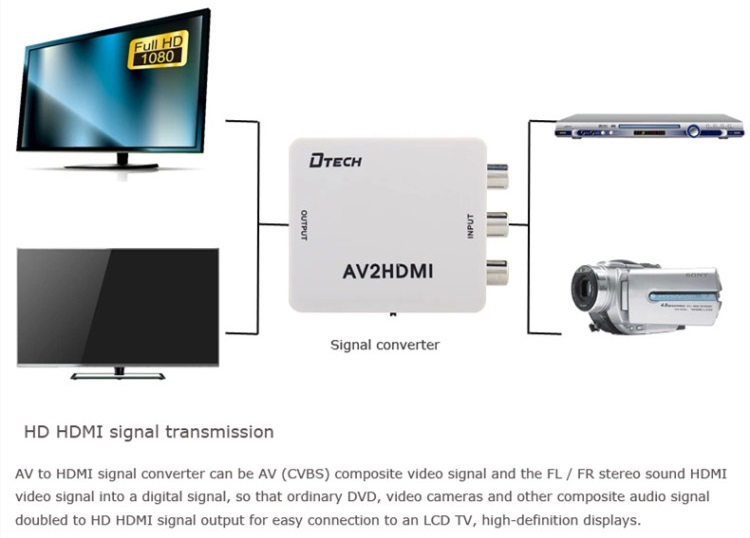

DTECH DT-6518 AV TO HDMI converter

Feature:

1、 Output HDMI Signal :480p(60Hz)、576p(50Hz)、720p(50Hz/60Hz)、1080i(50Hz/60Hz)、1080p(50Hz/60Hz)；

2、Output /Input Signal:One set AV Input,one set stereo audio Input,one set HDMI Output.

3、Input Video System :PAL 、NTSC

4、Output Video Signal Impedance Matching :75Ω

5、Working Condition and Temperature:-25℃～75℃；

6、Working Condition Humidity:10%-60%

7、Product Dimension:66*55*20mm(Length Width Height)

8、Max working Current:750mA
