DTECH USB to TTL Serial Adapter 3.3V Debug Cable TX RX Signal 4 Pin Female Socket PL2303 Prolific Chip Windows 10 8 7 XP Vista
Product Origin:
ChinaBrand:
DTECHItem NO.:
DT-6553Shipping Port:
guangzhou/shenzhenColor:
as picturePayment:
T/T1. Description

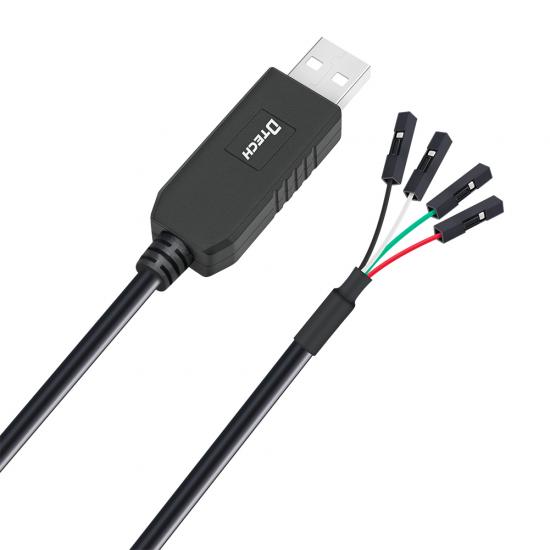

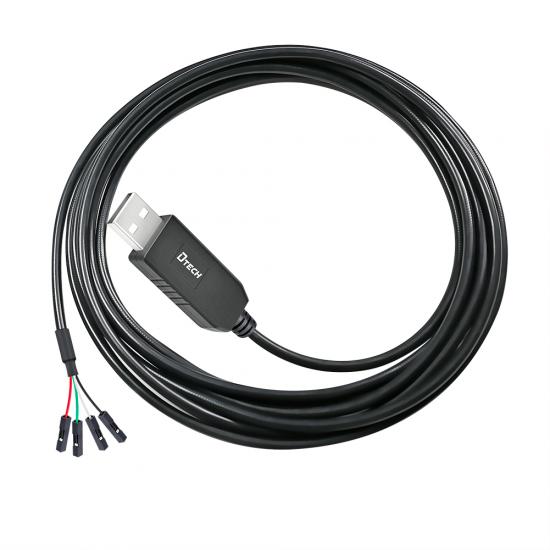

DTECH USB to TTL serial UART converter cable provides a fast, simple way to connect devices with a 3.3V TTL level serial interface to USB port. It integrates PROLIFIC PL2303TA USB to serial UART interface IC device.

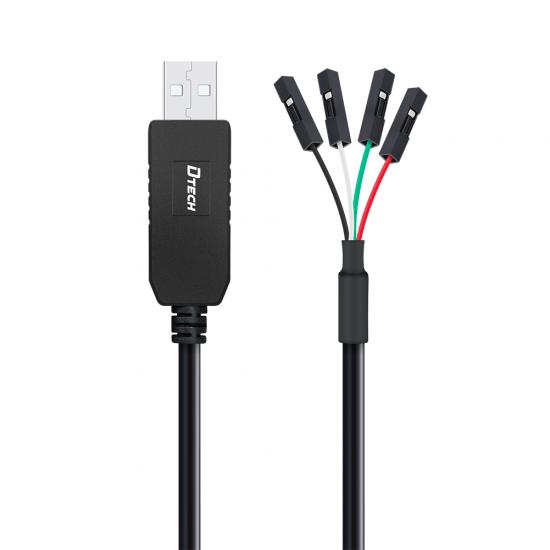

The PL2303TA chip used is housed within the USB A connector. The cable is terminated with a 4 pin 0.1 inch pitch header socket which provides access to the transmit (Tx), receive (Rx), VCC and GND connections.
The USB serial converter cable required USB driver, available from prolific website (https://prolificusa.com/product/pl2303ta-usb-serial-uart-bridge-controller/), which are used to make the PL2303TA on the PCB board appear as virtual COM port (VCP driver). It allows users to communicate with the USB interface via a standard PC serial emulation port.
2. Features
l USB 2.0 full speed, back compatible with USB1.1, USB1.0
l PL2303TA chip on PCB board
l PCB board pinout (USB end): TXD, RXD, CTS, RTS, VCC, GND
l 4 pins wired (2.54mm header end): TXD, RXD, VCC, GND
l VCC supports 3.3V and 5V supply output
l UART interface supports 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
l Serial data transfer rates up to 3M
l Internal EEPROM with users writable area
l Data signal levels: +3.3v or +5v optional
l Support VID, PID and other reprogrammed function
l USB bus powered, no extra power required
l Low PC USB bandwidth consumption
l Range -104℉ to +185℉operation temperature
3. Driver support
l Windows 10, 8, 8.1, 7 32, 64-bit
l Windows XP and XP 64-bit
l Windows Vista and Vista 64-bit
l Windows 2000SP4 & Server2003
l Windows Server 2016, Server2008, 2008R2, 2012, 2012R2
l Auto-download driver via Windows Update (Windows 7, 8.1, 10)
l Windows 98 and Windows ME driver technical support is discontinued
l Installer Language Support: English (default), Chinese (Traditional and Simplified), Japanese
l For Prolific USB VID_067B&PID_2303 and PID_2304 Only
l Run PL2303 Check-chip Version tool program in Windows XP/Vista/7 to check chip version
